场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TK62N60W,S1VFMOSFET N-CH 600V 61.8A TO247 Toshiba Semiconductor and Storage |
8,182 | - |
|
数据手册 |
DTMOSIV | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 61.8A (Ta) | 10V | 40mOhm @ 30.9A, 10V | 3.7V @ 3.1mA | 180 nC @ 10 V | ±30V | 6500 pF @ 300 V | - | 400W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247 |
|
TK100L60W,VQMOSFET N-CH 600V 100A TO3P Toshiba Semiconductor and Storage |
4,395 | - |
|
数据手册 |
DTMOSIV | TO-3PL | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 100A (Tc) | 10V | 18mOhm @ 50A, 10V | 3.7V @ 5mA | 360 nC @ 10 V | ±30V | 15000 pF @ 30 V | - | 797W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(L) |
|
SSM6J213FE(TE85L,FMOSFET P CH 20V 2.6A ES6 Toshiba Semiconductor and Storage |
8,793 | - |
|
数据手册 |
U-MOSVI | SOT-563, SOT-666 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.6A (Ta) | 1.5V, 4.5V | 103mOhm @ 1.5A, 4.5V | 1V @ 1mA | 4.7 nC @ 4.5 V | ±8V | 290 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | - | - | Surface Mount | ES6 |
|

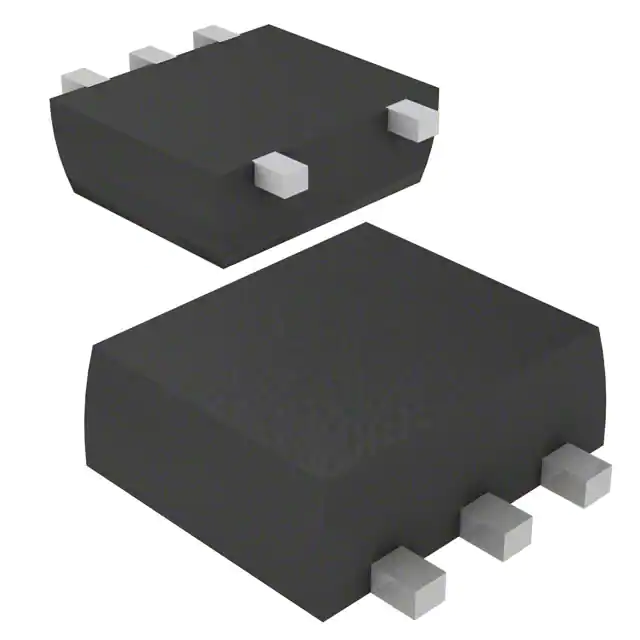

SSM5H08TU,LFMOSFET N-CH 20V 1.5A UFV Toshiba Semiconductor and Storage |
2,128 | - |
|
数据手册 |
U-MOSIII | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 2.5V, 4V | 160mOhm @ 750mA, 4V | 1.1V @ 100µA | - | ±12V | 125 pF @ 10 V | Schottky Diode (Isolated) | 500mW (Ta) | 150°C | - | - | Surface Mount | UFV |
|
TK2K2A60F,S4XX35 PB-F POWER MOSFET TRANSISTOR Toshiba Semiconductor and Storage |
5,328 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.5A (Ta) | 10V | 2.2Ohm @ 1.8A, 10V | 4V @ 350µA | 13 nC @ 10 V | ±30V | 450 pF @ 300 V | - | 30W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
|
TK1K9A60F,S4XMOSFET N-CH 600V 3.7A TO220SIS Toshiba Semiconductor and Storage |
4,302 | - |
|
数据手册 |
U-MOSIX | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.7A (Ta) | 10V | 1.9Ohm @ 1.9A, 10V | 4V @ 400µA | 14 nC @ 10 V | ±30V | 490 pF @ 300 V | - | 30W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
SSM6J212FE,LFMOSFET P-CH 20V 4A ES6 Toshiba Semiconductor and Storage |
7,347 | - |
|
数据手册 |
U-MOSVI | SOT-563, SOT-666 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 4.5V | 40.7mOhm @ 3A, 4.5V | 1V @ 1mA | 14.1 nC @ 4.5 V | ±8V | 970 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | - | - | Surface Mount | ES6 |
|
SSM3J140TU,LXHFSMOS P-CH VDSS:-20V VGSS:-8/+6V Toshiba Semiconductor and Storage |
5,613 | - |
|
数据手册 |
U-MOSVI | 3-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.4A (Ta) | 1.5V, 4.5V | 25.8mOhm @ 4A, 4.5V | 1V @ 1mA | 24.8 nC @ 4.5 V | +6V, -8V | 1800 pF @ 10 V | - | 500mW (Ta) | 150°C | Automotive | AEC-Q101 | Surface Mount | UFM |
|
TK58E06N1,S1XMOSFET N-CH 60V 58A TO220 Toshiba Semiconductor and Storage |
8,657 | - |
|
数据手册 |
U-MOSVIII-H | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 58A (Ta) | 10V | 5.4mOhm @ 29A, 10V | 4V @ 500µA | 46 nC @ 10 V | ±20V | 3400 pF @ 30 V | - | 110W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TK34A10N1,S4XMOSFET N-CH 100V 34A TO220SIS Toshiba Semiconductor and Storage |
6,833 | - |
|
数据手册 |
U-MOSVIII-H | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 34A (Tc) | 10V | 9.5mOhm @ 17A, 10V | 4V @ 500µA | 38 nC @ 10 V | ±20V | 2600 pF @ 50 V | - | 35W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220SIS |
