散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

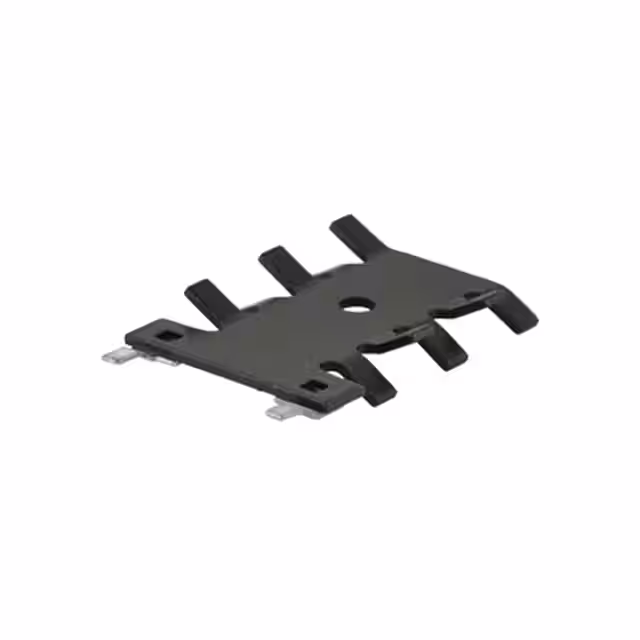

HSS-B20-043H-01HEATSINK TO-220 2.9W ALUMINUM Same Sky (Formerly CUI Devices) |
3,626 |
|
数据手册 |
HSS | Box | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Angled Fins | 0.211" (5.35mm) | 0.874" (22.20mm) | - | 1.250" (31.75mm) | 2.9W @ 75°C | 8.18°C/W @ 200 LFM | 26.13°C/W | Aluminum | Black Anodized |
|
HSS-B20-NP-13HEATSINK TO-220 3.9W ALUMINUM Same Sky (Formerly CUI Devices) |
2,207 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.750" (44.45mm) | - | 0.375" (9.52mm) | 3.9W @ 75°C | 5.88°C/W @ 200 LFM | 19.22°C/W | Aluminum | Black Anodized |
|
HSS-B20-NP-02HEATSINK TO-220 3.6W ALUMINUM Same Sky (Formerly CUI Devices) |
3,159 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | - | Rectangular, Fins | 0.748" (19.00mm) | 0.830" (21.08mm) | - | 0.394" (10.00mm) | 3.6W @ 75°C | 5.39°C/W @ 200 LFM | 20.59°C/W | Aluminum | Black Anodized |
|

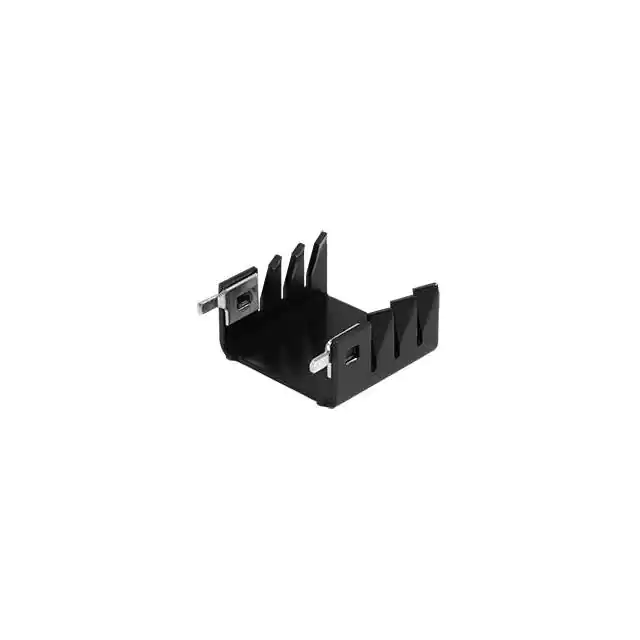

HSS21-B20-P53HEAT SINK, STAMPING, TO-218/TO-2 Same Sky (Formerly CUI Devices) |
4,951 |
|
数据手册 |
HSS | Box | Active | Board Level | TO-218, TO-220 | PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 0.961" (24.40mm) | - | 0.500" (12.70mm) | 3.58W @ 75°C | 10.10°C/W @ 200 LFM | 20.93°C/W | Aluminum Alloy | Black Anodized |
|
HSS-B20-NP-14HEATSINK TO-220 4.4W ALUMINUM Same Sky (Formerly CUI Devices) |
4,992 |
|
数据手册 |
HSS | Bag | Active | Top Mount | TO-220 | Clip and Board Mounts | Rectangular, Fins | 0.375" (9.53mm) | 0.985" (25.00mm) | - | 0.961" (24.40mm) | 4.4W @ 75°C | 4.51°C/W @ 200 LFM | 17.05°C/W | Aluminum | Black Anodized |
|
HSS-B20-0953HHEATSINK TO-220 4W ALUMINUM Same Sky (Formerly CUI Devices) |
4,359 |
|
数据手册 |
HSS | Box | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | 4.0W @ 75°C | 5.01°C/W @ 200 LFM | 18.63°C/W | Aluminum | Black Anodized |
|

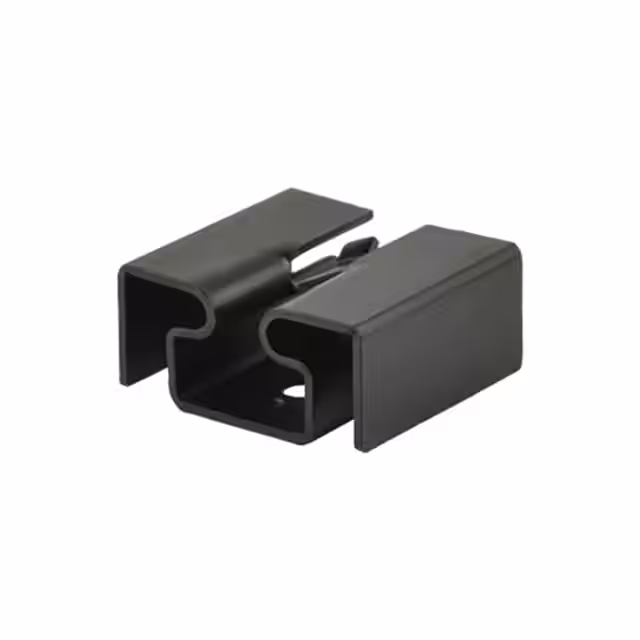

HSS-B20-097HHEATSINK TO-220 3.6W ALUMINUM Same Sky (Formerly CUI Devices) |
2,874 |
|
数据手册 |
HSS | Bag | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Fins | 0.394" (10.00mm) | 0.830" (21.08mm) | - | 0.748" (19.00mm) | 3.6W @ 75°C | 5.39°C/W @ 200 LFM | 20.59°C/W | Aluminum | Black Anodized |
|
HSE-B20250-040HHEAT SINK, EXTRUSION, TO-220, 25 Same Sky (Formerly CUI Devices) |
1,582 |
|
数据手册 |
HSE | Tray | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 0.984" (25.00mm) | 1.378" (35.00mm) | - | 0.492" (12.50mm) | 5.0W @ 75°C | 4.28°C/W @ 200 LFM | 15.00°C/W | Aluminum Alloy | Black Anodized |
|
HSS-C52-NP-SMT-TRHEAT SINK TO-252 COPPER Same Sky (Formerly CUI Devices) |
2,083 |
|
数据手册 |
HSS | Tape & Reel (TR) | Active | Top Mount | TO-252 (DPak) | - | Rectangular, Fins | 0.315" (8.00mm) | 0.900" (22.86mm) | - | 0.400" (10.16mm) | 2.1W @ 75°C | 10.05°C/W @ 200 LFM | 35.71°C/W | Copper | Tin |
|

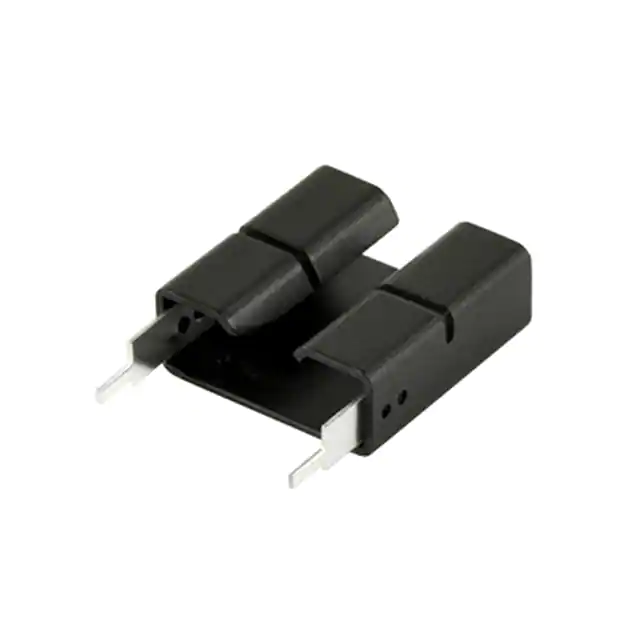

HSS-B20-085HHEATSINK TO-220 3.4W ALUMINUM Same Sky (Formerly CUI Devices) |
2,216 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 0.303" (7.70mm) | 0.775" (19.68mm) | - | 0.790" (20.00mm) | 3.4W @ 75°C | 7.46°C/W @ 200 LFM | 22.06°C/W | Aluminum | Black Anodized |
