散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSB24-252510HEAT SINK, BGA,25 X 25 X 10 MM Same Sky (Formerly CUI Devices) |
322 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | 4.14W @ 75°C | 6.50°C/W @ 200 LFM | 18.10°C/W | Aluminum Alloy | Black Anodized |
|
HSE04-251265-2HEAT SINK, EXTRUSION, TO-218/TO- Same Sky (Formerly CUI Devices) |
144 |
|
数据手册 |
HSE | Bag | Active | Top Mount | TO-218, TO-220 | Bolt On | Rectangular, Fins | 0.984" (25.00mm) | 0.472" (12.00mm) | - | 0.256" (6.50mm) | 2.47W @ 75°C | 16.60°C/W @ 200 LFM | 30.38°C/W | Aluminum Alloy | Black Anodized |
|
HSE-B20254-035HHEAT SINK, EXTRUSION, TO-220,25. Same Sky (Formerly CUI Devices) |
469 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 5.8W @ 75°C | 3.28°C/W @ 200 LFM | 12.93°C/W | Aluminum Alloy | Black Anodized |
|

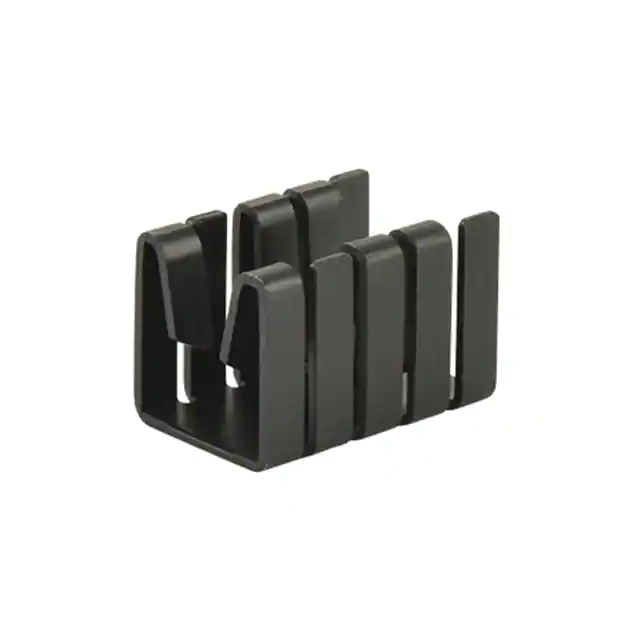

HSS-B20-NP-10HEATSINK TO-220 2.9W ALUMINUM Same Sky (Formerly CUI Devices) |
631 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | - | Rectangular, Fins | 0.748" (19.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | 2.9W @ 75°C | 7.24°C/W @ 200 LFM | 25.92°C/W | Aluminum | Black Anodized |
|
HSS-B20-NP-15HEATSINK TO-220 4.1W ALUMINUM Same Sky (Formerly CUI Devices) |
145 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | - | Rectangular, Fins | 0.625" (15.90mm) | 0.866" (22.00mm) | - | 0.440" (11.18mm) | 4.1W @ 75°C | 6.50°C/W @ 200 LFM | 18.34°C/W | Aluminum | Black Anodized |
|
HSS-B20-NP-07HEATSINK TO-220 2.3W ALUMINUM Same Sky (Formerly CUI Devices) |
121 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | - | Rectangular, Fins | 0.591" (15.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | 2.3W @ 75°C | 11.04°C/W @ 200 LFM | 33.28°C/W | Aluminum | Black Anodized |
|
HSS-B20-0508H-01SHEATSINK TO-220 4.7W ALUMINUM Same Sky (Formerly CUI Devices) |
656 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 0.500" (12.70mm) | 1.000" (25.40mm) | - | 1.180" (29.97mm) | 4.7W @ 75°C | 5.87°C/W @ 200 LFM | 15.83°C/W | Aluminum | Black Anodized |
|
HSS05-C20-SMT-TRHEAT SINK, STAMPING, TO-220, 12. Same Sky (Formerly CUI Devices) |
1,106 |
|
数据手册 |
HSS | Tape & Reel (TR) | Active | Board Level, Vertical | TO-220 | - | Rectangular | 1.031" (26.20mm) | 0.500" (12.70mm) | - | 0.390" (9.91mm) | 2.3W @ 75°C | 14.00°C/W @ 200 LFM | 32.69°C/W | Copper Alloy | Tin |
|
HSB42-353519PHEAT SINK, BGA, 35 X 35 X 19 MM, Same Sky (Formerly CUI Devices) |
4,637 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.748" (19.00mm) | 8.2W @ 75°C | 2.60°C/W @ 200 LFM | 9.16°C/W | Aluminum Alloy | Clean Finished |
|
|
HSB44-606010PHEAT SINK, BGA, 60 X 60 X 10 MM, Same Sky (Formerly CUI Devices) |
4,352 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | 7.4W @ 75°C | 2.70°C/W @ 200 LFM | 10.09°C/W | Aluminum Alloy | Clean Finished |
