散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSB32-232318HEAT SINK, BGA, 23 X 23 X 18 MM, Same Sky (Formerly CUI Devices) |
615 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.709" (18.00mm) | 5.9W @ 75°C | 4.40°C/W @ 200 LFM | 12.67°C/W | Aluminum Alloy | Black Anodized |
|
|
HSB33-272710HEAT SINK, BGA, 27 X 27 X 10 MM, Same Sky (Formerly CUI Devices) |
1,044 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.394" (10.00mm) | 4.4W @ 75°C | 5.30°C/W @ 200 LFM | 17.22°C/W | Aluminum Alloy | Black Anodized |
|
|
HSB41-303014PHEAT SINK, BGA, 30 X 30 X 10 MM, Same Sky (Formerly CUI Devices) |
410 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.551" (14.00mm) | 5.9W @ 75°C | 4.30°C/W @ 200 LFM | 12.63°C/W | Aluminum Alloy | Black Anodized |
|
|
HSB39-252509PHEAT SINK, BGA, 25 X 25 X 9 MM, Same Sky (Formerly CUI Devices) |
341 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.354" (9.00mm) | 4.3W @ 75°C | 6.30°C/W @ 200 LFM | 17.53°C/W | Aluminum Alloy | Black Anodized |
|

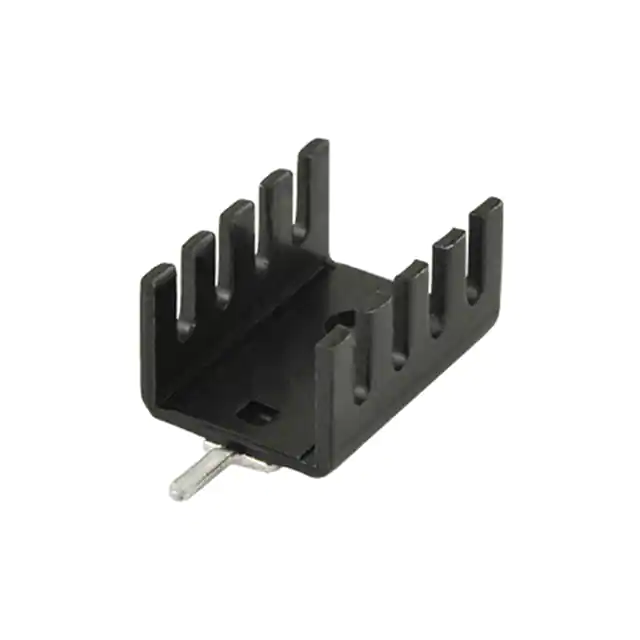

HSS-B20-0635HHEATSINK TO-220 2.6W ALUMINUM Same Sky (Formerly CUI Devices) |
701 |
|
数据手册 |
HSS | Bag | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Fins | 0.520" (13.20mm) | 0.250" (6.35mm) | - | 0.748" (19.00mm) | 2.6W @ 75°C | 10.68°C/W @ 200 LFM | 28.85°C/W | Aluminum | Black Anodized |
|

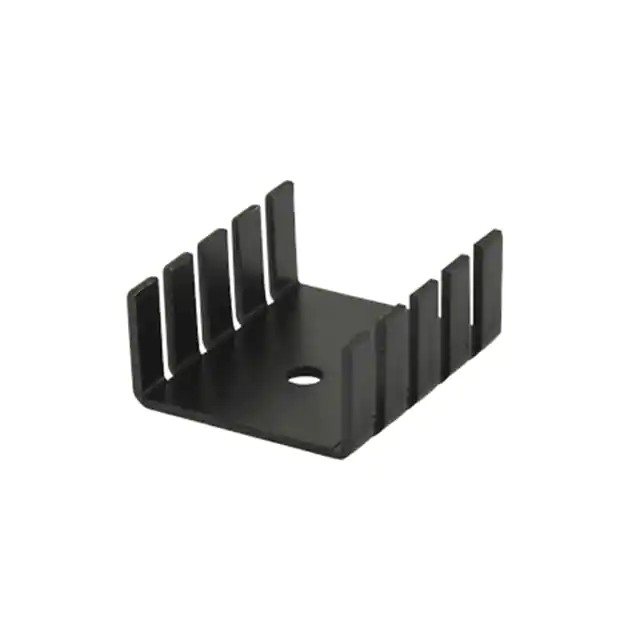

HSS-B20-NPR-01HEATSINK TO-220 4.2W ALUMINUM Same Sky (Formerly CUI Devices) |
170 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.2W @ 75°C | 5.88°C/W @ 200 LFM | 17.74°C/W | Aluminum | Black Anodized |
|

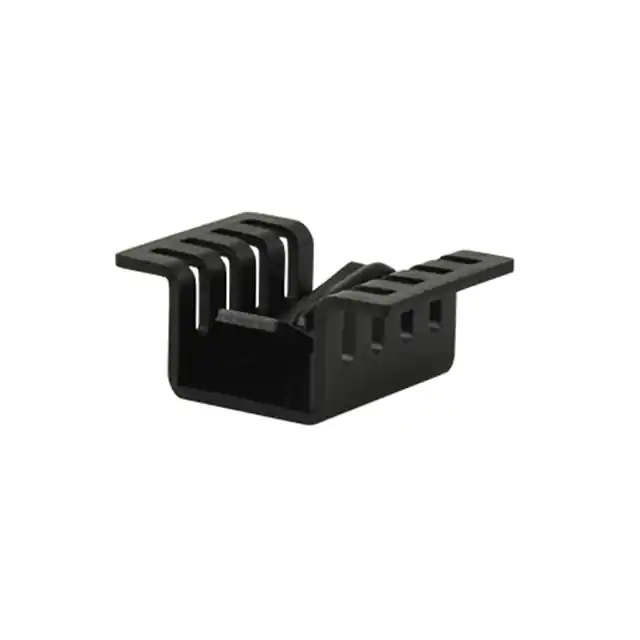

HSS-B20-CP-01HEATSINK TO-220 2.6W ALUMINUM Same Sky (Formerly CUI Devices) |
4,791 |
|
数据手册 |
HSS | Box | Active | Board Level | TO-220 | Clip | Rectangular, Fins | 0.375" (9.53mm) | 0.900" (22.86mm) | - | 0.740" (18.79mm) | 2.6W @ 75°C | 6.32°C/W @ 200 LFM | 28.85°C/W | Aluminum | Black Anodized |
|

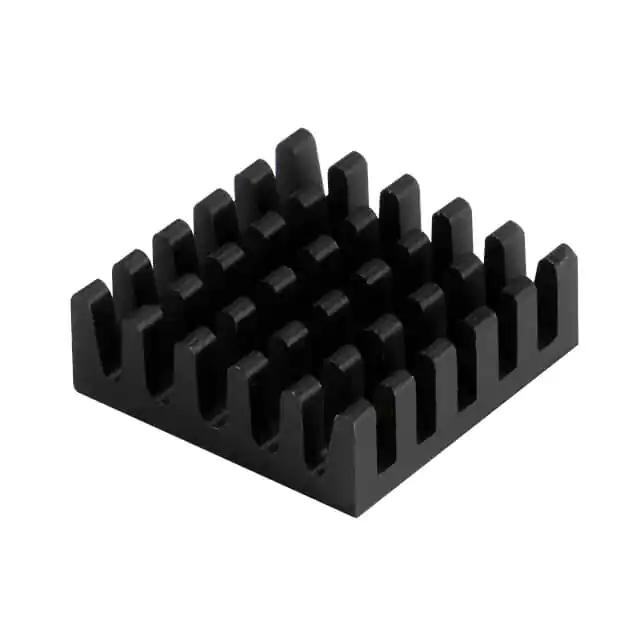

HSB04-171706HEAT SINK, BGA, 17 X 17 X 6 MM Same Sky (Formerly CUI Devices) |
759 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.236" (6.00mm) | 2.5W @ 75°C | 13.10°C/W @ 200 LFM | 29.73°C/W | Aluminum Alloy | Black Anodized |
|
HSS-B20-061HHEATSINK TO-220 4W ALUMINUM Same Sky (Formerly CUI Devices) |
954 |
|
数据手册 |
HSS | Box | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | 4.0W @ 75°C | 5.01°C/W @ 200 LFM | 18.63°C/W | Aluminum | Black Anodized |
|
HSB07-202009HEAT SINK, BGA, 20 X 20 X 9 MM Same Sky (Formerly CUI Devices) |
1,334 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.354" (9.00mm) | 3.1W @ 75°C | 8.60°C/W @ 200 LFM | 24.08°C/W | Aluminum Alloy | Black Anodized |
