散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSE-B18254-035H-00HEAT SINK, EXTRUSION, TO-218, 25 Same Sky (Formerly CUI Devices) |
2,522 |
|
数据手册 |
HSE | Bulk | Active | Board Level, Vertical | TO-218 | Clip and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.638" (41.60mm) | - | 0.984" (25.00mm) | 10.0W @ 75°C | 4.03°C/W @ 200 LFM | 7.50°C/W | Aluminum Alloy | Black Anodized |
|

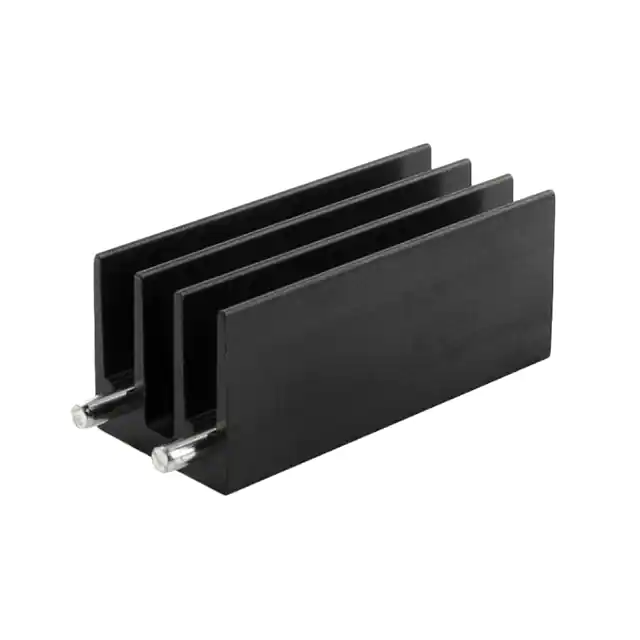

HSE-B254-04HHEAT SINK, EXTRUSION, TO-220/TO- Same Sky (Formerly CUI Devices) |
1,420 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-218, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 0.650" (16.50mm) | - | 0.630" (16.00mm) | 4.7W @ 75°C | 4.93°C/W @ 200 LFM | 15.96°C/W | Aluminum Alloy | Black Anodized |
|
HSE-B20254-035H-01HEAT SINK, EXTRUSION, TO-220, 25 Same Sky (Formerly CUI Devices) |
4,162 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 5.2W @ 75°C | 4.42°C/W @ 200 LFM | 14.42°C/W | Aluminum Alloy | Black Anodized |
|

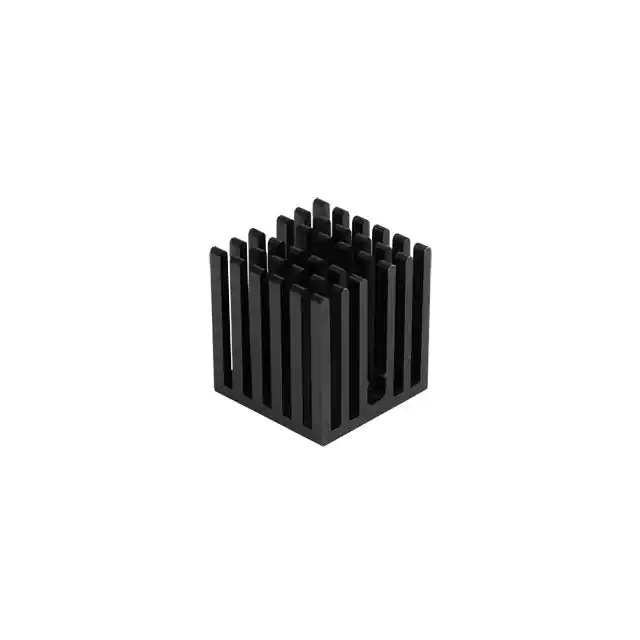

HSB23-232325HEAT SINK, BGA, 23 X 23 X 25 MM Same Sky (Formerly CUI Devices) |
4,267 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.984" (25.00mm) | 6.13W @ 75°C | 3.80°C/W @ 200 LFM | 12.23°C/W | Aluminum Alloy | Black Anodized |
|
HSB37-404023HEAT SINK, BGA, 40 X 40 X 23 MM Same Sky (Formerly CUI Devices) |
3,654 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.905" (23.00mm) | 11.7W @ 75°C | 2.10°C/W @ 200 LFM | 6.43°C/W | Aluminum Alloy | Black Anodized |
|
HSB28-606022HEAT SINK, BGA, 60 X 60 X 22 MM, Same Sky (Formerly CUI Devices) |
4,175 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.866" (22.00mm) | 15.83W @ 75°C | 1.40°C/W @ 200 LFM | 4.74°C/W | Aluminum Alloy | Black Anodized |
|
|
HSB38-707025PHEAT SINK, BGA, 70 X 70 X 25 MM, Same Sky (Formerly CUI Devices) |
2,060 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | 21.7W @ 75°C | 1.20°C/W @ 200 LFM | 3.45°C/W | Aluminum Alloy | Black Anodized |
|
HSS-B20-NPS-02HEATSINK TO-220 5.1W ALUMINUM Same Sky (Formerly CUI Devices) |
3,040 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 0.500" (12.70mm) | 1.000" (25.40mm) | - | 1.180" (29.97mm) | 5.1W @ 75°C | 4.20°C/W @ 200 LFM | 14.71°C/W | Aluminum | Black Anodized |
|

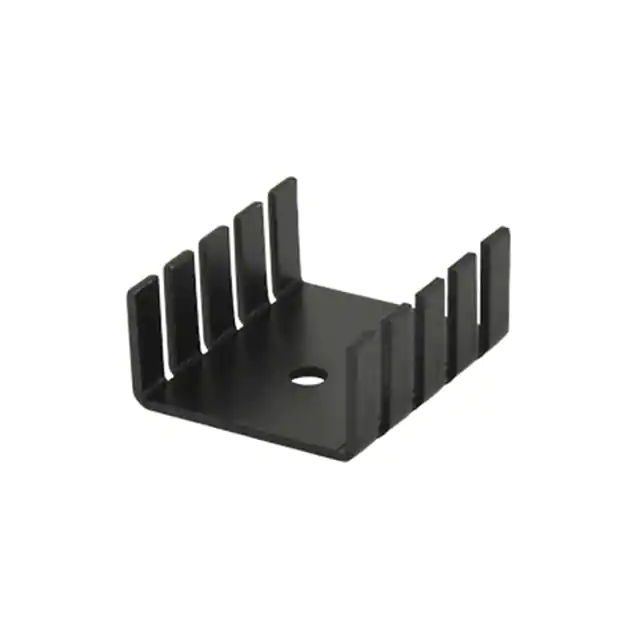

HSS-B20-NPS-01HEATSINK TO-220 4.2W ALUMINUM Same Sky (Formerly CUI Devices) |
4,628 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.2W @ 75°C | 5.88°C/W @ 200 LFM | 17.74°C/W | Aluminum | Black Anodized |
|

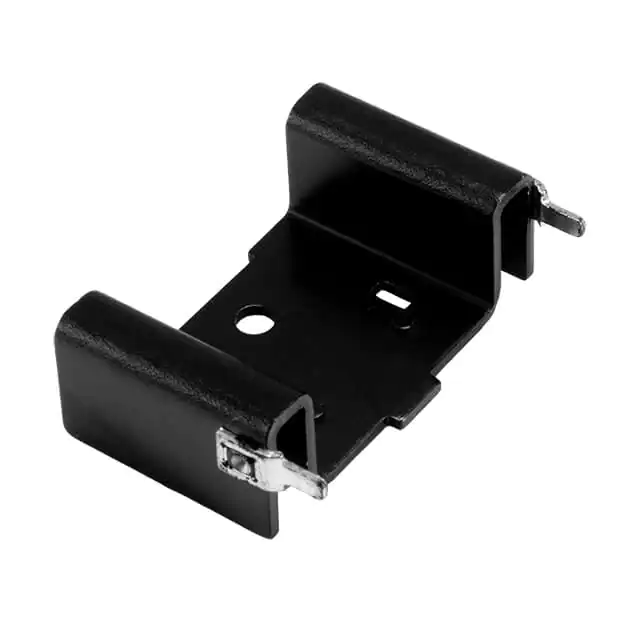

HSS15-B20-P40HEAT SINK, STAMPING, TO-220, 23. Same Sky (Formerly CUI Devices) |
4,853 |
|
数据手册 |
HSS | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular | 1.500" (38.10mm) | 0.921" (23.40mm) | - | 0.500" (12.70mm) | 5.0W @ 75°C | 8.50°C/W @ 200 LFM | 15.16°C/W | Aluminum Alloy | Black Anodized |
