散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSS-B20-074HHEATSINK TO-220 3.6W ALUMINUM Same Sky (Formerly CUI Devices) |
3,418 |
|
数据手册 |
HSS | Bag | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Fins | 0.394" (10.00mm) | 0.830" (21.08mm) | - | 0.748" (19.00mm) | 3.6W @ 75°C | 5.39°C/W @ 200 LFM | 20.59°C/W | Aluminum | Black Anodized |
|
HSE-B20254-035H-02HEAT SINK, EXTRUSION, TO-220, 25 Same Sky (Formerly CUI Devices) |
3,960 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 5.5W @ 75°C | 4.39°C/W @ 200 LFM | 13.64°C/W | Aluminum Alloy | Black Anodized |
|
HSS-C2591-SMT-TRHEAT SINK TO-263 COPPER Same Sky (Formerly CUI Devices) |
2,992 |
|
数据手册 |
HSS | Tape & Reel (TR) | Active | Top Mount | TO-263 (D²Pak) | - | Rectangular, Fins | 0.591" (15.00mm) | 1.020" (25.91mm) | - | 0.375" (9.52mm) | 2.1W @ 75°C | 8.15°C/W @ 200 LFM | 35.71°C/W | Copper | Tin |
|
HSE-B20270-040HHEAT SINK, EXTRUSION, TO-220, 27 Same Sky (Formerly CUI Devices) |
3,630 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.063" (27.00mm) | 1.378" (35.00mm) | - | 0.492" (12.50mm) | 6.0W @ 75°C | 3.64°C/W @ 200 LFM | 12.50°C/W | Aluminum Alloy | Black Anodized |
|
HSS25-B20-P51HEAT SINK, STAMPING, TO-218/TO-2 Same Sky (Formerly CUI Devices) |
4,627 |
|
数据手册 |
HSS | Box | Active | Board Level | TO-218, TO-220 | PC Pin | Square, Fins | 1.000" (25.40mm) | 1.000" (25.40mm) | - | 1.673" (42.50mm) | 5.88W @ 75°C | 6.30°C/W @ 200 LFM | 12.75°C/W | Aluminum Alloy | Black Anodized |
|
HSS-B20-0508H-01HEATSINK TO-220 7.4W ALUMINUM Same Sky (Formerly CUI Devices) |
4,251 |
|
数据手册 |
HSS | Tray | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.000" (25.40mm) | - | 1.673" (42.50mm) | 7.4W @ 75°C | 3.51°C/W @ 200 LFM | 10.14°C/W | Aluminum | Black Anodized |
|
HSE-B20381-035H-02HEAT SINK, EXTRUSION, TO-220, 38 Same Sky (Formerly CUI Devices) |
1,841 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.500" (38.10mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 6.9W @ 75°C | 3.32°C/W @ 200 LFM | 10.87°C/W | Aluminum Alloy | Black Anodized |
|
|
HSE-B20381-035H-01HEAT SINK, EXTRUSION, TO-220, 38 Same Sky (Formerly CUI Devices) |
2,510 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.500" (38.10mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 7.0W @ 75°C | 2.67°C/W @ 200 LFM | 10.71°C/W | Aluminum Alloy | Black Anodized |
|
HSE-B381-04HHEAT SINK, EXTRUSION, TO-220/TO- Same Sky (Formerly CUI Devices) |
2,185 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-218, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 0.650" (16.50mm) | - | 0.630" (16.00mm) | 5.9W @ 75°C | 4.44°C/W @ 200 LFM | 12.71°C/W | Aluminum Alloy | Black Anodized |
|

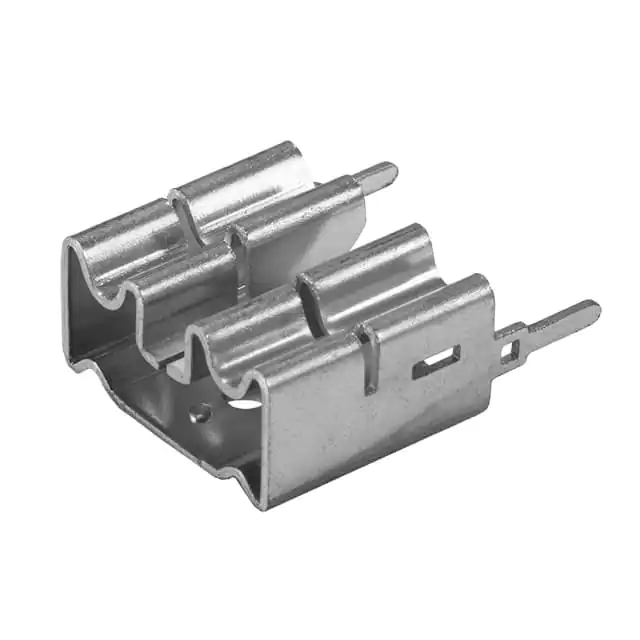

HSS12-B20-P95HEAT SINK, STAMPING, TO-220, 19 Same Sky (Formerly CUI Devices) |
1,549 |
|
数据手册 |
HSS | Box | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular | 0.866" (22.00mm) | 0.748" (19.00mm) | - | 0.433" (11.00mm) | 2.7W @ 75°C | 10.90°C/W @ 200 LFM | 27.37°C/W | Aluminum Alloy | Black Anodized |
