散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSE-B20500-040H-01HEAT SINK, EXTRUSION, TO-220, 50 Same Sky (Formerly CUI Devices) |
3,048 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Angled Fins | 1.969" (50.00mm) | 1.359" (34.50mm) | - | 0.492" (12.50mm) | 8.9W @ 75°C | 8.90°C/W @ 200 LFM | 8.43°C/W | Aluminum Alloy | Black Anodized |
|
HSE-B20508-035HHEAT SINK, EXTRUSION, TO-220, 50 Same Sky (Formerly CUI Devices) |
4,579 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 2.000" (50.80mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 7.8W @ 75°C | 5.17°C/W @ 200 LFM | 9.62°C/W | Aluminum Alloy | Black Anodized |
|
HSE-B20508-035H-01HEAT SINK, EXTRUSION, TO-220, 50 Same Sky (Formerly CUI Devices) |
2,795 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 2.000" (50.80mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 8.2W @ 75°C | 4.76°C/W @ 200 LFM | 9.15°C/W | Aluminum Alloy | Black Anodized |
|
HSE-B381-045HHEAT SINK, EXTRUSION, TO-220, 38 Same Sky (Formerly CUI Devices) |
3,654 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.500" (38.10mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | 9.9W @ 75°C | 2.63°C/W @ 200 LFM | 7.58°C/W | Aluminum Alloy | Black Anodized |
|
HSE-B20381-056HHEAT SINK, EXTRUSION, TO-220, 38 Same Sky (Formerly CUI Devices) |
4,853 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.500" (38.10mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 6.7W @ 75°C | 3.53°C/W @ 200 LFM | 11.19°C/W | Aluminum Alloy | Black Anodized |
|
HSE-B20381-040HHEAT SINK, EXTRUSION,TO-220, 38. Same Sky (Formerly CUI Devices) |
2,997 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.260" (32.00mm) | - | 0.551" (14.00mm) | 6.5W @ 75°C | 3.62°C/W @ 200 LFM | 11.54°C/W | Aluminum Alloy | Black Anodized |
|

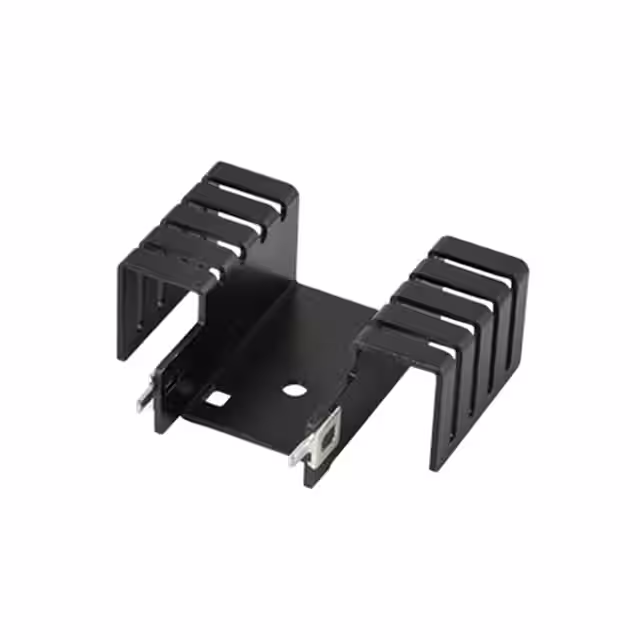

HSS-B20-05HHEATSINK TO-220 9.8W ALUMINUM Same Sky (Formerly CUI Devices) |
1,954 |
|
数据手册 |
HSS | Bag | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.728" (18.50mm) | 2.007" (50.98mm) | - | 1.614" (41.00mm) | 9.8W @ 75°C | 2.01°C/W @ 200 LFM | 7.65°C/W | Aluminum | Black Anodized |
|

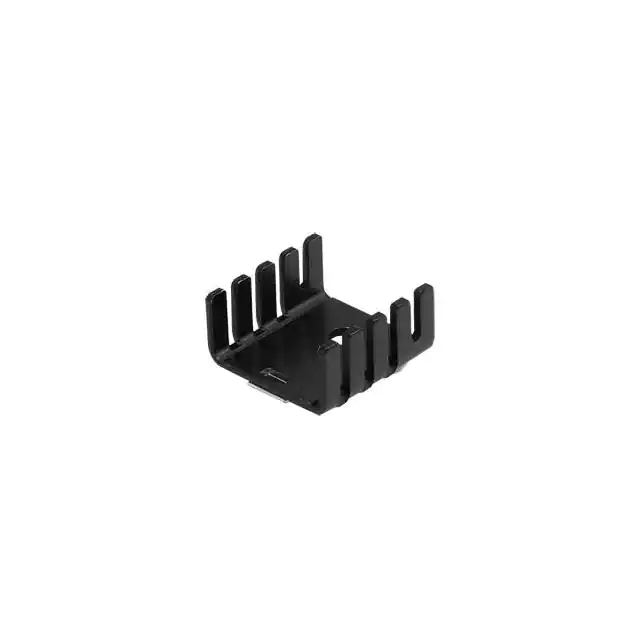

HSS28-B20-P39HEAT SINK, STAMPING, TO-218/TO-2 Same Sky (Formerly CUI Devices) |
1,213 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-218, TO-220 | Bolt On and PC Pin | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.374" (9.50mm) | 2.71W @ 75°C | 12.00°C/W @ 200 LFM | 27.66°C/W | Aluminum Alloy | Black Anodized |
|
HSE-B18381-035HHEAT SINK, EXTRUSION, TO-218, 38 Same Sky (Formerly CUI Devices) |
2,257 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.500" (38.10mm) | 1.638" (41.60mm) | - | 0.984" (25.00mm) | 12.0W @ 75°C | 3.52°C/W @ 200 LFM | 6.25°C/W | Aluminum Alloy | Black Anodized |
|
|
HSE-B20630-040H-01HEAT SINK, EXTRUSION, TO-220, 63 Same Sky (Formerly CUI Devices) |
4,170 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Angled Fins | 2.480" (63.00mm) | 1.359" (34.50mm) | - | 0.492" (12.50mm) | 9.1W @ 75°C | 9.10°C/W @ 200 LFM | 8.24°C/W | Aluminum Alloy | Black Anodized |
