散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

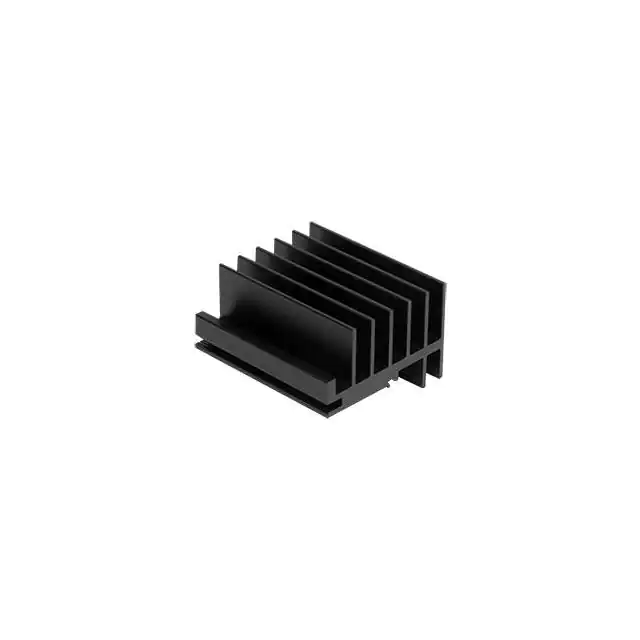

HSE06-503045HEAT SINK, EXTRUSION, TO-218/TO- Same Sky (Formerly CUI Devices) |
4,295 |
|
数据手册 |
HSE | Bag | Active | Board Level | TO-218, TO-220 | Clip | Rectangular, Fins | 1.969" (50.00mm) | 1.181" (30.00mm) | - | 1.772" (45.00mm) | 12.79W @ 75°C | 2.10°C/W @ 200 LFM | 5.86°C/W | Aluminum Alloy | Black Anodized |
|
HSB43-454515PHEAT SINK, BGA, 45 X 45 X 15 MM, Same Sky (Formerly CUI Devices) |
2,958 |
|
数据手册 |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.591" (15.00mm) | 9.7W @ 75°C | 3.20°C/W @ 200 LFM | 7.77°C/W | Aluminum Alloy | Black Anodized |
|
HSS-B20-0452HHEATSINK TO-220 3.2W ALUMINUM Same Sky (Formerly CUI Devices) |
4,996 |
|
数据手册 |
HSS | Bag | Obsolete | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Fins | 0.500" (12.70mm) | 0.500" (12.70mm) | - | 0.748" (19.00mm) | 3.2W @ 75°C | 6.40°C/W @ 200 LFM | 23.81°C/W | Aluminum | Black Anodized |
|
HSS-B20-NP-01HEATSINK TO-220 4.1W ALUMINUM Same Sky (Formerly CUI Devices) |
1,943 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | - | Rectangular, Fins | 0.787" (20.00mm) | 0.775" (19.68mm) | - | 0.303" (7.70mm) | 4.1W @ 75°C | 7.05°C/W @ 200 LFM | 18.29°C/W | Aluminum | Black Anodized |
|

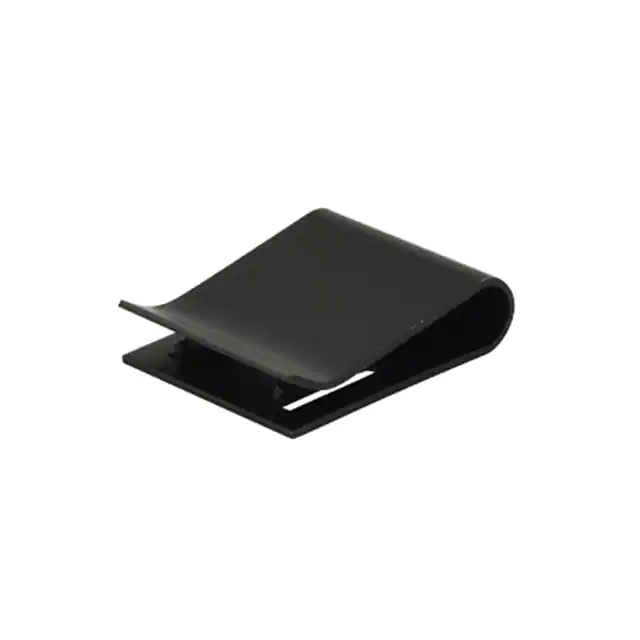

HSS-B20-NP-03HEATSINK TO-220 3.6W ALUMINUM Same Sky (Formerly CUI Devices) |
1,926 |
|
数据手册 |
HSS | Bag | Active | Top Mount | TO-220 | - | Rectangular, Fins | 0.279" (7.10mm) | 0.787" (20.00mm) | - | 1.000" (25.40mm) | 3.6W @ 75°C | 7.45°C/W @ 200 LFM | 20.83°C/W | Aluminum | Black Anodized |
|

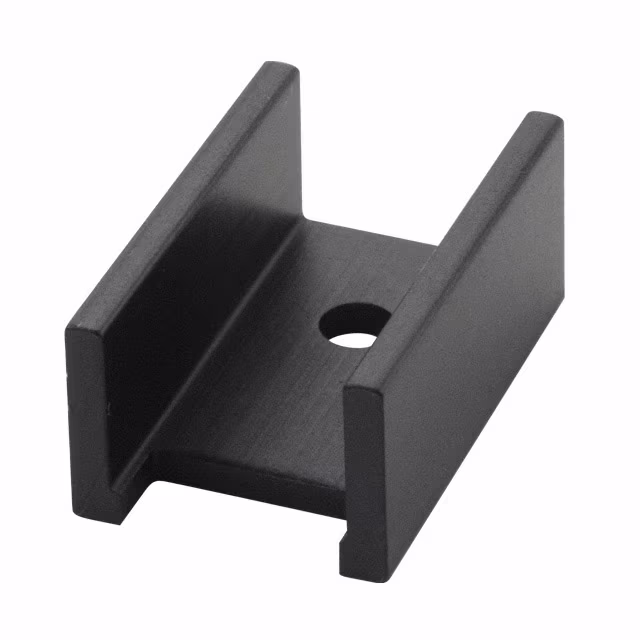

HSE-B1711-032HEAT SINK, EXTRUSION, TO-220, 25 Same Sky (Formerly CUI Devices) |
3,499 |
|
数据手册 |
HSE | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.984" (25.00mm) | 0.625" (16.00mm) | - | 0.354" (9.00mm) | 3.7W @ 75°C | 6.84°C/W @ 200 LFM | 20.27°C/W | Aluminum Alloy | Black Anodized |
|
|
HSE-B1711-057HEAT SINK, EXTRUSION, TO-220, 25 Same Sky (Formerly CUI Devices) |
2,449 |
|
数据手册 |
HSE | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.984" (25.00mm) | 0.625" (16.00mm) | - | 0.354" (9.00mm) | 3.1W @ 75°C | 7.07°C/W @ 200 LFM | 24.19°C/W | Aluminum Alloy | Black Anodized |
|
HSS-B20-061H-01HEATSINK TO-220 2.3W ALUMINUM Same Sky (Formerly CUI Devices) |
1,631 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 0.500" (12.70mm) | 0.504" (12.80mm) | - | 0.590" (15.00mm) | 2.3W @ 75°C | 11.04°C/W @ 200 LFM | 33.28°C/W | Aluminum | Black Anodized |
|

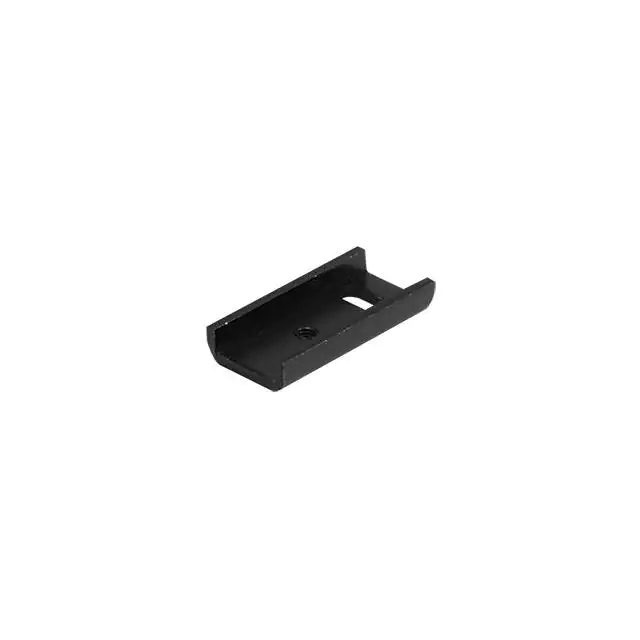

HSE11-B20-NPHEAT SINK, EXTRUSION, TO-218/TO- Same Sky (Formerly CUI Devices) |
4,505 |
|
数据手册 |
HSE | Bag | Active | Top Mount | TO-218, TO-220 | Bolt On | Rectangular | 0.984" (25.00mm) | 0.472" (12.00mm) | - | 0.177" (4.50mm) | 1.93W @ 75°C | 21.40°C/W @ 200 LFM | 38.90°C/W | Aluminum Alloy | Black Anodized |
|
HSS-B20-NP-11HEATSINK TO-220 4.4W ALUMINUM Same Sky (Formerly CUI Devices) |
2,748 |
|
数据手册 |
HSS | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 0.779" (19.80mm) | - | 0.850" (21.60mm) | 4.4W @ 75°C | 6.86°C/W @ 200 LFM | 17.05°C/W | Aluminum | Black Anodized |
