场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIHP23N60E-GE3MOSFET N-CH 600V 23A TO220AB Vishay Siliconix |
813 | - |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 158mOhm @ 12A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±30V | 2418 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
SIHA120N60E-GE3MOSFET N-CH 600V 25A TO220 Vishay Siliconix |
994 | - |
|
数据手册 |
E | TO-220-3 Full Pack | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 120mOhm @ 12A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±30V | 1562 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|
SIHB125N60EF-GE3MOSFET N-CH 600V 25A D2PAK Vishay Siliconix |
2,720 | - |
|
数据手册 |
EF | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 125mOhm @ 12A, 10V | 5V @ 250µA | 47 nC @ 10 V | ±30V | 1533 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
SIDR220EP-T1-RE3N-CHANNEL 25 V (D-S) 175C MOSFET Vishay Siliconix |
5,988 | - |
|
数据手册 |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 92.8A (Ta), 415A (Tc) | 4.5V, 10V | 0.58mOhm @ 20A, 10V | 2.1V @ 250µA | 200 nC @ 10 V | +16V, -12V | 10850 pF @ 10 V | - | 6.25W (Ta), 415W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8DC |
|
|
SUP50010E-GE3MOSFET N-CH 60V 150A TO220AB Vishay Siliconix |
168 | - |
|
数据手册 |
TrenchFET® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 150A (Tc) | 7.5V, 10V | 2mOhm @ 30A, 10V | 4V @ 250µA | 212 nC @ 10 V | ±20V | 10895 pF @ 30 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
SIHG21N80AEF-GE3E SERIES POWER MOSFET WITH FAST Vishay Siliconix |
450 | - |
|
数据手册 |
EF | TO-247-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 16.3A (Tc) | 10V | 250mOhm @ 8.5A, 10V | 4V @ 250µA | 71 nC @ 10 V | ±30V | 1511 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
SQM120N04-1M7L_GE3MOSFET N-CH 40V 120A TO263 Vishay Siliconix |
2,178 | - |
|
数据手册 |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 4.5V, 10V | 1.7mOhm @ 30A, 10V | 2.5V @ 250µA | 285 nC @ 10 V | ±20V | 14606 pF @ 20 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 |
|
SIHA22N60EF-GE3MOSFET N-CH 600V 19A TO220 Vishay Siliconix |
929 | - |
|
数据手册 |
EF | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 19A (Tc) | 10V | 182mOhm @ 11A, 10V | 4V @ 250µA | 96 nC @ 10 V | ±30V | 1423 pF @ 100 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|
SIHA24N80AE-GE3MOSFET N-CH 800V 9A TO220 Vishay Siliconix |
752 | - |
|
数据手册 |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 9A (Tc) | - | 184mOhm @ 10A, 10V | 4V @ 250µA | 89 nC @ 10 V | ±30V | 1836 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|

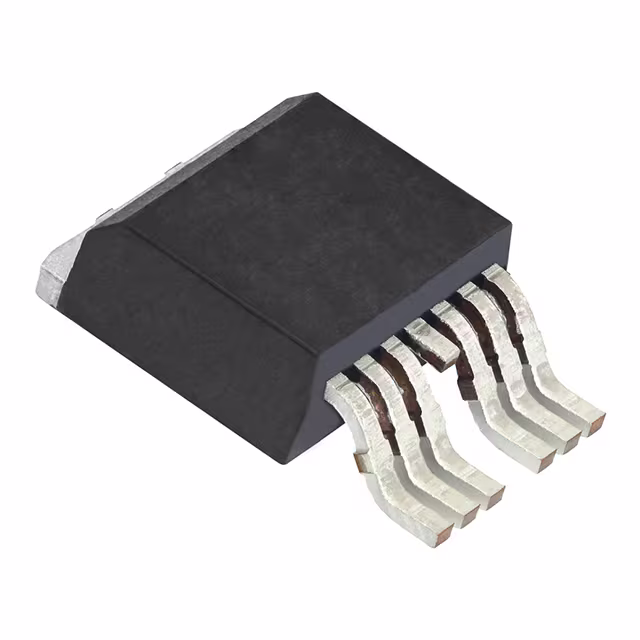

SUM70030M-GE3MOSFET N-CH 100V 150A TO263-7 Vishay Siliconix |
1,070 | - |
|
数据手册 |
TrenchFET® | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 150A (Tc) | - | 3.5mOhm @ 30A, 10V | 4V @ 250µA | 214 nC @ 10 V | ±20V | 10870 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
