场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIRA14DP-T1-GE3MOSFET N-CH 30V 58A PPAK SO-8 Vishay Siliconix |
704 | - |
|
数据手册 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 58A (Tc) | 4.5V, 10V | 5.1mOhm @ 10A, 10V | 2.2V @ 250µA | 29 nC @ 10 V | +20V, -16V | 1450 pF @ 15 V | - | 3.6W (Ta), 31.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SISA14BDN-T1-GE3N-CHANNEL 30-V (D-S) MOSFET POWE Vishay Siliconix |
13,005 | - |
|
数据手册 |
TrenchFET® Gen IV | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta), 72A (Tc) | 4.5V, 10V | 5.38mOhm @ 10A, 10V | 2.2V @ 250µA | 22 nC @ 10 V | +20V, -16V | 917 pF @ 15 V | - | 3.8W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
SI3473CDV-T1-GE3MOSFET P-CH 12V 8A 6TSOP Vishay Siliconix |
8,476 | - |
|
数据手册 |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8A (Tc) | 1.8V, 4.5V | 22mOhm @ 8.1A, 4.5V | 1V @ 250µA | 65 nC @ 8 V | ±8V | 2010 pF @ 6 V | - | 2W (Ta), 4.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
SI3473CDV-T1-E3MOSFET P-CH 12V 8A 6TSOP Vishay Siliconix |
2,233 | - |
|
数据手册 |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8A (Tc) | 1.8V, 4.5V | 22mOhm @ 8.1A, 4.5V | 1V @ 250µA | 65 nC @ 8 V | ±8V | 2010 pF @ 6 V | - | 4.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
SI8416DB-T2-E1MOSFET N-CH 8V 16A 6MICRO FOOT Vishay Siliconix |
1,372 | - |
|
数据手册 |
TrenchFET® | 6-UFBGA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 8 V | 16A (Tc) | 1.2V, 4.5V | 23mOhm @ 1.5A, 4.5V | 800mV @ 250µA | 26 nC @ 4.5 V | ±5V | 1470 pF @ 4 V | - | 2.77W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-Micro Foot™ (1.5x1) |
|
SQS840CENW-T1_GE3MOSFET N-CH 40V 12A PPAK 1212-8W Vishay Siliconix |
3,829 | - |
|
数据手册 |
TrenchFET® | PowerPAK® 1212-8W | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Tc) | 4.5V, 10V | 20mOhm @ 7.5A, 10V | 2.5V @ 250µA | 22.5 nC @ 10 V | ±20V | 1031 pF @ 20 V | - | 33W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® 1212-8W |
|

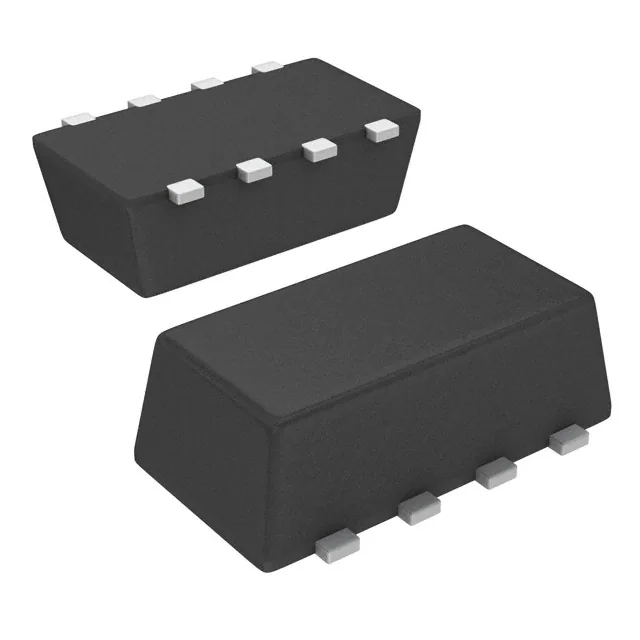

SI5471DC-T1-GE3MOSFET P-CH 20V 6A 1206-8 Vishay Siliconix |
14,178 | - |
|
数据手册 |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Tc) | 1.8V, 4.5V | 20mOhm @ 9.1A, 4.5V | 1.1V @ 250µA | 96 nC @ 10 V | ±12V | 2945 pF @ 10 V | - | 2.5W (Ta), 6.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|
|
SIRA12BDP-T1-GE3MOSFET N-CH 30V 27A/60A PPAK SO8 Vishay Siliconix |
6,495 | - |
|
数据手册 |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 27A (Ta), 60A (Tc) | 4.5V, 10V | 4.3mOhm @ 10A, 10V | 2.4V @ 250µA | 32 nC @ 10 V | +20V, -16V | 1470 pF @ 15 V | - | 5W (Ta), 38W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SQ3410EV-T1_GE3MOSFET N-CH 30V 8A 6TSOP Vishay Siliconix |
1,749 | - |
|
数据手册 |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Tc) | 4.5V, 10V | 17.5mOhm @ 5A, 10V | 2.5V @ 250µA | 21 nC @ 10 V | ±20V | 1005 pF @ 15 V | - | 5W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 6-TSOP |
|

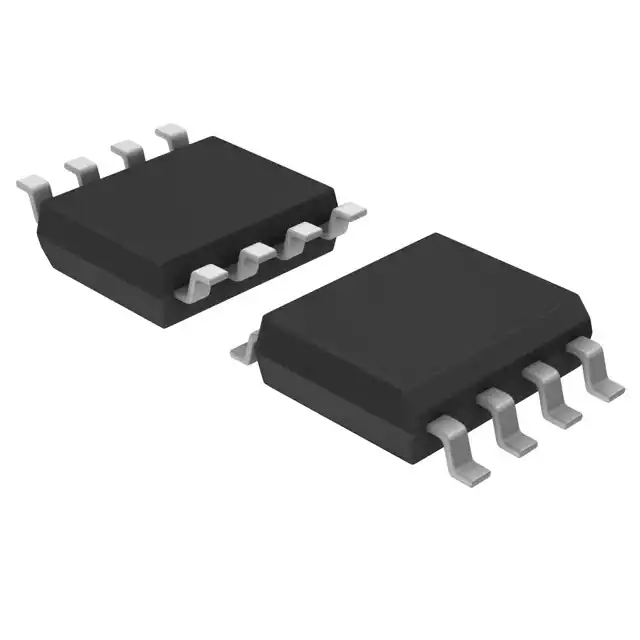

SI4134DY-T1-E3MOSFET N-CH 30V 14A 8SO Vishay Siliconix |
3,214 | - |
|
数据手册 |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Tc) | 10V | 14mOhm @ 10A, 10V | 2.5V @ 250µA | 23 nC @ 10 V | ±20V | 846 pF @ 15 V | - | 2.5W (Ta), 5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
