场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQ3461EV-T1_GE3MOSFET P-CHANNEL 12V 8A 6TSOP Vishay Siliconix |
5,875 | - |
|
数据手册 |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8A (Tc) | 1.8V, 4.5V | 25mOhm @ 7.9A, 4.5V | 1V @ 250µA | 28 nC @ 4.5 V | ±8V | 2000 pF @ 6 V | - | 5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
.jpg)
|
SIHFR9310TRR-GE3MOSFET P-CHANNEL 400V Vishay Siliconix |
1,266 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 400 V | 1.8A (Tc) | 10V | 7Ohm @ 1.1A, 10V | 4V @ 250µA | 13 nC @ 10 V | ±20V | 270 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
SI3459BDV-T1-E3MOSFET P-CH 60V 2.9A 6TSOP Vishay Siliconix |
5,833 | - |
|
数据手册 |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.9A (Tc) | 4.5V, 10V | 216mOhm @ 2.2A, 10V | 3V @ 250µA | 12 nC @ 10 V | ±20V | 350 pF @ 30 V | - | 3.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|

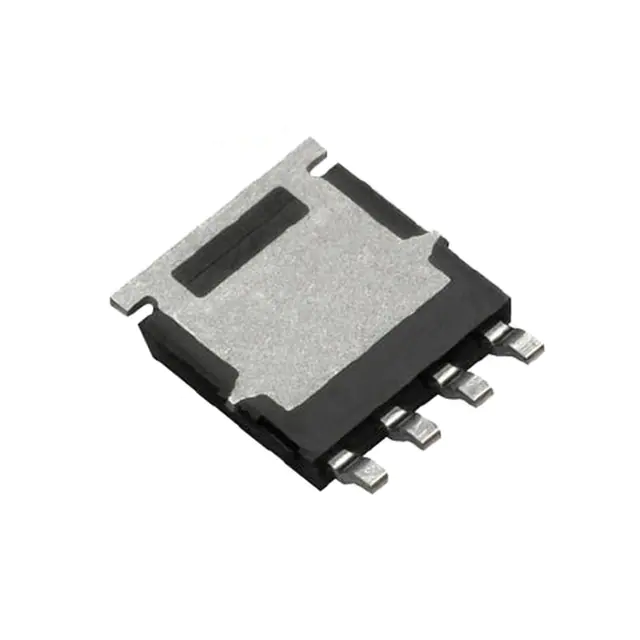

SQJA70EP-T1_GE3MOSFET N-CH 100V 14.7A PPAK SO-8 Vishay Siliconix |
5,716 | - |
|
数据手册 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 14.7A (Tc) | 10V | 95mOhm @ 4A, 10V | 3.5V @ 250µA | 7 nC @ 10 V | ±20V | 220 pF @ 25 V | - | 27W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
SQS484CENW-T1_GE3MOSFET N-CH 40V 16A PPAK 1212-8W Vishay Siliconix |
4,335 | - |
|
数据手册 |
TrenchFET® | PowerPAK® 1212-8W | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 16A (Tc) | 4.5V, 10V | 9.5mOhm @ 10A, 10V | 2.5V @ 250µA | 40 nC @ 10 V | ±20V | 2350 pF @ 25 V | - | 62.5W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8W |
.jpg)
|

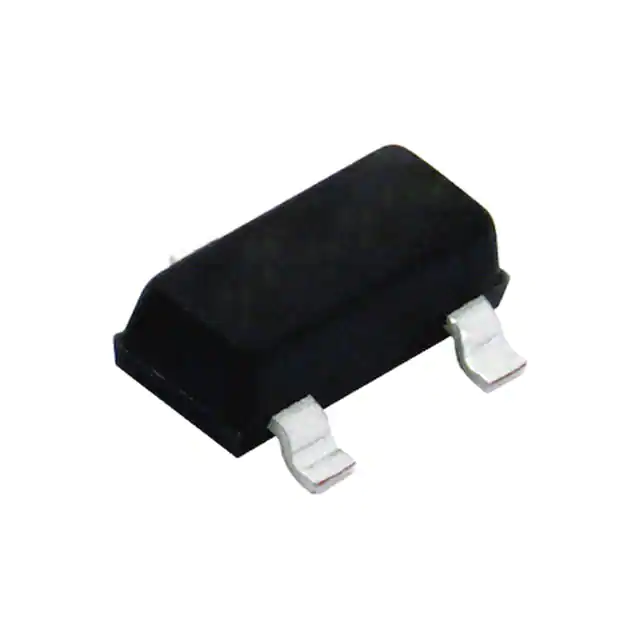

SI2328DS-T1-BE3N-CHANNEL 100-V (D-S) MOSFET Vishay Siliconix |
11,409 | - |
|
数据手册 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.15A (Ta) | 10V | 250mOhm @ 1.5A, 10V | 4V @ 250µA | 5 nC @ 10 V | ±20V | - | - | 730mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
SISH407DN-T1-GE3MOSFET P-CH 20V 15.4A/25A PPAK Vishay Siliconix |
26,723 | - |
|
数据手册 |
TrenchFET® | PowerPAK® 1212-8SH | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 15.4A (Ta), 25A (Tc) | 1.8V, 4.5V | 9.5mOhm @ 15.3A, 4.5V | 1V @ 250µA | 93.8 nC @ 8 V | ±8V | 2760 pF @ 10 V | - | 3.6W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8SH |
|

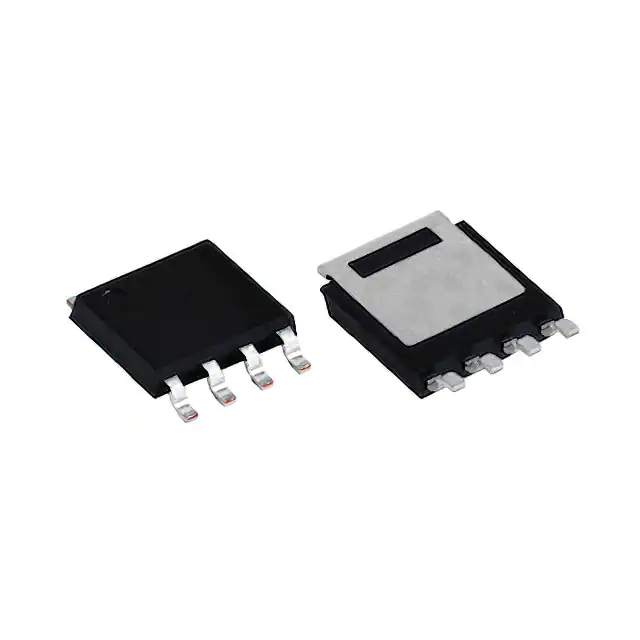

SQJ168ELP-T1_GE3AUTOMOTIVE N-CHANNEL 60 V (D-S) Vishay Siliconix |
8,593 | - |
|
数据手册 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Tc) | 4.5V, 10V | 36mOhm @ 15A, 10V | 2.5V @ 250µA | 20 nC @ 10 V | ±20V | 987 pF @ 25 V | - | 29.4W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
SQJ146EP-T1_GE3MOSFET N-CH 40V 75A PPAK SO-8 Vishay Siliconix |
3,571 | - |
|
数据手册 |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 7mOhm @ 15A, 10V | 3.5V @ 250µA | 27 nC @ 10 V | ±20V | 1500 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
|
SI3458BDV-T1-GE3MOSFET N-CH 60V 4.1A 6TSOP Vishay Siliconix |
30,815 | - |
|
数据手册 |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 60 V | 4.1A (Tc) | 4.5V, 10V | 100mOhm @ 3.2A, 10V | 3V @ 250µA | 11 nC @ 10 V | ±20V | 350 pF @ 30 V | - | 2W (Ta), 3.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
