场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFP360LCMOSFET N-CH 400V 23A TO247-3 Vishay Siliconix |
3,489 | - |
|
数据手册 |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 23A (Tc) | 10V | 200mOhm @ 14A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±30V | 3400 pF @ 25 V | - | 280W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
2N6660MOSFET N-CH 60V 990MA TO205AD Vishay Siliconix |
4,656 | - |
|
数据手册 |
- | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 990mA (Tc) | 5V, 10V | 3Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-205AD (TO-39) |
|
|
2N6660-E3MOSFET N-CH 60V 990MA TO205AD Vishay Siliconix |
5,074 | - |
|
数据手册 |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 990mA (Tc) | 5V, 10V | 3Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-205AD (TO-39) |
|
IRFPS40N50LMOSFET N-CH 500V 46A SUPER247 Vishay Siliconix |
5,067 | - |
|
数据手册 |
- | TO-274AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 46A (Tc) | 10V | 100mOhm @ 28A, 10V | 5V @ 250µA | 380 nC @ 10 V | ±30V | 8110 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
IRFPS38N60LMOSFET N-CH 600V 38A SUPER247 Vishay Siliconix |
5,585 | - |
|
数据手册 |
- | TO-274AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tc) | 10V | 150mOhm @ 23A, 10V | 5V @ 250µA | 320 nC @ 10 V | ±30V | 7990 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
|
IRFPS40N60KMOSFET N-CH 600V 40A SUPER247 Vishay Siliconix |
5,081 | - |
|
数据手册 |
- | TO-274AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 40A (Tc) | 10V | 130mOhm @ 24A, 10V | 5V @ 250µA | 330 nC @ 10 V | ±30V | 7970 pF @ 25 V | - | 570W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|

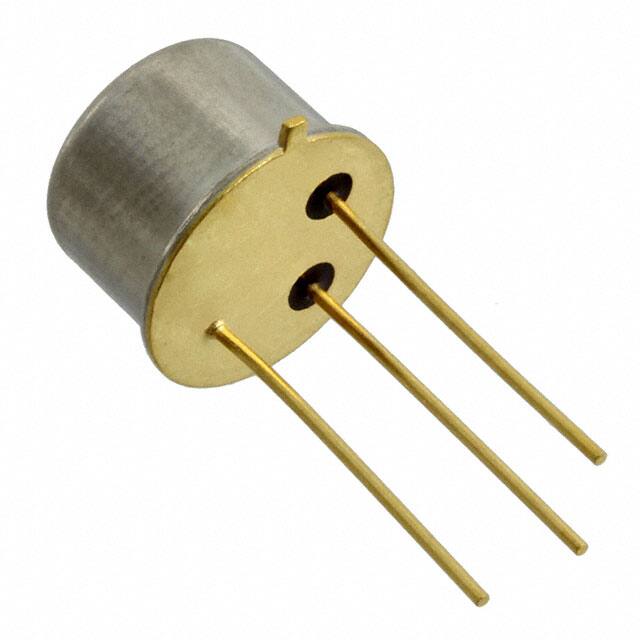

2N6661MOSFET N-CH 90V 860MA TO39 Vishay Siliconix |
2,269 | - |
|
数据手册 |
- | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90 V | 860mA (Tc) | 5V, 10V | 4Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-39 |
|
|
2N6661-E3MOSFET N-CH 90V 860MA TO39 Vishay Siliconix |
9,232 | - |
|
数据手册 |
- | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90 V | 860mA (Tc) | 5V, 10V | 4Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-39 |
|
3N163-2MOSFET P-CH 40V 50MA TO72 Vishay Siliconix |
7,579 | - |
|
数据手册 |
- | TO-206AF, TO-72-4 Metal Can | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 50mA (Ta) | 20V | 250Ohm @ 100µA, 20V | 5V @ 10µA | - | ±30V | 3.5 pF @ 15 V | - | 375mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-72 |
|
|
VP0300B-E3MOSFET P-CH 30V 0.32A TO-205 Vishay Siliconix |
3,321 | - |
|
数据手册 |
- | - | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 320mA (Ta) | - | 2.5Ohm @ 1A, 12V | 4.5V @ 1mA | - | - | 150 pF @ 15 V | - | - | - | - | - | - | - |
