直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5314/2TDHHPFAN AXIAL 140X50.8MM 24VDC WIRE ebm-papst Inc. |
1,751 |
|
数据手册 |
5300TD | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 50.80mm | 288.4 CFM (8.08m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 67 W | 7000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|
G1G160-BH29-52FAN BLOWER 226.8X130.0MM 24VDC ebm-papst Inc. |
1,571 |
|
数据手册 |
G1G160 | Bulk | Active | 24VDC | Rectangular/Rounded - 226.8mm L x 262mm H | 130.0mm | - | - | Ball | Blower | PWM Control, Speed Sensor (Tach) | - | 105 W | 1750 RPM | 4 Wire Leads with Splice Terminals | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|
R3G310-AN12-30FAN IMP MTRZD 318MM BALL 48VDC ebm-papst Inc. |
1,872 |
|
数据手册 |
R3G310 | Bulk | Active | 48VDC | Round - 318mm Dia | - | 753.9 CFM (21.11m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 71.0dB(A) | 190 W | 2000 RPM | 4 Wire Leads with Ferrules | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CE, CSA, EAC, UL | - |
|
414/2FAN AXIAL 40X20MM 24VDC WIRE ebm-papst Inc. |
3,834 |
|
数据手册 |
400 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 5.9 CFM (0.165m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 18.0dB(A) | 1 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.06 lb (27.22 g) |
|
412/2H-048FAN AXIAL 40X20MM 12VDC WIRE ebm-papst Inc. |
4,261 |
|
数据手册 |
400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1 W | 7000 RPM | 3 Wire Leads | IP20 | -4 ~ 122°F (-20 ~ 50°C) | CE, CSA, UL, VDE | - |
|
8414NGMLFAN AXIAL 80X25.4MM 24VDC WIRE ebm-papst Inc. |
4,490 |
|
数据手册 |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 26.5 CFM (0.742m³/min) | - | Sintec | Tubeaxial | - | 19.0dB(A) | 1.1 W | 2050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

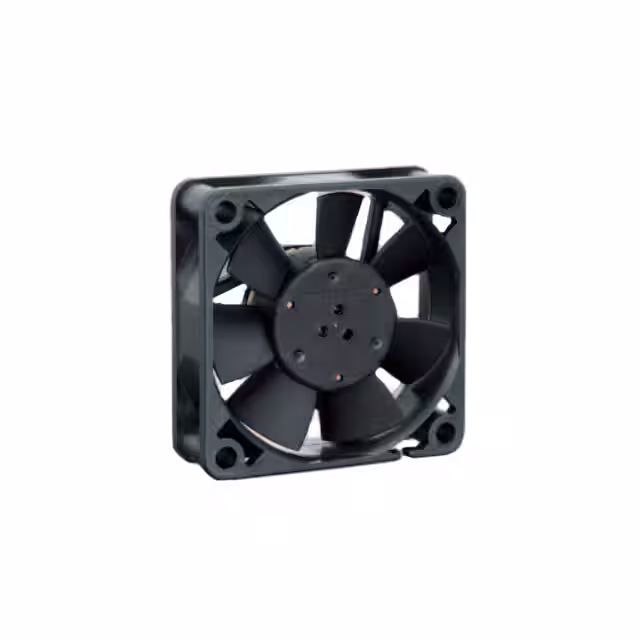

512F-532FAN AXIAL 50X15MM 12VDC WIRE ebm-papst Inc. |
1,799 |
|
数据手册 |
500F | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 11.8 CFM (0.330m³/min) | - | Sintec | Tubeaxial | - | 30.0dB(A) | 900 mW | 5000 RPM | 2 Wire Leads | - | -4 ~ 185°F (-20 ~ 85°C) | - | - |
|
|
8412NGHFAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
1,063 |
|
数据手册 |
8400N | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 47.0 CFM (1.32m³/min) | - | Sintec | Tubeaxial | - | 37.0dB(A) | 2.2 W | - | 2 Wire Leads | - | 158°F (70°C) | - | 0.21 lb (95.25 g) |
_Series.jpg)
|
3414NGFAN AXIAL 92X25.4MM 24VDC WIRE ebm-papst Inc. |
1,169 |
|
数据手册 |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 49.4 CFM (1.38m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 2.3 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
|
512F/2-531FAN AXIAL 50X15MM 12VDC WIRE ebm-papst Inc. |
2,539 |
|
数据手册 |
500F | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 11.8 CFM (0.330m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
