直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
_Series.jpg)
|
3414NFAN AXIAL 92X25.4MM 24VDC WIRE ebm-papst Inc. |
4,652 |
|
数据手册 |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 49.4 CFM (1.38m³/min) | - | Ball | Tubeaxial | - | 32.0dB(A) | 2.3 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
614NHHRFAN AXIAL 60X25.4MM 24VDC WIRE ebm-papst Inc. |
1,609 |
|
数据手册 |
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 2.9 W | 6850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.146 lb (66.22 g) |
|

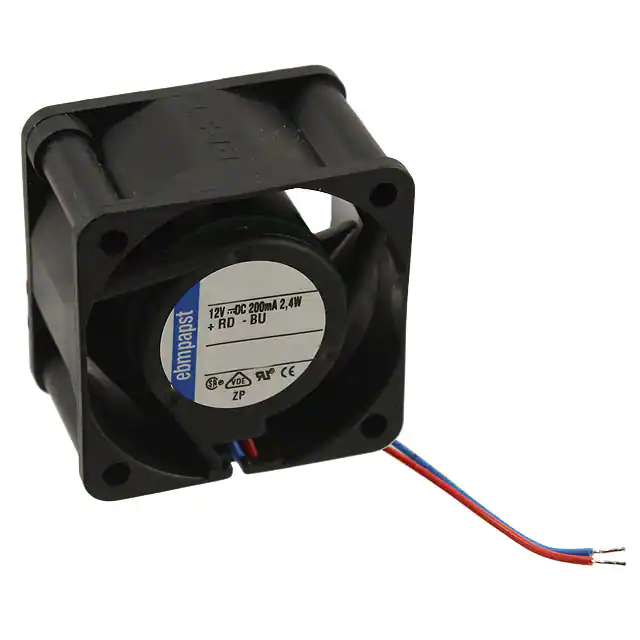

412JFAN AXIAL 40X25.4MM 12VDC WIRE ebm-papst Inc. |
2,477 |
|
数据手册 |
400J | Box | Active | 12VDC | Square - 40mm L x 40mm H | 25.40mm | 11.2 CFM (0.314m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 2.4 W | 10300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.111 lb (50.35 g) |
|
4312MFAN AXIAL 119X32MM 12VDC WIRE ebm-papst Inc. |
2,836 |
|
数据手册 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 82.4 CFM (2.31m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 2.6 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
624/2HHFAN AXIAL 60X25.4MM 24VDC WIRE ebm-papst Inc. |
4,375 |
|
数据手册 |
620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 8200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.187 lb (84.82 g) |
|
|
4314LFAN AXIAL 119X32MM 24VDC WIRE ebm-papst Inc. |
2,748 |
|
数据手册 |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 56.0 CFM (1.57m³/min) | - | Ball | Tubeaxial | - | 30.0dB(A) | 1.2 W | 1550 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
8312FAN AXIAL 80X32MM 12VDC WIRE ebm-papst Inc. |
1,228 |
|
数据手册 |
8300 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 31.8 CFM (0.890m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.2 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
4312SFAN AXIAL 119X32MM 12VDC WIRE ebm-papst Inc. |
4,018 |
|
数据手册 |
4300 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
8412NGMLVFAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
2,824 |
|
数据手册 |
8400NV | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 26.5 CFM (0.742m³/min) | - | Sintec | Tubeaxial | - | 19.0dB(A) | 1.5 W | 2050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3314NNFAN AXIAL 92X32MM 24VDC WIRE ebm-papst Inc. |
4,454 |
|
数据手册 |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 46.9 CFM (1.31m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 1.8 W | 2650 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.419 lb (190.06 g) |
