直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4394FAN AXIAL 119X32MM 24VDC TERM ebm-papst Inc. |
2,416 |
|
数据手册 |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
4414/2HFAN AXIAL 119X38MM 24VDC WIRE ebm-papst Inc. |
1,609 |
|
数据手册 |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 141.3 CFM (3.96m³/min) | 0.642 in H2O (160.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 8.6 W | 4300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.604 lb (273.97 g) |
|
|
4412/2HHPFAN AXIAL 119X38MM 12VDC WIRE ebm-papst Inc. |
3,637 |
|
数据手册 |
4400 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 167.9 CFM (4.70m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 13 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
4188NXMFAN AXIAL 119X38MM 48VDC TERM ebm-papst Inc. |
3,891 |
|
数据手册 |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 94.0 CFM (2.63m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 3.5 W | 2800 RPM | 2 Terminals | - | -22 ~ 167°F (-30 ~ 75°C) | CSA, UL, VDE | 0.86 lb (390.09 g) |
|
4118NH3FAN AXIAL 119X38MM 48VDC WIRE ebm-papst Inc. |
4,332 |
|
数据手册 |
4100N | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 182.4 CFM (5.11m³/min) | - | Ball | Tubeaxial | - | 65.0dB(A) | 20 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE | 0.86 lb (390.09 g) |
|
8315100164FAN AXIAL 80X38MM 12VDC WIRE ebm-papst Inc. |
1,071 |
|
数据手册 |
AxiForce | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 103.0 CFM (2.88m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 26 W | 13200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

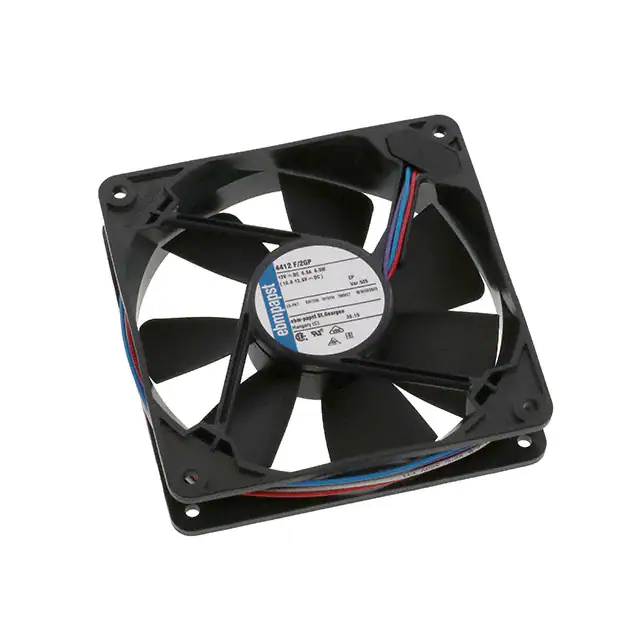

4412F/2GP-535FAN AXIAL 119X25.4MM 12VDC ebm-papst Inc. |
2,522 |
|
数据手册 |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 5.3 W | 2900 RPM | - | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.386 lb (175.09 g) |
|
618JHFAN AXIAL 60X32MM 48VDC WIRE ebm-papst Inc. |
4,360 |
|
数据手册 |
600J | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 32.00mm | 41.2 CFM (1.15m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 7.7 W | 11700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE | 0.222 lb (100.7 g) |
|

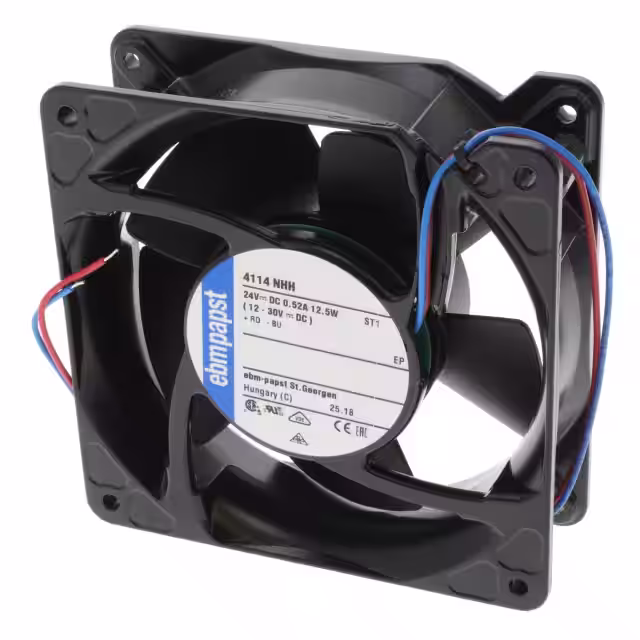

4114NHHFAN AXIAL 119X38MM 24VDC WIRE ebm-papst Inc. |
3,028 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 65.0dB(A) | 12.4 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE | - |
|
DV5214/2NFAN AXIAL 127X38MM 24VDC WIRE ebm-papst Inc. |
2,673 |
|
数据手册 |
DV5200 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 159.0 CFM (4.45m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 20.4 W | 5000 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | - | - |
