直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

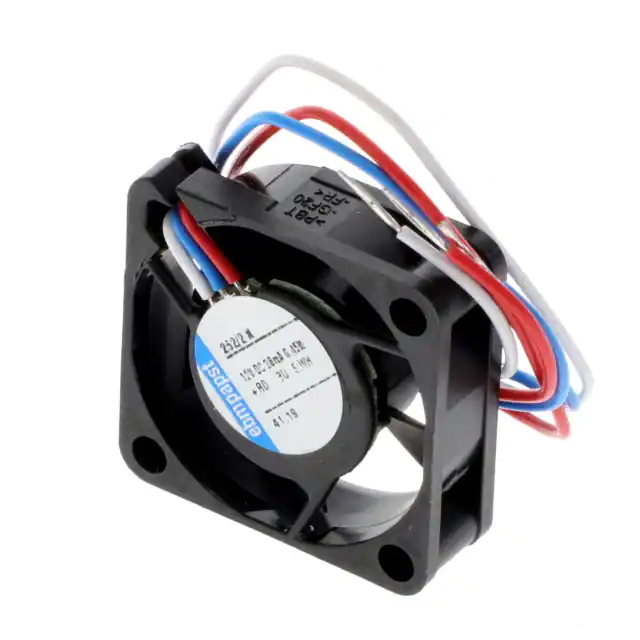

252/2NFAN AXIAL 25X8MM 12VDC WIRE ebm-papst Inc. |
4,454 |
|
数据手册 |
250 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 8.00mm | 1.9 CFM (0.053m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 15.0dB(A) | 500 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
712F/2L-005FAN AXIAL 70X15MM 12VDC RECT ebm-papst Inc. |
1,040 |
|
数据手册 |
700F | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 16.5 CFM (0.462m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 25.0dB(A) | 600 mW | 3300 RPM | 3 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
4414FGFAN AXIAL 119X25.4MM 24VDC WIRE ebm-papst Inc. |
3,559 |
|
数据手册 |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 100.1 CFM (2.80m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 5 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
614NLFAN AXIAL 60X25.4MM 24VDC WIRE ebm-papst Inc. |
2,079 |
|
数据手册 |
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 12.4 CFM (0.347m³/min) | - | Ball | Tubeaxial | - | 16.0dB(A) | 900 mW | 2500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
_Series.jpg)
|
3412NGHFAN AXIAL 92X25.4MM 12VDC WIRE ebm-papst Inc. |
4,485 |
|
数据手册 |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 55.3 CFM (1.55m³/min) | - | Sintec | Tubeaxial | - | 36.0dB(A) | 2.5 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|

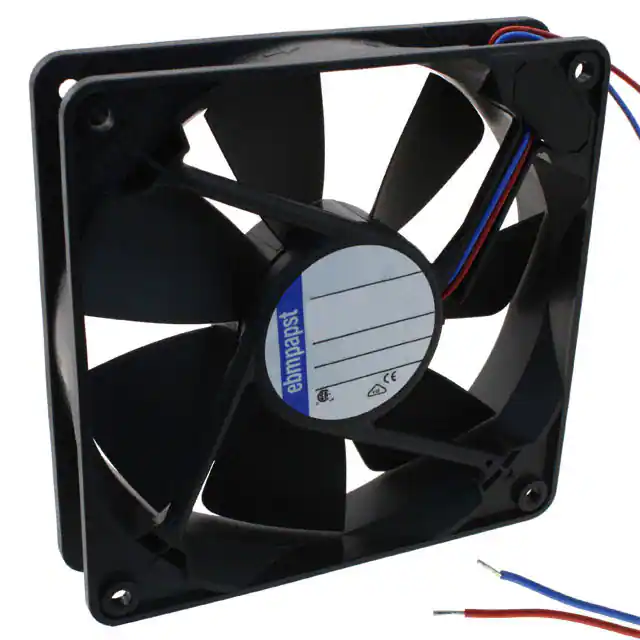

4412FGMFAN AXIAL 119X25.4MM 12VDC WIRE ebm-papst Inc. |
4,306 |
|
数据手册 |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 82.4 CFM (2.31m³/min) | - | Sintec | Tubeaxial | - | 38.0dB(A) | 3.2 W | 2400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
612N/2HFAN AXIAL 60X25.4MM 12VDC WIRE ebm-papst Inc. |
1,075 |
|
数据手册 |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 25.3 CFM (0.708m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 19.0dB(A) | 1.8 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|

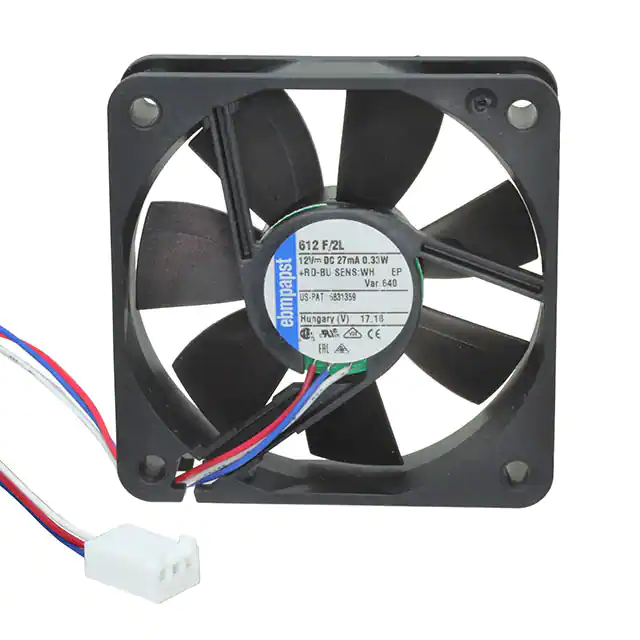

612F/2L-640FAN AXIAL 60X15MM 12VDC RECT ebm-papst Inc. |
3,589 |
|
数据手册 |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 8.8 CFM (0.246m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 11.0dB(A) | 300 mW | 2250 RPM | 3 Position Rectangular Connector | IP20 | -4 ~ 185°F (-20 ~ 85°C) | - | - |
|
8312MFAN AXIAL 80X32MM 12VDC WIRE ebm-papst Inc. |
1,008 |
|
数据手册 |
8300 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 28.3 CFM (0.792m³/min) | - | Ball | Tubeaxial | - | 34.0dB(A) | 1.8 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
4398FAN AXIAL 119X32MM 48VDC TERM ebm-papst Inc. |
2,071 |
|
数据手册 |
4300 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
