直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8418NFAN AXIAL 80X25.4MM 48VDC WIRE ebm-papst Inc. |
4,761 |
|
数据手册 |
8400N | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | - |
|
4312LFAN AXIAL 119X32MM 12VDC WIRE ebm-papst Inc. |
2,444 |
|
数据手册 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 56.0 CFM (1.57m³/min) | - | Ball | Tubeaxial | - | 30.0dB(A) | 1.2 W | 1550 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
4484FDFAN AXIAL 119X25.4MM 24VDC TERM ebm-papst Inc. |
3,906 |
|
数据手册 |
4400F | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 5 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.38 lb (172.37 g) |
|
4318NNFAN AXIAL 119X32MM 48VDC WIRE ebm-papst Inc. |
3,662 |
|
数据手册 |
4300N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 112.0 CFM (3.14m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 4.3 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
8412NH-217FAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
2,770 |
|
数据手册 |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 46.5 CFM (1.30m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.5 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | - |
|
8414NMUFAN AXIAL 80X25.4MM 24VDC WIRE ebm-papst Inc. |
2,328 |
|
数据手册 |
8400NU | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Ball | Tubeaxial | - | 27.0dB(A) | 1.4 W | 2600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.209 lb (94.8 g) |
_Series.jpg)
|
3412N/37GVFAN AXIAL 92X25.4MM 12VDC WIRE ebm-papst Inc. |
4,453 |
|
数据手册 |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.4 CFM (1.38m³/min) | - | Sleeve | Tubeaxial | - | 32.0dB(A) | 2.5 W | 2700 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL, VDE | - |
|
|
4312/2FAN AXIAL 119X32MM 12VDC WIRE ebm-papst Inc. |
4,211 |
|
数据手册 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 5 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.49 lb (222.26 g) |
|

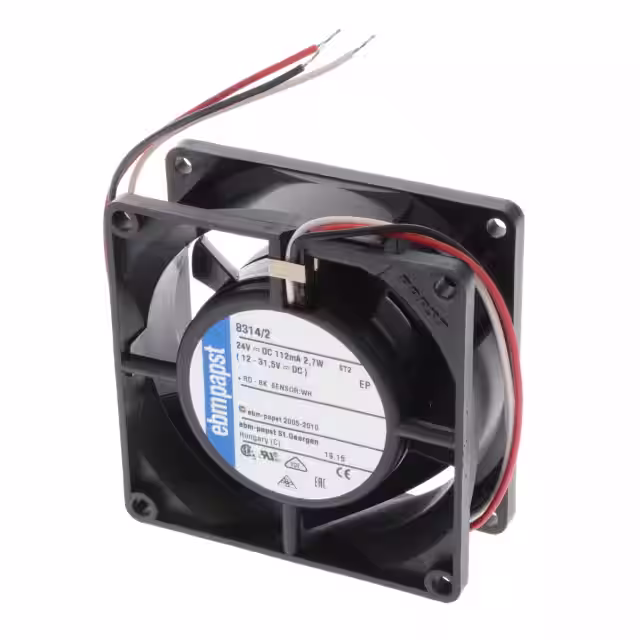

8314/2FAN AXIAL 80X32MM 24VDC WIRE ebm-papst Inc. |
2,531 |
|
数据手册 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 31.8 CFM (0.890m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 2.7 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

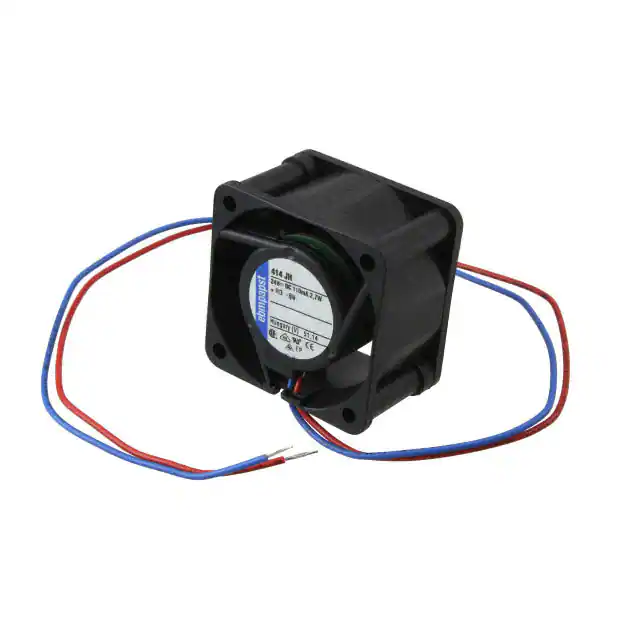

414JHFAN AXIAL 40X25.4MM 24VDC WIRE ebm-papst Inc. |
2,195 |
|
数据手册 |
400J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 25.40mm | 12.9 CFM (0.361m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 3 W | 11700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.111 lb (50.35 g) |
