直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W2G107-AD03-02FAN AXIAL 119X38MM 24VDC TERM ebm-papst Inc. |
3,181 |
|
数据手册 |
W2G107 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 3.3 W | 2800 RPM | 2 Terminals | IP22 | -13 ~ 162°F (-25 ~ 72°C) | EAC, UL | - |
|

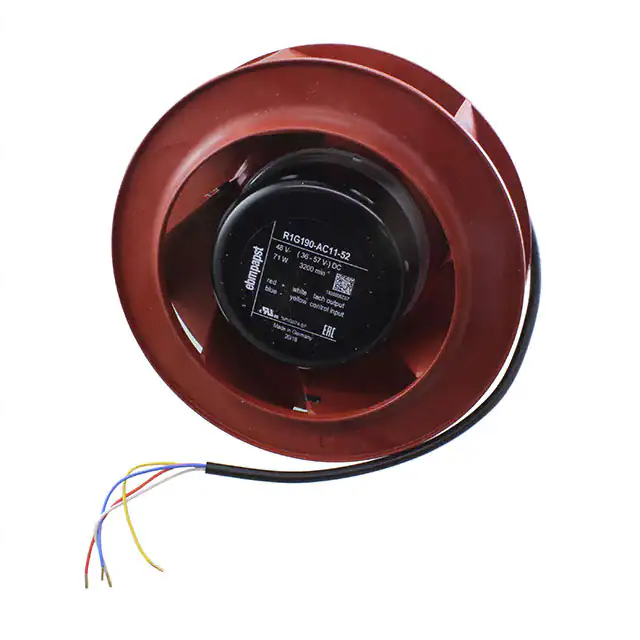

R1G190-AC11-52FAN IMP MTRZD 190X68.5MM 48VDC ebm-papst Inc. |
1,080 |
|
数据手册 |
R1G190 | Bulk | Active | 48VDC | Round - 190mm Dia | 68.50mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 71 W | 3200 RPM | 4 Wire Leads with Splice Terminals | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, EAC, UL | - |
|
R1G225-AF07-52FAN IMP MTRZD 225X99MM 24VDC ebm-papst Inc. |
1,195 |
|
数据手册 |
R1G225 | Bulk | Active | 24VDC | Round - 225mm Dia | 99.00mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 100 W | 2600 RPM | 4 Wire Leads with Splice Terminals | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|
G1G120-AB67-02FAN BLOWER 178X115.0MM 24VDC ebm-papst Inc. |
4,453 |
|
数据手册 |
EC | Box | Active | 24VDC | Rectangular/Rounded - 178mm L x 184mm H | 115.0mm | - | - | Ball | Blower | PWM Control, Speed Sensor (Tach) | - | 40 W | 2200 RPM | 4 Wire Leads | IP22 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | 3.5 lbs (1.6 kg) |
|
D1G133-AB29-52FAN BLOWER CF 170.5X215MM 24VDC ebm-papst Inc. |
2,468 |
|
数据手册 |
D1G133 | Bulk | Active | 24VDC | Rectangular/Rounded - 170.5mm L x 180mm H | 215.0mm | - | - | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 105 W | 1780 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
8412NGMLEFAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
4,294 |
|
数据手册 |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 26.5 CFM (0.742m³/min) | - | Sintec | Tubeaxial | - | 19.0dB(A) | 900 mW | 2050 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
_Series.jpg)
|
3412NGFAN AXIAL 92X25.4MM 12VDC WIRE ebm-papst Inc. |
1,799 |
|
数据手册 |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.4 CFM (1.38m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 2.2 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|

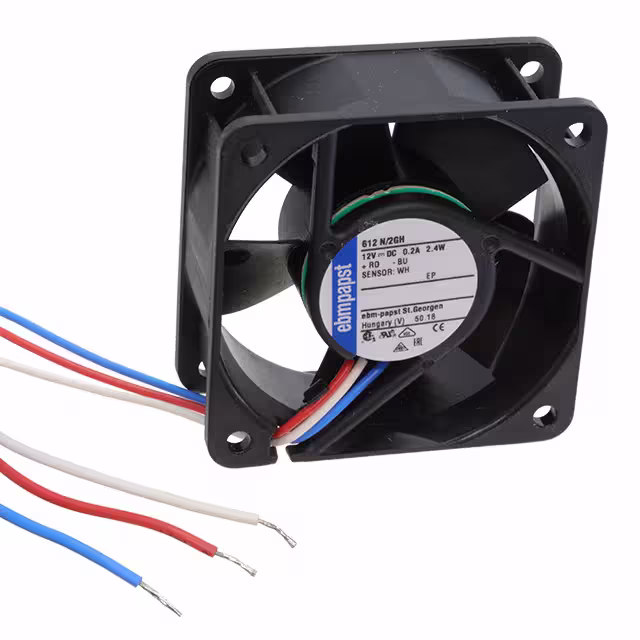

612N/2GHFAN AXIAL 60X25.4MM 12VDC WIRE ebm-papst Inc. |
4,453 |
|
数据手册 |
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 25.3 CFM (0.708m³/min) | - | Sintec | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.4 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
8412NGMVFAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
4,341 |
|
数据手册 |
8400NV | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 2 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3414NGLFAN AXIAL 92X25.4MM 24VDC WIRE ebm-papst Inc. |
3,169 |
|
数据手册 |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 35.9 CFM (1.01m³/min) | - | Sintec | Tubeaxial | - | 23.0dB(A) | 1.4 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
