直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4314NNFAN AXIAL 119X32MM 24VDC WIRE ebm-papst Inc. |
2,867 |
|
数据手册 |
4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 112.0 CFM (3.14m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 4.1 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|
622/2H3PFAN AXIAL 60X25.4MM BALL 12VDC ebm-papst Inc. |
4,485 |
|
数据手册 |
620 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 39.5 CFM (1.11m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 5.5 W | 9700 RPM | - | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | 0.19 lb (86.18 g) |
|

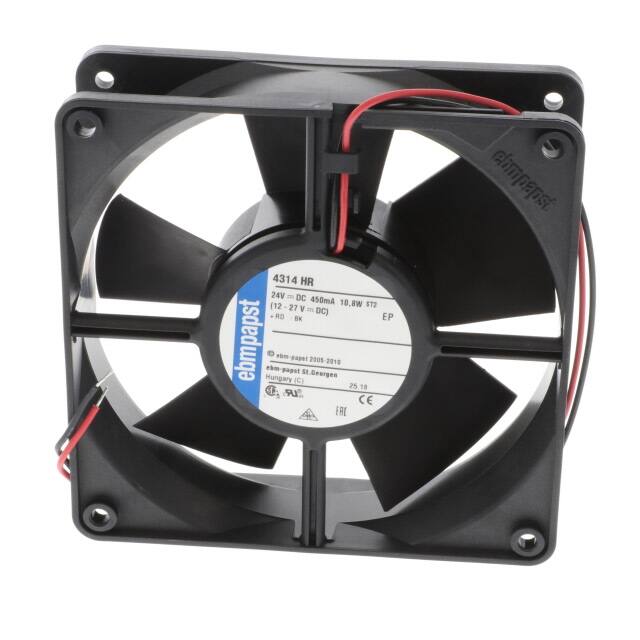

4314HRFAN 24DCV ebm-papst Inc. |
2,181 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
612NGNIFAN AXIAL 60X25.4MM 12VDC WIRE ebm-papst Inc. |
3,869 |
|
数据手册 |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.1 CFM (0.676m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 2.4 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
5214NNFAN AXIAL 127X38MM 24VDC WIRE ebm-papst Inc. |
4,826 |
|
数据手册 |
5200N | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 127.1 CFM (3.56m³/min) | - | Ball | Tubeaxial | - | 46.0dB(A) | 6 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.683 lb (309.8 g) |
_Series.jpg)
|
3412NGMVFAN AXIAL 92X25.4MM 12VDC WIRE ebm-papst Inc. |
1,215 |
|
数据手册 |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 42.4 CFM (1.19m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 2 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
8412N/2FAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
1,154 |
|
数据手册 |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | - |
|
3314NHFAN AXIAL 92X32MM 24VDC WIRE ebm-papst Inc. |
4,904 |
|
数据手册 |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 54.7 CFM (1.53m³/min) | - | Ball | Tubeaxial | - | 38.0dB(A) | 2.6 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | UL | 0.419 lb (190.06 g) |
|
|
5212NMFAN AXIAL 127X38MM 12VDC WIRE ebm-papst Inc. |
2,024 |
|
数据手册 |
5200N | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 110.0 CFM (3.08m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 4.6 W | 2750 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.683 lb (309.8 g) |
|
|
3312NLFAN AXIAL 92X32MM 12VDC WIRE ebm-papst Inc. |
1,209 |
|
数据手册 |
3300N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 24.0dB(A) | 800 mW | 1850 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.419 lb (190.06 g) |
