直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5312/2TDHPFAN AXIAL 140X50.8MM 12VDC WIRE ebm-papst Inc. |
1,142 |
|
数据手册 |
5300TD | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 41 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|
6424HUFAN AXIAL 171.5X50.8MM 24VDC ebm-papst Inc. |
1,361 |
|
数据手册 |
6400U | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 283.0 CFM (7.92m³/min) | - | Ball | Tubeaxial | - | 63.0dB(A) | 26 W | 4000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 131°F (-20 ~ 55°C) | UL | 1.9 lbs (861.8 g) |
|
R1G175-AB75-24FAN IMP MTRZD 175X69MM 12VDC ebm-papst Inc. |
1,946 |
|
数据手册 |
R1G175 | Bulk | Active | 12VDC | Round - 175mm Dia | 69.00mm | - | - | Ball | Motorized Impellers | - | 66.0dB(A) | 27 W | 2800 RPM | 3 Wire Leads with Splice Terminals | IP20 | -13 ~ 140°F (-25 ~ 60°C) | - | - |
|

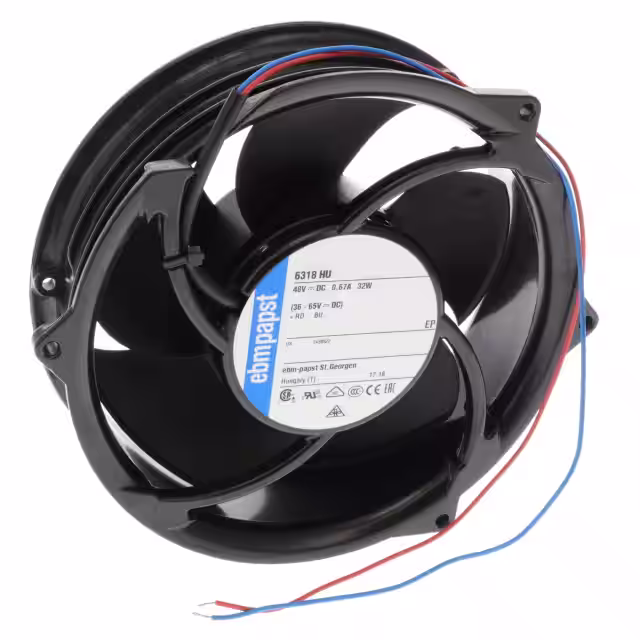

6318HUFAN AXIAL 172X51MM 48VDC WIRE ebm-papst Inc. |
2,288 |
|
数据手册 |
6300H | Bulk | Active | 48VDC | Round - 172mm Dia | 51.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | - | - | - |
|
R1G133-AA61-14FAN IMP MTRZD 133X91MM 12VDC ebm-papst Inc. |
2,557 |
|
数据手册 |
R1G133AA | Bulk | Active | 12VDC | Round - 133mm Dia | 91.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 28 W | 3650 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
DV6318/2TDH4PFAN AXIAL 171.5X50.8MM 48VDC ebm-papst Inc. |
1,370 |
|
数据手册 |
DV6300 | Bulk | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 617.0 CFM (17.28m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 300 W | 6500 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL, VDE | 2.1 lbs (952.5 g) |
|
W1G180-AB57-30FAN AXIAL 220X70MM 24VDC WIRE ebm-papst Inc. |
1,974 |
|
数据手册 |
W1G180 | Bulk | Active | 24VDC | Round - 220mm Dia | 70.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 70.0dB(A) | 35 W | 3170 RPM | 2 Wire Leads with Splice Terminals | IP20 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
R1G225-AF11-52FAN IMP MTRZD 225X99MM 48VDC ebm-papst Inc. |
3,748 |
|
数据手册 |
R1G225 | Bulk | Active | 48VDC | Round - 225mm Dia | 99.00mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 95 W | 2700 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | 3.3 lbs (1.5 kg) |
|
|
R1G175-AF29-04FAN IMP MTRZD 175X69MM 48VDC ebm-papst Inc. |
1,840 |
|
数据手册 |
R1G175 | Bulk | Active | 48VDC | Round - 175mm Dia | 69.00mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 75 W | 4000 RPM | 4 Wire Leads with Splice Terminals | IP22 | -13 ~ 104°F (-25 ~ 40°C) | CCC, EAC | - |
|
R1G190-AC37-52FAN IMP MTRZD 190X68.5MM 24VDC ebm-papst Inc. |
4,119 |
|
数据手册 |
R1G190 | Bulk | Active | 24VDC | Round - 190mm Dia | 68.50mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 80 W | 3250 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | 2.9 lbs (1.3 kg) |
