直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4318/2FAN AXIAL 119X32MM 48VDC WIRE ebm-papst Inc. |
4,170 |
|
数据手册 |
4300 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 5 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.49 lb (222.26 g) |
|
8314MFAN AXIAL 80X32MM 24VDC WIRE ebm-papst Inc. |
4,825 |
|
数据手册 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 28.3 CFM (0.792m³/min) | - | Ball | Tubeaxial | - | 34.0dB(A) | 2.1 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
4318NH3FAN AXIAL 119X32MM 48VDC WIRE ebm-papst Inc. |
3,790 |
|
数据手册 |
4300N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 167.0 CFM (4.68m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 11.5 W | 4050 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|

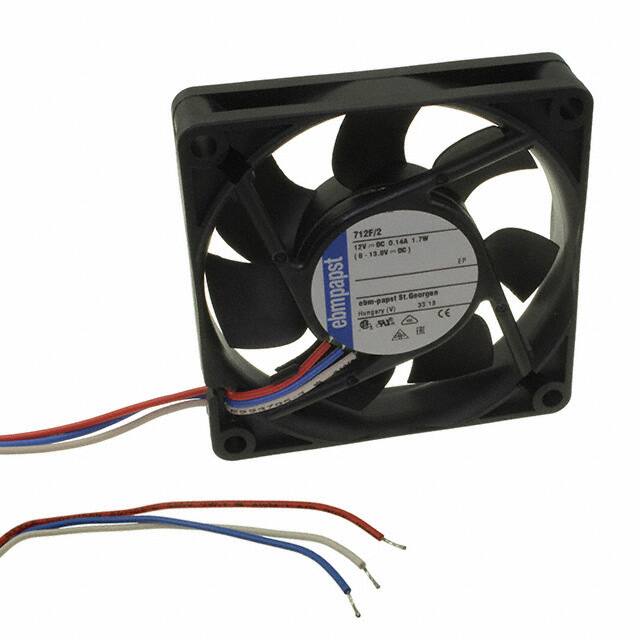

712F/2FAN AXIAL 70X15MM 12VDC WIRE ebm-papst Inc. |
3,973 |
|
数据手册 |
700F | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 25.9 CFM (0.725m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 38.0dB(A) | 1.7 W | 5300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
8312LFAN AXIAL 80X32MM 12VDC WIRE ebm-papst Inc. |
2,367 |
|
数据手册 |
8300 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 19.0 CFM (0.532m³/min) | - | Ball | Tubeaxial | - | 24.0dB(A) | 1 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
4314GFAN AXIAL 119X32MM 24VDC WIRE ebm-papst Inc. |
4,056 |
|
数据手册 |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
|
4312GFAN AXIAL 119X32MM 12VDC WIRE ebm-papst Inc. |
3,862 |
|
数据手册 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
4484FFAN AXIAL 119X25.4MM 24VDC TERM ebm-papst Inc. |
1,090 |
|
数据手册 |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 5 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.38 lb (172.37 g) |
|
|
8394FAN AXIAL 80X32MM 24VDC TERM ebm-papst Inc. |
3,589 |
|
数据手册 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.5 W | - | 2 Terminals | - | - | - | 0.38 lb (172.37 g) |
|
|
4412FGFAN AXIAL 119X25.4MM 12VDC WIRE ebm-papst Inc. |
2,979 |
|
数据手册 |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 100.1 CFM (2.80m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 5.3 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
