直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W2G107-AD01-13FAN AXIAL 119X38MM 12VDC TERM ebm-papst Inc. |
2,708 |
|
数据手册 |
W2G107 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 70.0dB(A) | 3.5 W | 2800 RPM | 2 Terminals | IP22 | -13 ~ 162°F (-25 ~ 72°C) | UL | - |
|
RLF100-11/14/19FAN BLOWER CF 127X25.4MM 24VDC ebm-papst Inc. |
1,201 |
|
数据手册 |
RLF100 | Bulk | Active | 24VDC | Square/Rounded - 127mm L x 127mm H | 25.40mm | 37.7 CFM (1.06m³/min) | 1.728 in H2O (430.0 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection | - | 8.6 W | 5100 RPM | 3 Wire Leads | IP20 | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | - |
|

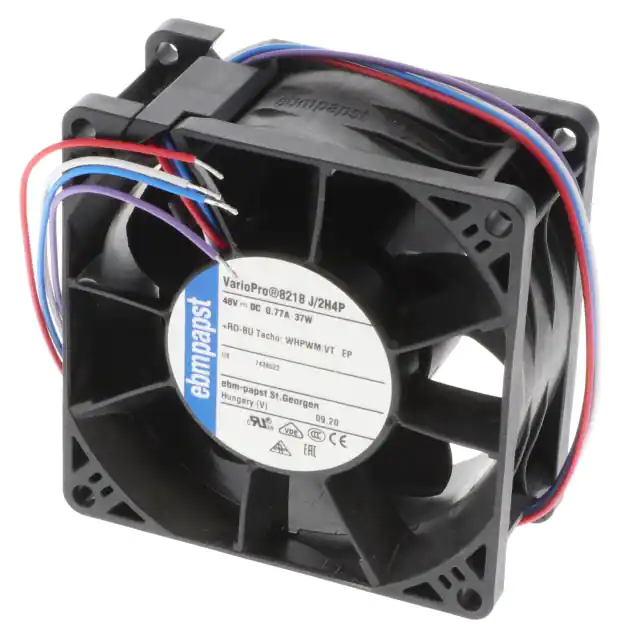

8218J/2H4PFAN AXIAL 80X38MM 48VDC WIRE ebm-papst Inc. |
3,153 |
|
数据手册 |
8200J, S-Force | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 36 W | 14000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
4114N/2HU-272FAN AXIAL 119X38MM 24VDC WIRE ebm-papst Inc. |
3,179 |
|
数据手册 |
4100NU | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 11 W | 4400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 131°F (-20 ~ 55°C) | UL | 0.882 lb (400.07 g) |
|

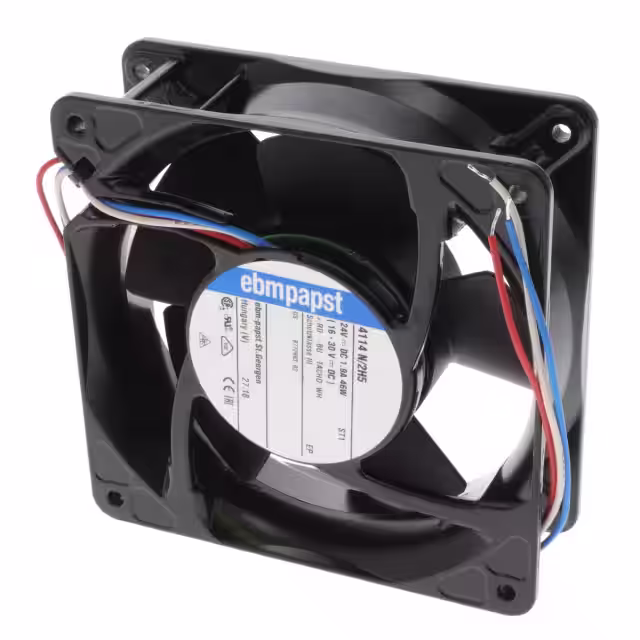

4114N/2H5FAN AXIAL 119X38MM 24VDC WIRE ebm-papst Inc. |
4,036 |
|
数据手册 |
4100N, S-Force | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 230.0 CFM (6.44m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 45 W | 7500 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
7118NFAN AXIAL 150X38MM 48VDC WIRE ebm-papst Inc. |
4,184 |
|
数据手册 |
7100N | Bulk | Active | 48VDC | Round - 150mm Dia | 38.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 12 W | 2850 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, UL, VDE | 1.4 lbs (635.0 g) |
|

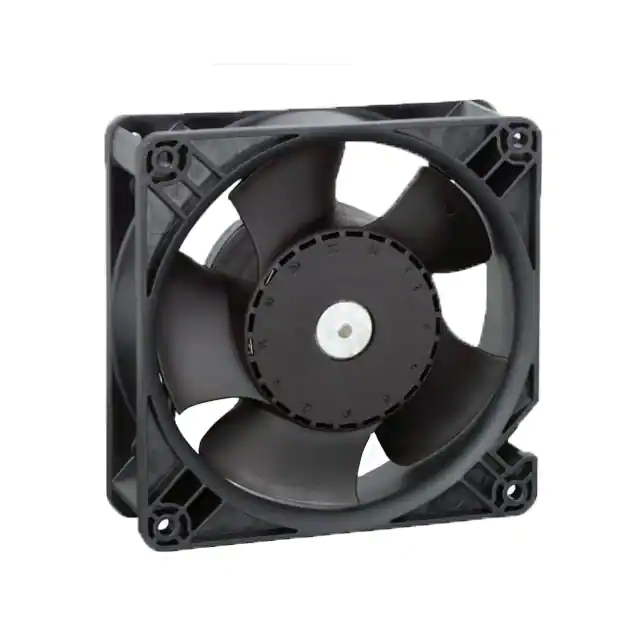

DV4114/2NFAN AXIAL 119X38MM 24VDC WIRE ebm-papst Inc. |
2,755 |
|
数据手册 |
DV4100 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 165.0 CFM (4.62m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 61.0dB(A) | 20.5 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | - |
|
|
7114NHFAN AXIAL 150X38MM 24VDC WIRE ebm-papst Inc. |
2,530 |
|
数据手册 |
7100N | Bulk | Active | 24VDC | Round - 150mm Dia | 38.00mm | 247.0 CFM (6.92m³/min) | - | Ball | Tubeaxial | - | 59.0dB(A) | 19 W | 3350 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, UL, VDE | 1.4 lbs (635.0 g) |
_Series.JPG)
|
6224NUFAN AXIAL 171.5X50.8MM 24VDC ebm-papst Inc. |
1,888 |
|
数据手册 |
6200NU | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 15.6 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 162°F (-20 ~ 72°C) | UL | 1.9 lbs (861.8 g) |
|
RV45-3/14FAN BLOWER CF 69.5X54.95MM 24VDC ebm-papst Inc. |
1,038 |
|
数据手册 |
RV45 | Bulk | Active | 24VDC | Rectangular/Rounded - 69.5mm L x 63.9mm H | 54.95mm | 14.5 CFM (0.406m³/min) | - | Ball | Blower, Centrifugal | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 43 W | 40000 RPM | 3 Position Rectangular Connector and 4 Lead Wires | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.298 lb (135.17 g) |
