直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

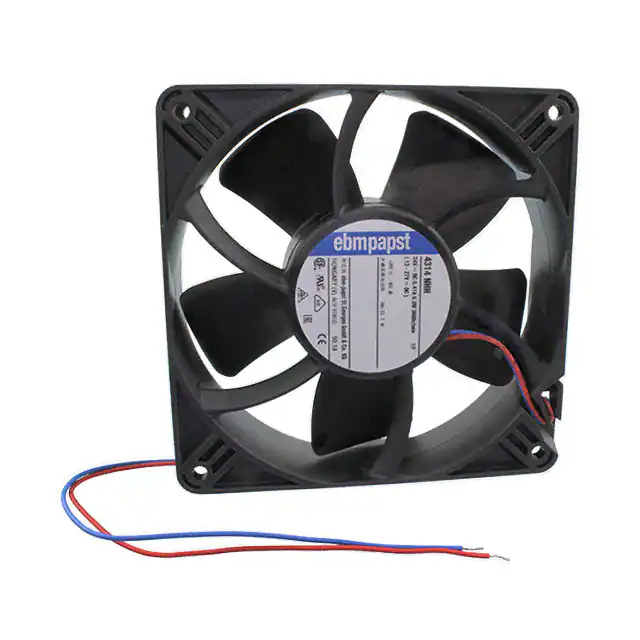

4314NHHFAN AXIAL 119X32MM 24VDC WIRE ebm-papst Inc. |
1,894 |
|
数据手册 |
4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 116.5 CFM (3.26m³/min) | - | Ball | Tubeaxial | - | 49.0dB(A) | 6 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
|
RL65-21/12/2FAN BLOWER 97X33MM 12VDC WIRE ebm-papst Inc. |
2,824 |
|
数据手册 |
RL65 | Bulk | Active | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 32.9 CFM (0.921m³/min) | - | Ball | Blower | Speed Sensor (Tach) | 62.0dB(A) | 15 W | 4500 RPM | 3 Wire Leads | - | - | - | 0.37 lb (167.83 g) |
|
4312NHHFAN AXIAL 119X32MM 12VDC WIRE ebm-papst Inc. |
2,477 |
|
数据手册 |
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 147.0 CFM (4.12m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 10.7 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
4318FAN AXIAL 119X32MM 48VDC WIRE ebm-papst Inc. |
2,410 |
|
数据手册 |
4300 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
4414MLFAN AXIAL 119X38MM 24VDC WIRE ebm-papst Inc. |
3,744 |
|
数据手册 |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | - | Ball | Tubeaxial | - | 40.0dB(A) | 3.2 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | - | 0.595 lb (269.89 g) |
|
|
4418MFAN AXIAL 119X38MM 48VDC WIRE ebm-papst Inc. |
1,135 |
|
数据手册 |
4400 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 108.3 CFM (3.03m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 4.2 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
4374SFAN AXIAL 119X32MM 24VDC TERM ebm-papst Inc. |
3,642 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 4.9 W | 2800 RPM | 3 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | CSA, UL, VDE | 0.485 lb (219.99 g) |
|
4414/2N-522FAN AXIAL 119X38MM 24VDC WIRE ebm-papst Inc. |
4,037 |
|
数据手册 |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 120.7 CFM (3.38m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 5.4 W | 3650 RPM | 3 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 0.631 lb (286.22 g) |
|
8315100134FAN AXIAL 80X38MM 24VDC WIRE ebm-papst Inc. |
4,474 |
|
数据手册 |
AxiForce | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 126.5 CFM (3.54m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 44 W | 16500 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
4414HHFAN AXIAL 119X38MM 24VDC WIRE ebm-papst Inc. |
3,368 |
|
数据手册 |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 167.9 CFM (4.70m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 14 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.553 lb (250.84 g) |
