固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT187LYF-333JRAD LEADED FIXED SHLDED INDUCTOR Central Technologies |
526 |
|
数据手册 |
ct187lyf | - | Bulk | Active | - | - | 33 mH | ±5% | - | - | - | 80Ohm | - | 300kHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
CTM2F-100K10UH AXIAL MOLDED INDUCTOR Central Technologies |
1,432 |
|
数据手册 |
CTM2F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 10 µH | ±10% | 335 mA | - | Unshielded | 900mOhm Max | 55 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
CTM2F-330K33UH AXIAL MOLDED INDUCTOR Central Technologies |
496 |
|
数据手册 |
CTM2F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 33 µH | ±10% | 185 mA | - | Unshielded | 3Ohm Max | 65 @ 2.5MHz | 19MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|

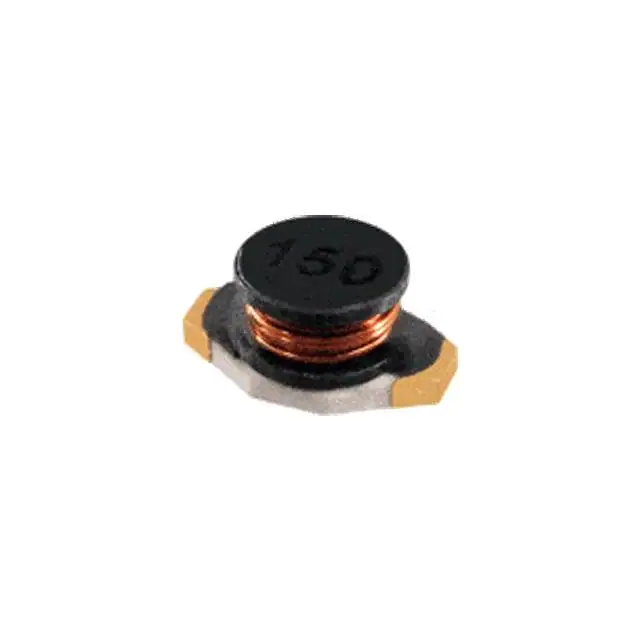

CTDO1608CF-334330UH SMD POWER INDUCTOR Central Technologies |
7,156 |
|
数据手册 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 160 mA | 180mA | Unshielded | 3.8Ohm | - | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDO1608CF-10310 UH 20% SMD POWER INDUCTOR Central Technologies |
4,655 |
|
数据手册 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.1 A | 1.1A | Unshielded | 160mOhm | - | 35MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDO1608CF-4724.7UH SMD POWER INDUCTOR Central Technologies |
1,623 |
|
数据手册 |
CTDO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.5 A | 1.5A | Unshielded | 90mOhm | - | 50MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDO1608CF-47347UH SMD POWER INDUCTOR Central Technologies |
1,526 |
|
数据手册 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 500 mA | 500mA | Unshielded | 640mOhm | - | 14MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDO1608CF-224220 UH 20% SMD POWER INDUCTOR Central Technologies |
1,393 |
|
数据手册 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 200 mA | 220mA | Unshielded | 3.1Ohm | - | 5.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDO1608CF-3323.3 UH 20% SMD POWER INDUCTOR Central Technologies |
651 |
|
数据手册 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 2 A | 2A | Unshielded | 80mOhm | - | 70MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDO1608CF-104100 UH 20% SMD POWER INDUCTOR Central Technologies |
642 |
|
数据手册 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 300 mA | 310mA | Unshielded | 1.3Ohm | - | 9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
