固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTCDRH127F-7R6N7.6UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,995 |
|
数据手册 |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.6 µH | -20%, +40% | 5.9 A | - | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127F-120M12UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,950 |
|
数据手册 |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 4.9 A | - | Shielded | 24.3mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127F-470M47UH SMD SHIELDED POWR INDUCTOR Central Technologies |
990 |
|
数据手册 |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.5 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

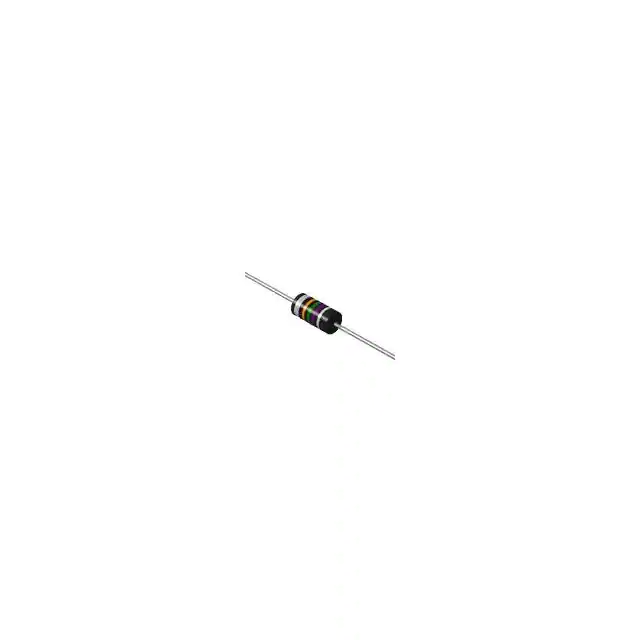

CTM1F-R12HAXIAL MOLDED INDUCTOR Central Technologies |
8,947 |
|
数据手册 |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 120 nH | - | 1.27 A | - | Unshielded | 90mOhm Max | 40 @ 25MHz | 640MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-R33M.33UH AXIAL MOLDED INDUCTOR Central Technologies |
4,995 |
|
数据手册 |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 330 nH | ±20% | 815 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-R27HAXIAL MOLDED INDUCTOR Central Technologies |
3,997 |
|
数据手册 |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 270 nH | - | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-1R0K1.0UH AXIAL MOLDED INDUCTOR Central Technologies |
390 |
|
数据手册 |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±10% | 385 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-120K12UH AXIAL MOLDED INDUCTOR Central Technologies |
300 |
|
数据手册 |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 12 µH | ±10% | 155 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-180K18UH AXIAL MOLDED INDUCTOR Central Technologies |
295 |
|
数据手册 |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 18 µH | ±10% | 145 mA | - | Unshielded | 3.1Ohm Max | 50 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-681K680UH AXIAL MOLDED INDUCTOR Central Technologies |
295 |
|
数据手册 |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 680 µH | ±10% | 30 mA | - | Unshielded | 60Ohm Max | 30 @ 790kHz | 4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
