固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTDO1608CF-1021.0 UH 20% SMD POWER INDUCTOR Central Technologies |
397 |
|
数据手册 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 2.9 A | 2.9A | Unshielded | 50mOhm | - | 130MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDO1608CF-6826.8UH SMD POWER INDUCTOR Central Technologies |
378 |
|
数据手册 |
CTDO1608F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 1.4 A | 1.2A | Unshielded | 130mOhm | - | 45MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|

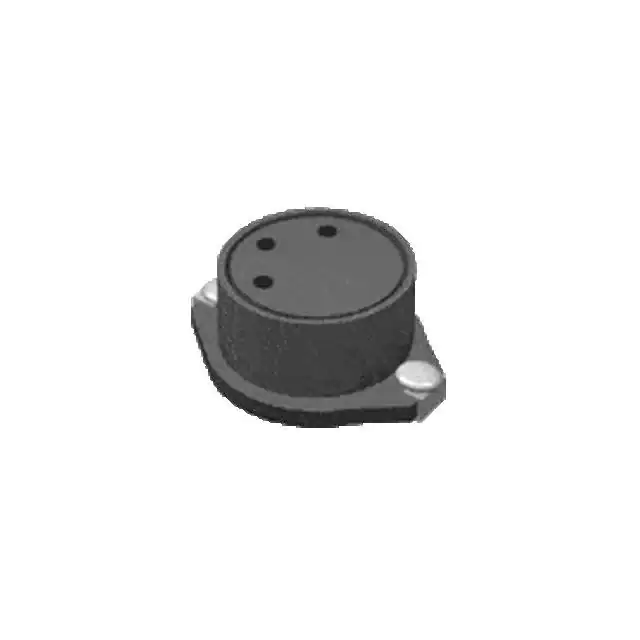

CTDS3316PF-15315UH SMD SHIELDED POWR INDUCTOR Central Technologies |
3,000 |
|
数据手册 |
CTDS3316F | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.5 A | 2A | Shielded | 150mOhm Max | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
CTDS3316PF-47347UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,345 |
|
数据手册 |
CTDS3316F | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 800 mA | 1A | Shielded | 472mOhm Max | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
CTDS3316PF-22322UH SMD SHIELDED POWR INDUCTOR Central Technologies |
538 |
|
数据手册 |
CTDS3316F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.3 A | 1.6A | Shielded | 207mOhm Max | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
CT636CYF-2R2MSMD SHIELDED POWER INDUCTOR Central Technologies |
967 |
|
数据手册 |
ct636cyf | - | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | - | - | - | 28mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
|
CT636CYF-470MSMD SHIELDED POWER INDUCTOR Central Technologies |
855 |
|
数据手册 |
ct636cyf | - | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | - | - | - | 350mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|

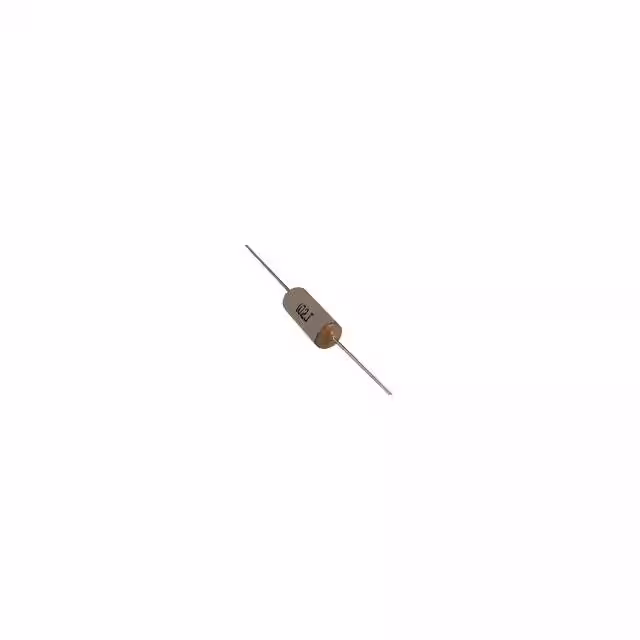

CTS4HTF-473J47000UH XIALSHIELDED INDUCTR Central Technologies |
103 |
|
数据手册 |
CTS4HTF | Axial | Tape & Reel (TR) | Active | Molded | - | 47 mH | ±5% | 27 mA | 5mA | Shielded | 217Ohm Max | 50 @ 79kHz | 370kHz | - | -55°C ~ 150°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
CTDT3316PF-334330UH SMD SHIELDED POWR INDUCTOR Central Technologies |
4,179 |
|
数据手册 |
CTDT3316PF | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 400 mA | - | Shielded | 730mOhm Max | - | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
CTDT3316PF-474470UH SMD SHIELDED POWR INDUCTOR Central Technologies |
252 |
|
数据手册 |
CTDT3316PF | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 350 mA | - | Shielded | 880mOhm Max | - | 4MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
