固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

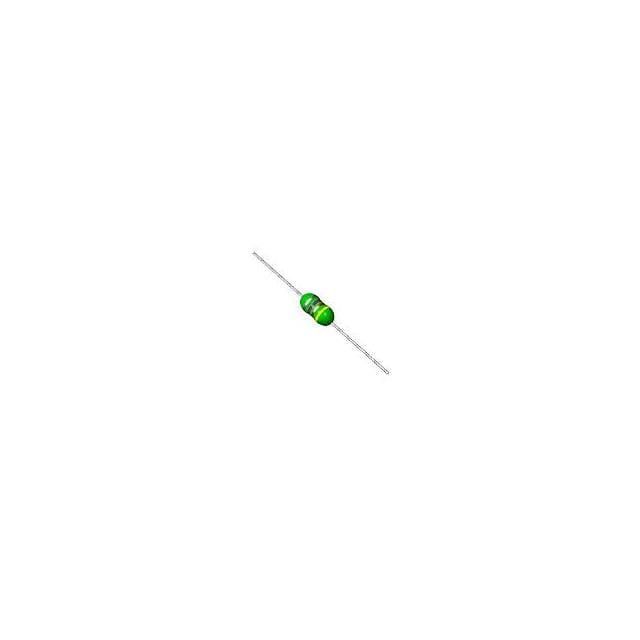

CTC3F-4R7J4.7UH AXIAL CONF COATD INDUCTOR Central Technologies |
2,560 |
|
数据手册 |
ctc3f | - | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±5% | - | - | - | 390mOhm | - | 80MHz | - | -40°C ~ 125°C | - | - | Through Hole | - | - | - |
|
CTDO1813PF-472HC4.7UH SMD POWER INDUCTOR Central Technologies |
11,007 |
|
数据手册 |
CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 2.2 A | 2.6A | Unshielded | 54mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
CTDO1813PF-223HC22UH SMD POWER INDUCTOR Central Technologies |
4,780 |
|
数据手册 |
CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1 A | 1.2A | Unshielded | 250mOhm Max | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
CTDO1813PF-473HC47UH SMD POWER INDUCTOR Central Technologies |
2,407 |
|
数据手册 |
CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 720 mA | 870mA | Unshielded | 470mOhm Max | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
CTC1F-270JAXL LEADED CONF COATED INDUCTOR Central Technologies |
198 |
|
数据手册 |
ctc1f | - | Tape & Reel (TR) | Active | - | - | 27 µH | ±5% | - | - | - | 3.5Ohm | - | 20MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
CTRFB1010F-331K330UH RADIAL FIXED INDUCTOR Central Technologies |
498 |
|
数据手册 |
CTRFB1010F | Radial, Vertical Cylinder | Bulk | Active | - | - | 330 µH | ±10% | 1.4 A | 1.1A | Unshielded | 570mOhm Max | - | 3.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
CTCDRH73F-220MSMD SHIELDED POWER INDUCTOR Central Technologies |
1,840 |
|
数据手册 |
CTCDRH73F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.1 A | - | Shielded | 190mOhm Max | - | - | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
CTH6VF-4R7K4.7UH MINI AXL P-LINE INDUCTR Central Technologies |
5,180 |
|
数据手册 |
CTH6F | Axial | Bulk | Active | Wirewound | - | 4.7 µH | ±10% | 1.7 A | 1.4A | Unshielded | 70mOhm Max | - | 86MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.138" Dia x 0.394" L (3.50mm x 10.00mm) | - |
|
|
CTH6VF-270K27UH MINI AXL P-LINE INDUCTOR Central Technologies |
698 |
|
数据手册 |
CTH6F | Axial | Bulk | Active | Wirewound | - | 27 µH | ±10% | 950 mA | 580mA | Unshielded | 220mOhm Max | - | 8MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.138" Dia x 0.394" L (3.50mm x 10.00mm) | - |
|
|
CTH6VF-181K180UH MINI AXL P-LINE INDUCTOR Central Technologies |
579 |
|
数据手册 |
CTH6F | Axial | Bulk | Active | Wirewound | - | 180 µH | ±10% | 380 mA | 220mA | Unshielded | 1.4Ohm Max | - | 2.8MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.138" Dia x 0.394" L (3.50mm x 10.00mm) | - |
