场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TK17A80W,S4XMOSFET N-CH 800V 17A TO220SIS Toshiba Semiconductor and Storage |
3,404 | - |
|
数据手册 |
DTMOSIV | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 17A (Ta) | 10V | 290mOhm @ 8.5A, 10V | 4V @ 850µA | 32 nC @ 10 V | ±20V | 2050 pF @ 300 V | - | 45W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
|
TK25A60X,S5XMOSFET N-CH 600V 25A TO220SIS Toshiba Semiconductor and Storage |
1,806 | - |
|
数据手册 |
DTMOSIV-H | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Ta) | 10V | 125mOhm @ 7.5A, 10V | 3.5V @ 1.2mA | 40 nC @ 10 V | ±30V | 2400 pF @ 300 V | - | 45W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220SIS |
|
TK110E65Z,S1X650V DTMOS VI TO-220 110MOHM Toshiba Semiconductor and Storage |
2,746 | - |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Ta) | 10V | 110mOhm @ 12A, 10V | 4V @ 1.02mA | 40 nC @ 10 V | ±30V | 2250 pF @ 300 V | - | 190W (Tc) | 150°C | - | - | Through Hole | TO-220 |
|
TK17E80W,S1XMOSFET N-CHANNEL 800V 17A TO220 Toshiba Semiconductor and Storage |
4,858 | - |
|
数据手册 |
DTMOSIV | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 17A (Ta) | 10V | 290mOhm @ 8.5A, 10V | 4V @ 850µA | 32 nC @ 10 V | ±20V | 2050 pF @ 300 V | - | 180W (Tc) | 150°C | - | - | Through Hole | TO-220 |
|
|
TK090E65Z,S1X650V DTMOS VI TO-220 90MOHM Toshiba Semiconductor and Storage |
2,461 | - |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 90mOhm @ 15A, 10V | 4V @ 1.27mA | 47 nC @ 10 V | ±30V | 2780 pF @ 300 V | - | 230W (Tc) | 150°C | - | - | Through Hole | TO-220 |
|

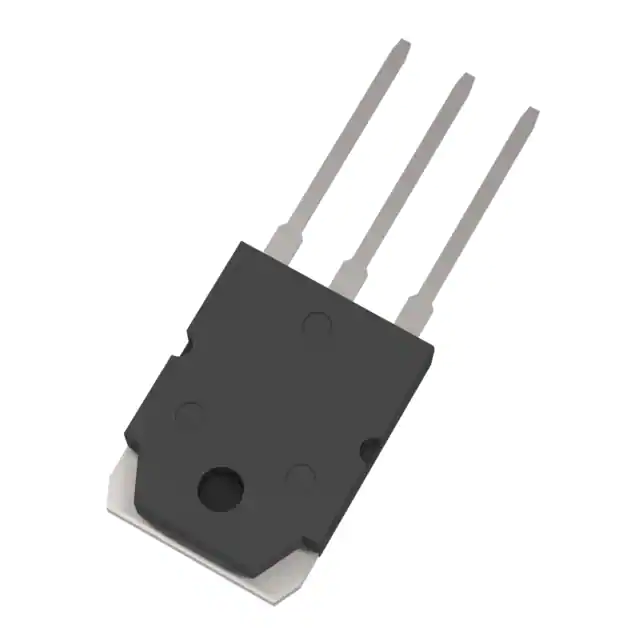

TK20J60W,S1VEX35 PB-F POWER MOSFET TRANSISTOR Toshiba Semiconductor and Storage |
3,963 | - |
|
数据手册 |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Ta) | 10V | 155mOhm @ 10A, 10V | 3.7V @ 1mA | 48 nC @ 10 V | ±30V | 1680 pF @ 300 V | - | 165W (Tc) | 150°C | - | - | Through Hole | TO-3P(N) |
|
|
TK31E60X,S1XMOSFET N-CH 600V 30.8A TO220 Toshiba Semiconductor and Storage |
2,017 | - |
|
数据手册 |
DTMOSIV-H | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30.8A (Ta) | 10V | 88mOhm @ 9.4A, 10V | 3.5V @ 1.5mA | 65 nC @ 10 V | ±30V | 3000 pF @ 300 V | - | 230W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
TK31N60X,S1FMOSFET N-CH 600V 30.8A TO247 Toshiba Semiconductor and Storage |
2,926 | - |
|
数据手册 |
DTMOSIV-H | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30.8A (Ta) | 10V | 88mOhm @ 9.4A, 10V | 3.5V @ 1.5mA | 65 nC @ 10 V | ±30V | 3000 pF @ 300 V | - | 230W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247 |
|
|
TK090N65Z,S1FMOSFET N-CH 650V 30A TO247 Toshiba Semiconductor and Storage |
1,561 | - |
|
数据手册 |
DTMOSVI | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 90mOhm @ 15A, 10V | 4V @ 1.27mA | 47 nC @ 10 V | ±30V | 2780 pF @ 300 V | - | 230W (Tc) | 150°C | - | - | Through Hole | TO-247 |
|
|
TK28N65W5,S1FX35 PB-F POWER MOSFET TRANSISTOR Toshiba Semiconductor and Storage |
4,631 | - |
|
数据手册 |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 27.6A (Ta) | 10V | 130mOhm @ 13.8A, 10V | 4.5V @ 1.6mA | 90 nC @ 10 V | ±30V | 3000 pF @ 300 V | - | 230W (Tc) | 150°C | - | - | Through Hole | TO-247 |
