场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF820APBF-BE3MOSFET N-CH 500V 2.5A TO220AB Vishay Siliconix |
714 | - |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.5A (Tc) | - | 3Ohm @ 1.5A, 10V | 4.5V @ 250µA | 17 nC @ 10 V | ±30V | 340 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
SI7112DN-T1-E3MOSFET N-CH 30V 11.3A PPAK1212-8 Vishay Siliconix |
2,700 | - |
|
数据手册 |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.3A (Tc) | 4.5V, 10V | 7.5mOhm @ 17.8A, 10V | 1.5V @ 250µA | 27 nC @ 4.5 V | ±12V | 2610 pF @ 15 V | - | 1.5W (Ta) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
SI4634DY-T1-E3MOSFET N-CH 30V 24.5A 8SO Vishay Siliconix |
4,810 | - |
|
数据手册 |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24.5A (Tc) | 4.5V, 10V | 5.2mOhm @ 15A, 10V | 2.6V @ 250µA | 68 nC @ 10 V | ±20V | 3150 pF @ 15 V | - | 2.5W (Ta), 5.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SIR106DP-T1-RE3MOSFET N-CH 100V 16.1A PPAK Vishay Siliconix |
6,804 | - |
|
数据手册 |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 16.1A (Ta), 65.8A (Tc) | 7.5V, 10V | 8mOhm @ 15A, 10V | 3.4V @ 250µA | 64 nC @ 10 V | ±20V | 3610 pF @ 50 V | - | 3.2W (Ta), 83.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SISS5708DN-T1-GE3N-CHANNEL 150 V (D-S) MOSFET POW Vishay Siliconix |
6,000 | - |
|
数据手册 |
TrenchFET® | PowerPAK® 1212-8S | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 9.3A (Ta), 33.8A (Tc) | 7.5V, 10V | 23mOhm @ 10A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 975 pF @ 75 V | - | 5W (Ta), 65.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8S |
|
IRFRC20TRLPBF-BE3MOSFET N-CH 600V 2A DPAK Vishay Siliconix |
4,376 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 2A (Tc) | 10V | 4.4Ohm @ 1.2A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|

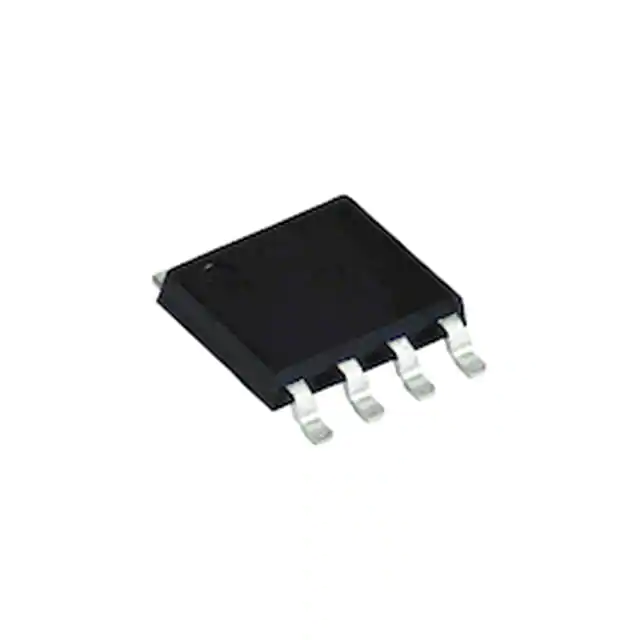

SQJA26EP-T1_GE3AUTOMOTIVE N-CHANNEL 30 V (D-S) Vishay Siliconix |
2,990 | - |
|
数据手册 |
- | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 410A (Tc) | 4.5V, 10V | 0.77mOhm @ 15A, 10V | 2.5V @ 250µA | 195 nC @ 10 V | ±20V | 9778 pF @ 25 V | - | 500W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SIR516DP-T1-RE3N-CHANNEL 100 V (D-S) MOSFET POW Vishay Siliconix |
5,280 | - |
|
数据手册 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 16.8A (Ta), 63.7A (Tc) | 7.5V, 10V | 8mOhm @ 10A, 10V | 4V @ 250µA | 27 nC @ 10 V | ±20V | 1920 pF @ 50 V | - | 5W (Ta), 71.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
IRFB11N50APBF-BE3MOSFET N-CH 500V 11A TO220AB Vishay Siliconix |
2,187 | - |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 11A (Tc) | 10V | 520mOhm @ 6.6A, 10V | 4V @ 250µA | 52 nC @ 10 V | ±30V | 1423 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRF820STRRPBFMOSFET N-CH 500V 2.5A D2PAK Vishay Siliconix |
1,536 | - |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.5A (Tc) | 10V | 3Ohm @ 1.5A, 10V | 4V @ 250µA | 24 nC @ 10 V | ±20V | 360 pF @ 25 V | - | 3.1W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
