直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB1224EH-TZUKFAN AXIAL 120X25.4MM 24VDC WIRE Delta Electronics |
3,211 |
|
数据手册 |
FFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.4dB(A) | 15.12 W | 4000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|

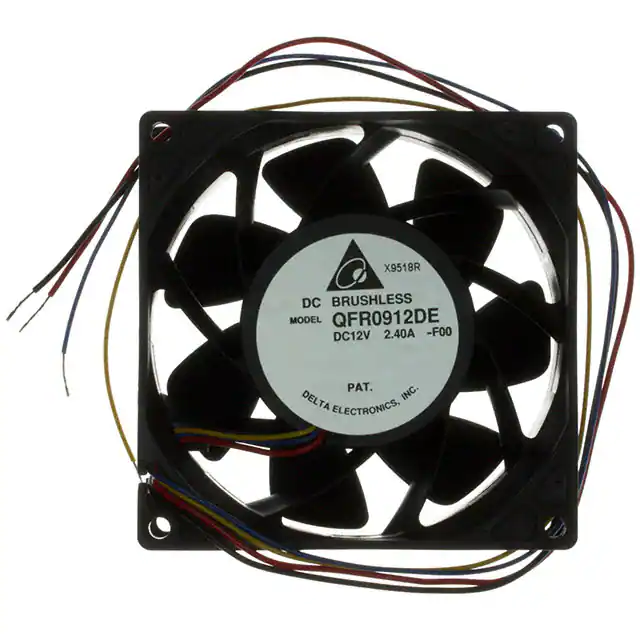

QFR0912DE-F00FAN AXIAL 92X38MM 12VDC WIRE Delta Electronics |
3,553 |
|
数据手册 |
QFR | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 131.8 CFM (3.69m³/min) | 1.466 in H2O (365.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 19.2 W | 8300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.43 lb (195.04 g) |
|
BFB1212L-F00FAN BLOWER 120X32MM 12VDC WIRE Delta Electronics |
2,393 |
|
数据手册 |
BFB | Tray | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 24.7 CFM (0.692m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 4.8 W | 2100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|
GFC0412DS-DU49FAN AXIAL DUAL 40X56MM 12VDC Delta Electronics |
3,917 |
|
数据手册 |
GFC | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 35.9 CFM (1.01m³/min) | 3.985 in H2O (992.6 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.5dB(A) | 22.2 W | 23000 Front, 17400 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.183 lb (83.01 g) |
|
AFB1212HHE-T8U5FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
3,892 |
|
数据手册 |
AFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.52 W | 2900 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
1-NPO/603-1075FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
3,678 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 82.7 CFM (2.32m³/min) | 0.246 in H2O (61.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.5dB(A) | 2.76 W | 2500 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPO/603-1332FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
1,013 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 62.9 CFM (1.76m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 1.68 W | 1900 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPO/603-1076FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
1,033 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.5dB(A) | 3.96 W | 2800 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPO/603-1334FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
1,124 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 6.36 W | 3400 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPO/603-1338FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
1,521 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 103.7 CFM (2.90m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 4.8 W | 3100 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
