直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB1224SHE-R00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
3,171 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 53.0dB(A) | 12 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
AFB1212ME-R00FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
4,980 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 3.12 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
AFB1212ME-F00FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
1,758 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 3.12 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

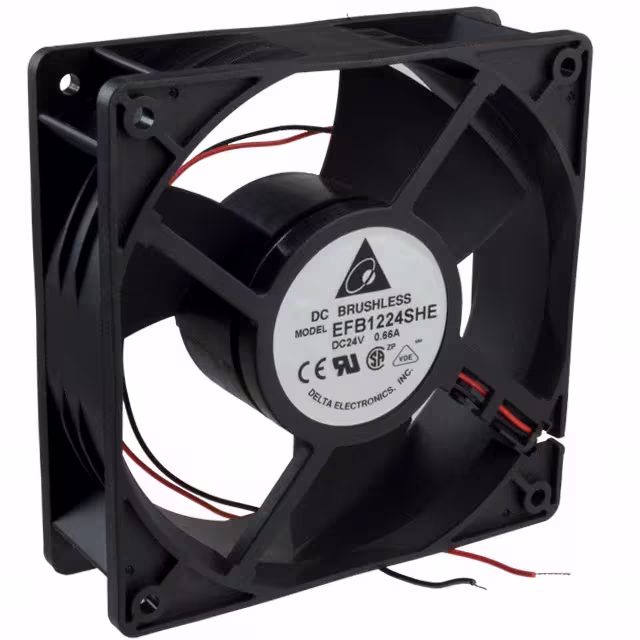

EFB1224SHEFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
2,540 |
|
数据手册 |
EFB | Tray | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 141.9 CFM (3.97m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | - | 52.5dB(A) | 10.6 W | 3700 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.653 lb (296.2 g) |
|
AFB0824SH-R00FAN AXIAL 80X25.4MM 24VDC WIRE Delta Electronics |
4,186 |
|
数据手册 |
AFB | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 3.84 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
FFB0912EHE-R00FAN AXIAL 92X38MM 12VDC WIRE Delta Electronics |
1,995 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 55.0dB(A) | 12 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
FFB0912VHE-F00FAN AXIAL 92X38MM 12VDC WIRE Delta Electronics |
4,507 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 85.5 CFM (2.39m³/min) | 0.406 in H2O (101.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.5dB(A) | 6 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

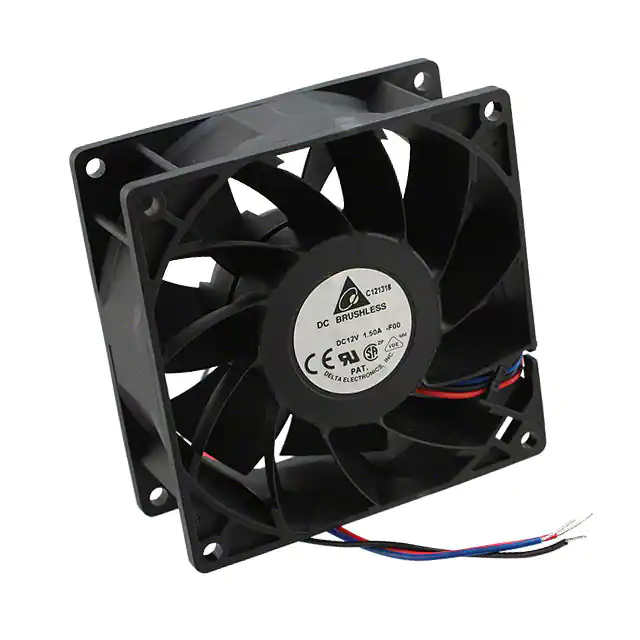

FFB0912HHE-R00FAN AXIAL 92X38MM 12VDC WIRE Delta Electronics |
3,548 |
|
数据手册 |
FFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 71.7 CFM (2.01m³/min) | 0.298 in H2O (74.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.5dB(A) | 4.2 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
|
FFB0948HH-F00FAN AXIAL 92X25.4MM 48VDC WIRE Delta Electronics |
4,146 |
|
数据手册 |
FFB | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.40mm | 70.2 CFM (1.97m³/min) | 0.242 in H2O (60.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.1dB(A) | 6.72 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.286 lb (129.73 g) |
|
|
FFB0848SHE-F00FAN AXIAL 80X38MM 48VDC WIRE Delta Electronics |
4,456 |
|
数据手册 |
FFB | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 68.5 CFM (1.92m³/min) | 0.591 in H2O (147.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.5dB(A) | 7.68 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
