直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFC0612DE-PP01FAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
2,552 |
|
数据手册 |
FFC | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 54.8 CFM (1.53m³/min) | 1.182 in H2O (294.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 10.8 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.234 lb (106.14 g) |
|
PFB0612SHE-R00FAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
4,423 |
|
数据手册 |
PFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 43.6 CFM (1.22m³/min) | 0.918 in H2O (228.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 50.5dB(A) | 5.76 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
AFB1224HHE-R00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
4,012 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 7.2 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

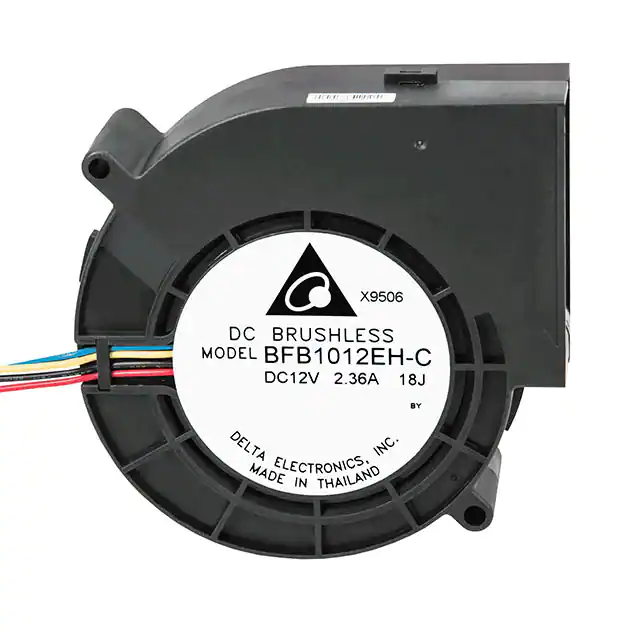

BFB1012EH-C18JFAN BLOWER 96.6X32.9MM 12VDC Delta Electronics |
1,980 |
|
数据手册 |
BFB - High-Performance | Box | Obsolete | 12VDC | Rectangular/Rounded - 96.6mm L x 94.3mm H | 32.90mm | 45.5 CFM (1.27m³/min) | 3.694 in H2O (920.1 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 23.64 W | 5800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.397 lb (180.08 g) |
|
|
AFB1248VHE-F00FAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
2,055 |
|
数据手册 |
AFB | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 8.64 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
AFB1248VHE-R00FAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
3,248 |
|
数据手册 |
AFB | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 8.64 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
BFB1224VH-F00FAN BLOWER 120X32MM 24VDC WIRE Delta Electronics |
3,649 |
|
数据手册 |
BFB | Bulk | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 39.5 CFM (1.11m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 55.5dB(A) | 14.4 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
|
EFB1248VHFFAN AXIAL 120X32MM 48VDC WIRE Delta Electronics |
2,101 |
|
数据手册 |
EFB | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 139.8 CFM (3.91m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | - | - | 10.6 W | 4400 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.551 lb (249.93 g) |
|
AFB1224SHF-F00FAN AXIAL 120X32MM 24VDC WIRE Delta Electronics |
4,094 |
|
数据手册 |
AFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 174.5 CFM (4.89m³/min) | 0.656 in H2O (163.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 16.8 W | 4300 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.609 lb (276.24 g) |
|
GFB0412EHS-DF00FAN AXIAL DUAL 40X56MM 12VDC Delta Electronics |
1,182 |
|
数据手册 |
GFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 32.2 CFM (0.902m³/min) | 2.631 in H2O (655.4 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 64.5dB(A) | 15.6 W | 16000 Front, 15400 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.183 lb (83.01 g) |
