直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

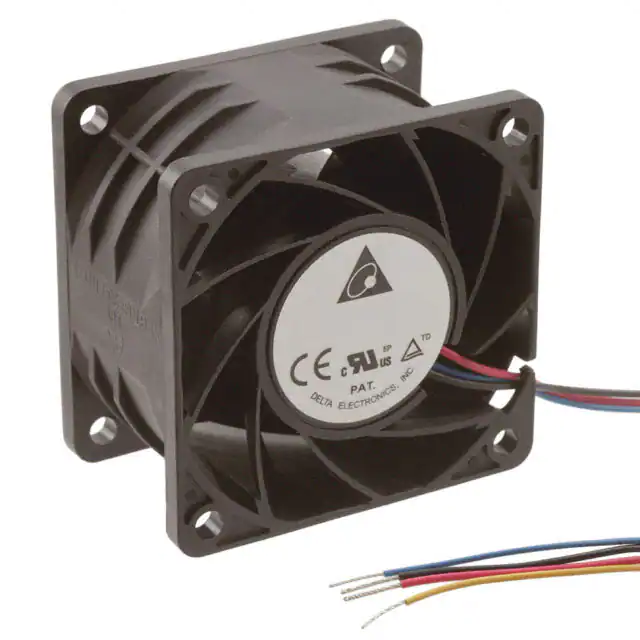

PFR0612XHE-F00FAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
3,709 |
|
数据手册 |
PFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 76.2 CFM (2.13m³/min) | 3.185 in H2O (793.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 67.7dB(A) | 27.6 W | 16500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.287 lb (130.18 g) |
|

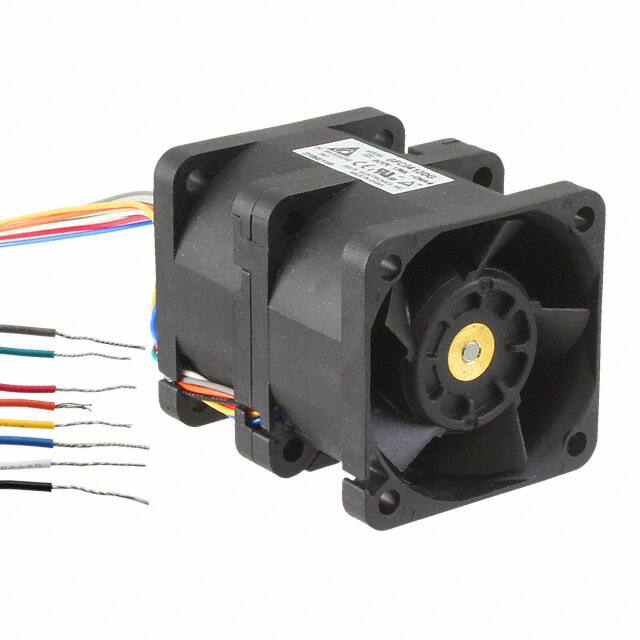

GFC0412DG-CMA4FAN AXIAL DUAL 40X48MM 12VDC Delta Electronics |
4,643 |
|
数据手册 |
GFC | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 32.4 CFM (0.907m³/min) | 2.382 in H2O (593.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.4dB(A) | 16.8 W | 15150 Front, 14300 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.167 lb (75.75 g) |
|
AFB1248HHE-R00FAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
2,272 |
|
数据手册 |
AFB | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 7.2 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
BFB1212HH-F00FAN BLOWER 120X32MM 12VDC WIRE Delta Electronics |
1,739 |
|
数据手册 |
BFB | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 32.5 CFM (0.910m³/min) | 1.063 in H2O (264.8 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 13.2 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|

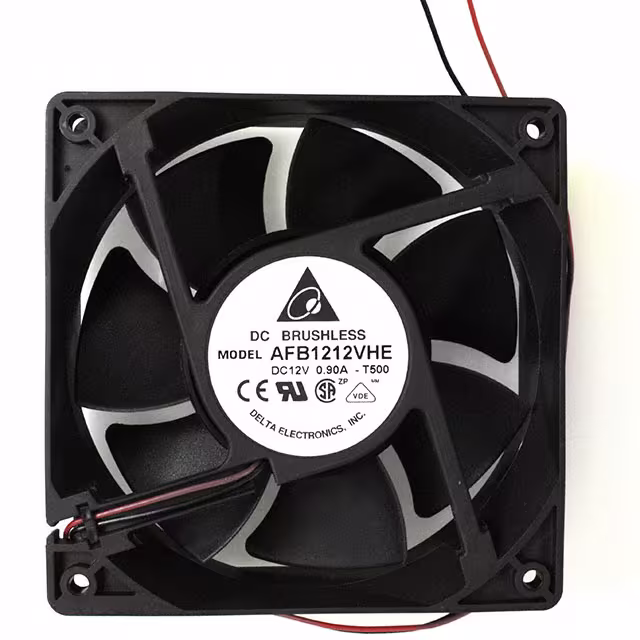

AFB1212VHE-T500FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
3,855 |
|
数据手册 |
AFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 129.9 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 7.2 W | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
BFB1012M-AFAN BLOWER 97.2X33MM 12VDC WIRE Delta Electronics |
1,961 |
|
数据手册 |
BFB | Tray | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.6 CFM (0.633m³/min) | 0.893 in H2O (222.4 Pa) | Ball | Blower | Locked Rotor Protection | 52.5dB(A) | 6.6 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.366 lb (166.01 g) |
|
BFB1024HH-F00FAN BLOWER 97.2X33MM 24VDC WIRE Delta Electronics |
1,040 |
|
数据手册 |
BFB | Bulk | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 28.3 CFM (0.792m³/min) | 1.299 in H2O (323.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 13.2 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
1-NPO/603-1082FAN AXL 120X38MM 12VDC RECT CONN Delta Electronics |
4,617 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 12.6 W | 3700 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.564 lb (255.83 g) |
|
1-NPT/603-1336FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
4,052 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.5dB(A) | 6.36 W | 3400 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPL/603-1548FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
1,413 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 82.7 CFM (2.32m³/min) | 0.246 in H2O (61.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.5dB(A) | 2.76 W | 2500 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
