直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-NPO/603-1339FAN AXL 120X38MM 12VDC RECT CONN Delta Electronics |
1,908 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
1-NPT/603-1342FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
4,301 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 103.8 CFM (2.91m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.5dB(A) | 4.8 W | 3100 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPO/603-1329FAN AXL 120X38MM 12VDC RECT CONN Delta Electronics |
2,781 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.52 W | 2900 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

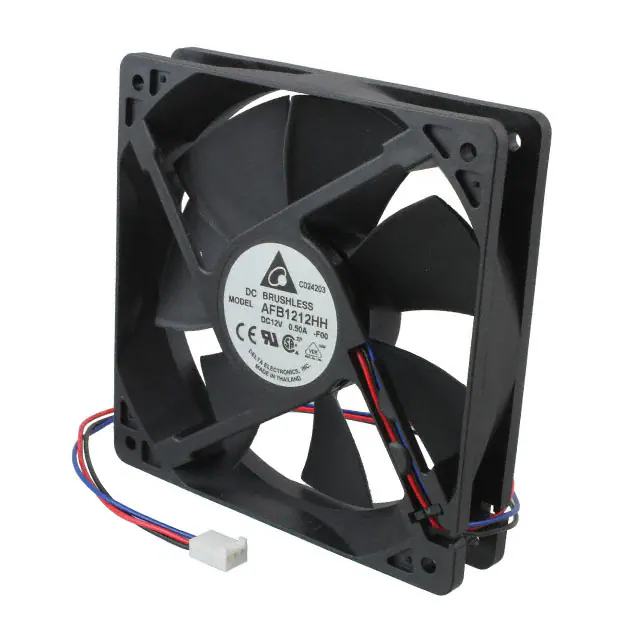

1-NPL/603-1337FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
4,004 |
|
数据手册 |
AFB | Box | Discontinued at Digi-Key | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB(A) | 6.36 W | 3400 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPT/603-1331FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
2,676 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.5dB(A) | 3.96 W | 2800 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPO/603-1326FAN AXL 120X38MM 12VDC RECT CONN Delta Electronics |
4,369 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 3.84 W | 2600 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
GFC0412DS-CMA5FAN AXIAL DUAL 40X56MM 12VDC Delta Electronics |
2,228 |
|
数据手册 |
GFC | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 25.3 CFM (0.708m³/min) | 2.703 in H2O (673.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 10.2 W | 17200 Front, 15700 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.176 lb (80.00 g) |
|
FFB1212VHFAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
3,371 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 126.9 CFM (3.55m³/min) | 0.326 in H2O (81.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.9dB(A) | 9.48 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
GFC03812HG-DV46FAN AXIAL DUAL 38X48MM 12VDC Delta Electronics |
2,967 |
|
数据手册 |
GFC | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 48.00mm | 26.4 CFM (0.739m³/min) | 3.866 in H2O (963.0 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 18.24 W | 21700 Front, 20000 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.167 lb (75.75 g) |
|
FFB0812GHE-F00FAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
2,940 |
|
数据手册 |
FFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 89.9 CFM (2.52m³/min) | 0.922 in H2O (229.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.8dB(A) | 13.8 W | 6600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
