直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB1212VH-R00FAN BLOWER 120X32MM 12VDC WIRE Delta Electronics |
1,399 |
|
数据手册 |
BFB | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 39.6 CFM (1.11m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Blower | Locked Rotor Sensor | 56.5dB(A) | 15 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|
PFR0612DHE-SP00FAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
1,686 |
|
数据手册 |
PFR | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 66.0 CFM (1.85m³/min) | 2.502 in H2O (623.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.3dB(A) | 19.2 W | 14500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.287 lb (130.18 g) |
|
BCB1012GH-F00FAN BLOWER 97.2X25MM 12VDC WIRE Delta Electronics |
3,476 |
|
数据手册 |
BCB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 25.00mm | 30.6 CFM (0.857m³/min) | 2.941 in H2O (732.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 67.3dB(A) | 26.4 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.391 lb (177.35 g) |
|
|
PFB0824EHEFAN AXIAL 80X38MM 24VDC WIRE Delta Electronics |
2,123 |
|
数据手册 |
PFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 79.4 CFM (2.22m³/min) | 0.767 in H2O (191.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 8.64 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|
1-NPL/603-1550FAN AXL 120X38MM 12VDC RECT CONN Delta Electronics |
3,414 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 53.0dB(A) | 12.6 W | 3700 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
FFB1212HH-F00FAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
3,879 |
|
数据手册 |
FFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 114.7 CFM (3.21m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.7dB(A) | 7.8 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
GFB0812SHG-F00FAN AXIAL DUAL 80X50.8MM 12VDC Delta Electronics |
3,537 |
|
数据手册 |
GFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 50.80mm | 68.6 CFM (1.92m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 8.76 W | 4200 Front, 3750 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.364 lb (165.11 g) |
|

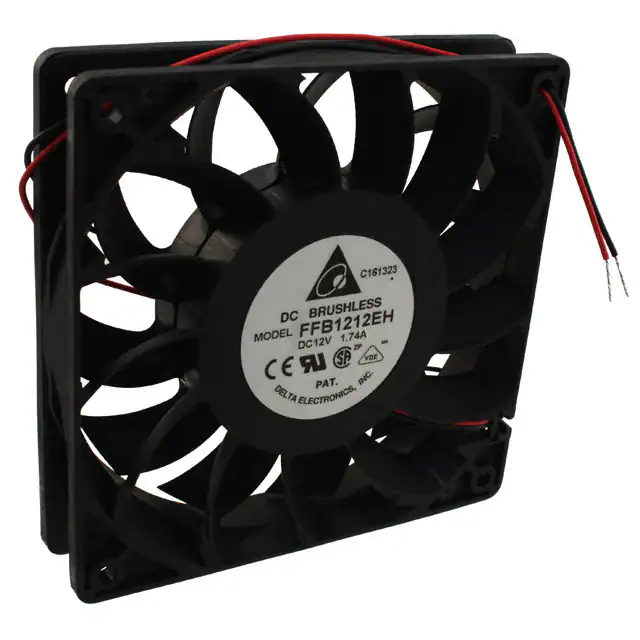

FFB1212EHFAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
4,981 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.4dB(A) | 17.4 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
|
FFB1224SHE-F00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
2,263 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.5dB(A) | 19.2 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
FFB1224VHE-R00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
4,371 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 53.0dB(A) | 13.44 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
