直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB0812GHE-R00FAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
1,304 |
|
数据手册 |
PFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 86.4 CFM (2.42m³/min) | 0.898 in H2O (223.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 55.5dB(A) | 10.2 W | 6100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|

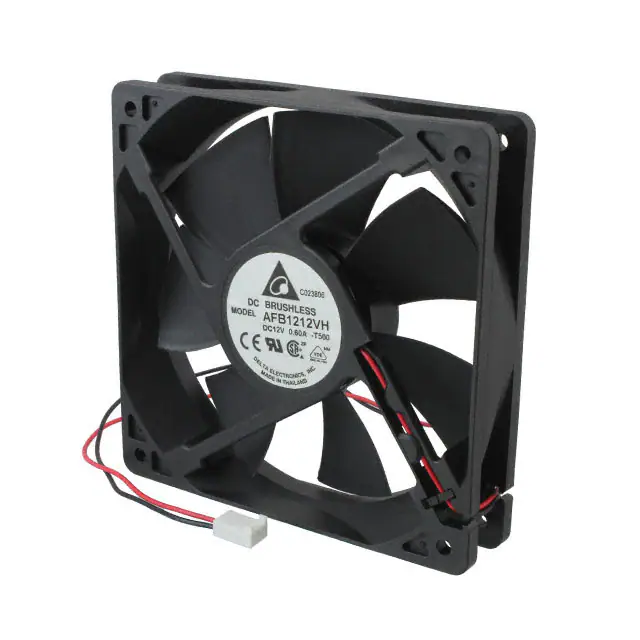

1-NPO/603-1202FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
4,803 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 103.7 CFM (2.90m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 4.8 W | 3100 RPM | 3 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

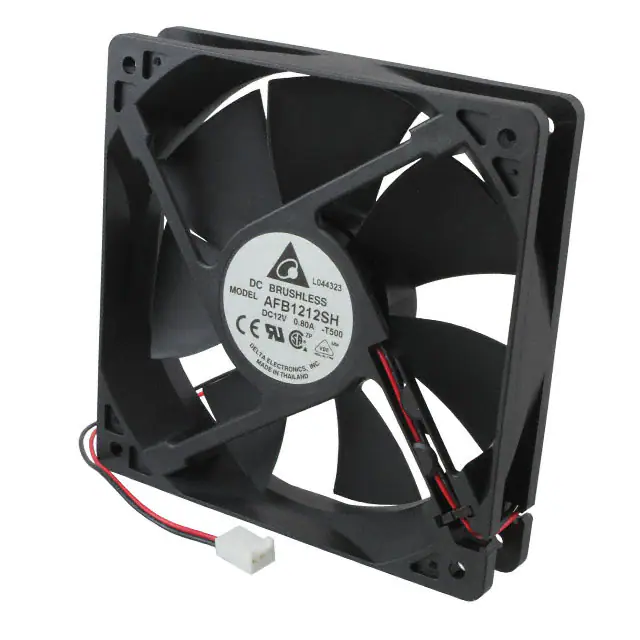

1-NPO/603-1178FAN AXIAL 120X25.4MM 12VDC RECT Delta Electronics |
2,786 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 6.36 W | 3400 RPM | 3 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
AFB1212VHE-C-R00FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
2,864 |
|
数据手册 |
AFB | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 148.3 CFM (4.15m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 8.16 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|
AFB1212HHE-CR00FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
3,985 |
|
数据手册 |
AFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.8 CFM (3.66m³/min) | 0.452 in H2O (112.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 6.12 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|
FFB1212VHEFAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
4,276 |
|
数据手册 |
FFB | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 12 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|

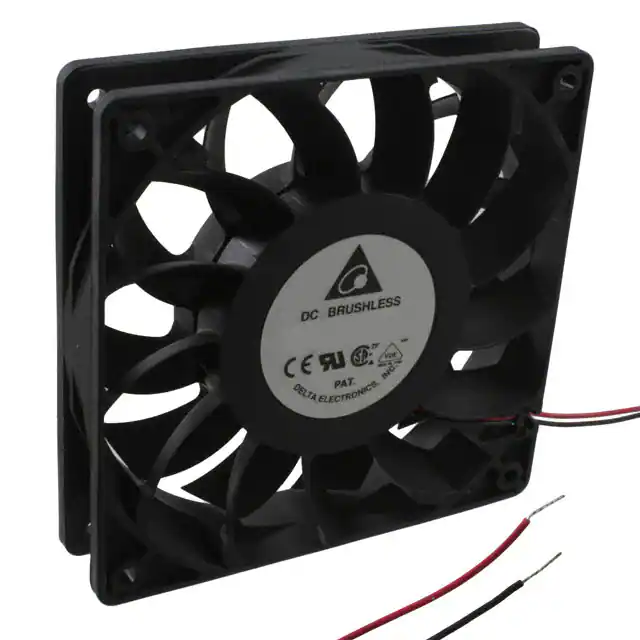

FFB1212SHEFAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
4,709 |
|
数据手册 |
FFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.5dB(A) | 18 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
PFB0924EHEFAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
4,761 |
|
数据手册 |
PFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 103.7 CFM (2.90m³/min) | 0.691 in H2O (172.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 7.92 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
PFB0924UHEFAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
1,812 |
|
数据手册 |
PFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 21.84 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
PFB0812UHEFAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
1,778 |
|
数据手册 |
PFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 61.0dB(A) | 18.6 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
