直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB0624GHE-F00FAN AXIAL 60X38MM 24VDC WIRE Delta Electronics |
1,075 |
|
数据手册 |
PFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 55.6 CFM (1.56m³/min) | 1.444 in H2O (359.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.5dB(A) | 11.52 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
AFB1224HHE-T6M3FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
1,410 |
|
数据手册 |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 7.2 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
AFB0648VH-AFAN AXIAL 60X25.4MM 48VDC WIRE Delta Electronics |
4,336 |
|
数据手册 |
AFB | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 30.5 CFM (0.854m³/min) | 0.345 in H2O (85.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 4.32 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
FFB0924EHE-SP20FAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
4,375 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control | 55.0dB(A) | 12 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
|
BFB1012H-R00FAN BLOWER 97.2X33MM 12VDC WIRE Delta Electronics |
2,107 |
|
数据手册 |
BFB | Tray | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Blower | Locked Rotor Sensor | 52.0dB(A) | 9.6 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
|
FFB0812VHFAN AXIAL 80X25.4MM 12VDC WIRE Delta Electronics |
2,205 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 54.6 CFM (1.53m³/min) | 0.291 in H2O (72.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.4dB(A) | 4.08 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.254 lb (115.21 g) |
|
|
AFB0824SHEFAN AXIAL 80X38MM 24VDC WIRE Delta Electronics |
4,311 |
|
数据手册 |
AFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 72.8 CFM (2.04m³/min) | 0.547 in H2O (136.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 8.4 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.344 lb (156.04 g) |
|

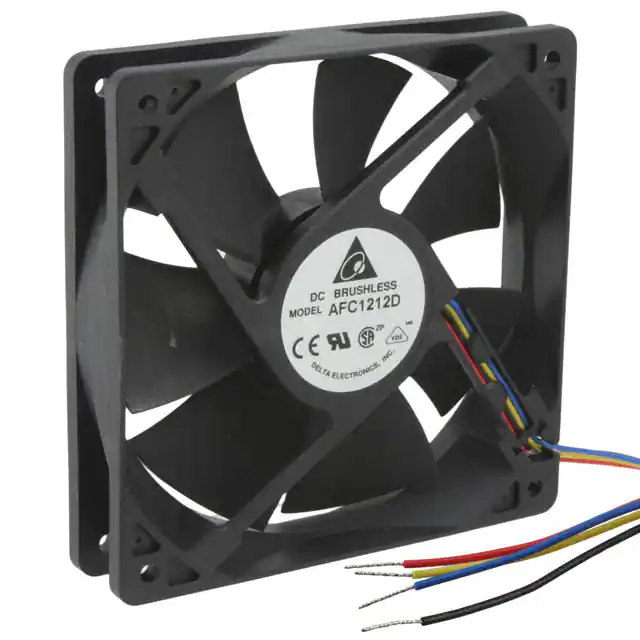

AFC1212D-F00FAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
2,158 |
|
数据手册 |
AFC | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.5dB(A) | 6.36 W | 3400 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
QFR0812UHEFAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
4,779 |
|
数据手册 |
QFR | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 105.2 CFM (2.95m³/min) | 1.335 in H2O (332.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.0dB(A) | 13.8 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
|
FFB0812VH-F00FAN AXIAL 80X25.4MM 12VDC WIRE Delta Electronics |
2,221 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 54.6 CFM (1.53m³/min) | 0.291 in H2O (72.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.4dB(A) | 4.08 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.254 lb (115.21 g) |
