直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB0412SHN-BF00FAN AXIAL 40X28MM 12VDC WIRE Delta Electronics |
1,784 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.0 CFM (0.672m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.5dB(A) | 6 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
QFR0812DE-F00FAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
2,581 |
|
数据手册 |
QFR | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 105.2 CFM (2.95m³/min) | 1.335 in H2O (332.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 13.8 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|

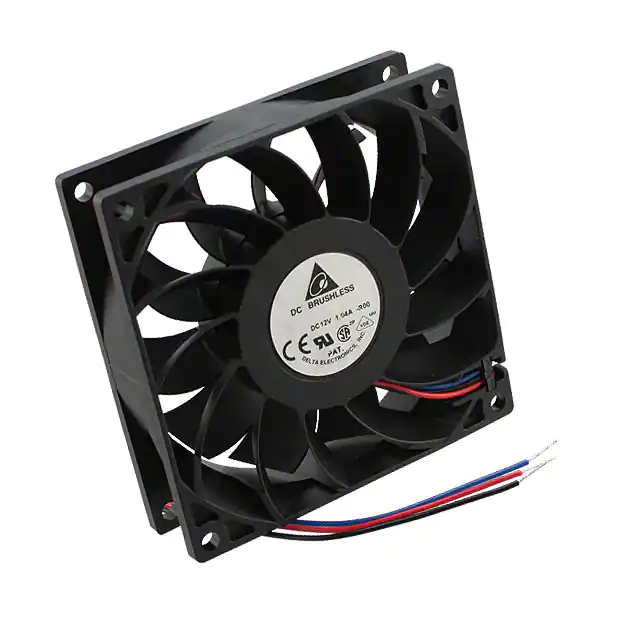

FFB0912VH-R00FAN DC AXIAL 12V 92X25 WITH ROTA Delta Electronics |
2,207 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FFB0912VH-F00FAN AXIAL 92X25.4MM 12VDC WIRE Delta Electronics |
1,467 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 82.0 CFM (2.30m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.2dB(A) | 7.2 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.286 lb (129.73 g) |
|
FFB0812EHE-R00FAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
3,715 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 80.2 CFM (2.25m³/min) | 0.812 in H2O (202.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.5dB(A) | 10.8 W | 5700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
AFB0924HH-AFAN AXIAL 92X25.4MM 24VDC WIRE Delta Electronics |
1,175 |
|
数据手册 |
AFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 72.8 CFM (2.04m³/min) | 0.263 in H2O (65.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 4.32 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|
BFB0712L-AF00FAN BLOWER 75.7X25MM 12VDC WIRE Delta Electronics |
1,864 |
|
数据手册 |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 9.3 CFM (0.260m³/min) | 0.286 in H2O (71.2 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 1.2 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|

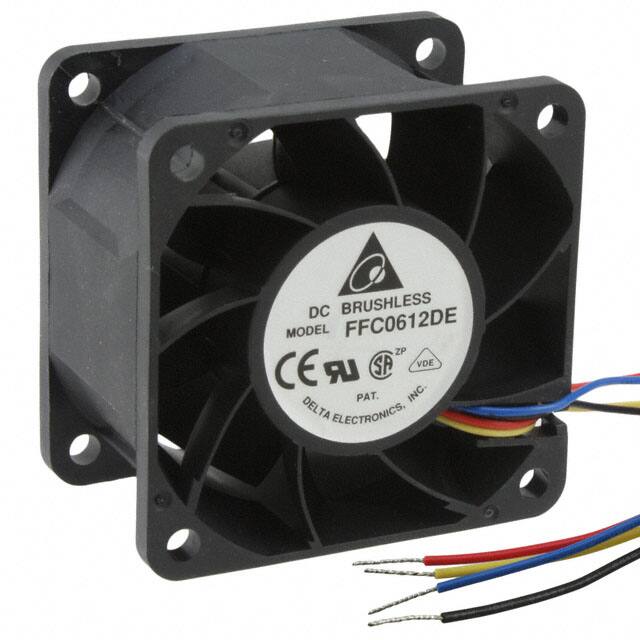

FFC0612DE-F00FAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
1,396 |
|
数据手册 |
FFC | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 54.8 CFM (1.53m³/min) | 1.182 in H2O (294.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 10.8 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.234 lb (106.14 g) |
|
FFB0824VHEFAN AXIAL 80X38MM 24VDC WIRE Delta Electronics |
4,378 |
|
数据手册 |
FFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 57.2 CFM (1.60m³/min) | 0.424 in H2O (105.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 5.76 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
FFB0924SHE-F00FAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
4,909 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.5dB(A) | 9.6 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
