交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZWS30B-24/AAC/DC CONVERTER 24V 31W TDK-Lambda |
4,315 |
|
数据手册 |
ZWS30B (30W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 31W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.24" L x 2.17" W x 1.02" H (133.0mm x 55.0mm x 26.0mm) |
|
CSW65-54AC/DC CONVERTER 54V 65W TDK-Lambda |
2,787 |
|
数据手册 |
CSW65 (65W) | Box | Active | Open Frame | 1 | 90 ~ 305 VAC | 54V | - | - | - | - | - | 1.21 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm) |
|

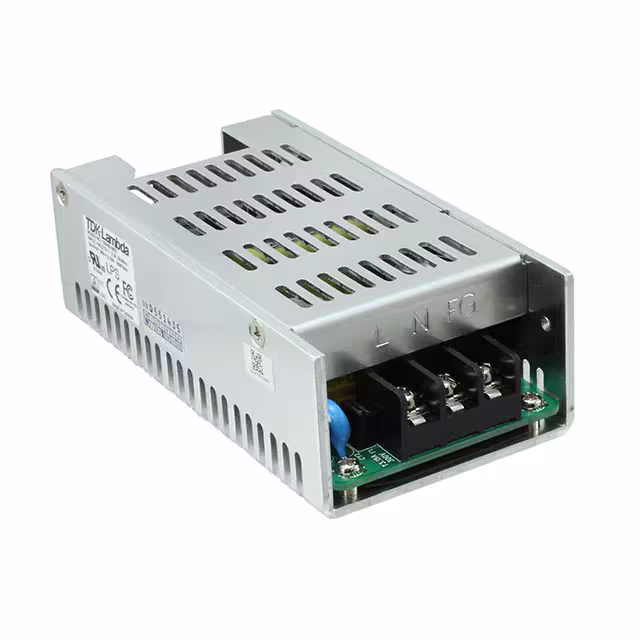

CSW65-28/AAC/DC CONVERTER 28V 65W TDK-Lambda |
1,208 |
|
数据手册 |
CSW65 (65W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC | 28V | - | - | - | - | - | 2.33 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm) |
|
CUS100ME-28/UAC/DC CONVERTER 28V 100W TDK-Lambda |
4,680 |
|
数据手册 |
CUS100ME (100W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 3.57 A | - | - | - | - | - | 100W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 4.57" L x 2.52" W x 1.57" H (116.0mm x 64.0mm x 39.7mm) |
|
HWS30A-15/HDAC/DC CONVERTER 15V 30W TDK-Lambda |
2,778 |
|
数据手册 |
HWS/HD (30W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.74" L x 1.24" W x 3.23" H (95.0mm x 31.5mm x 82.0mm) |
|
|
VS50E-15AC/DC CONVERTER 6X15V 53W TDK-Lambda |
1,955 |
|
数据手册 |
VS-E (150W) | Box | Active | Open Frame | 6 | 85 ~ 132 VAC | 15V | 15V | 15V | 15V | 15V | 15V | 3.5 A | 3.5 A | 3.5 A | 3.5 A | 3.5 A | 3.5 A | 53W | ITE (Commercial) | 2 kV | -10°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.20" L x 1.97" W x 0.91" H (132.0mm x 50.0mm x 23.0mm) |
|
ZWS50BAF-48/AAC/DC CONVERTER 48V 50W TDK-Lambda |
3,198 |
|
数据手册 |
ZWS50BAF (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.20" L x 1.97" W x 1.02" H (132.0mm x 50.0mm x 26.0mm) |
|
ZWS50BAF-12/CO2AC/DC CONVERTER 12V 50W TDK-Lambda |
2,042 |
|
数据手册 |
ZWS50BAF (50W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 5.20" L x 1.97" W x 1.02" H (132.0mm x 50.0mm x 26.0mm) |
|
ZWS75BAF-3AC/DC CONVERTER 3.3V 75W TDK-Lambda |
2,994 |
|
数据手册 |
ZWS75BAF (75W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 15 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 5.90" L x 1.97" W x 1.30" H (150.0mm x 50.0mm x 33.0mm) |
|
LS200-15/LAC/DC CONVERTER 15V 200W TDK-Lambda |
1,059 |
|
数据手册 |
LS (200W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 13.4 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | DC Input Capable, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.61" H (199.0mm x 98.0mm x 41.0mm) |
