多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8456 060100CABLE 10COND 22AWG CHROME 100' |
4,556 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 10 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.264" (6.71mm) | - | 100.0' (30.5m) | Chrome | - | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
C2462A.41.10CABLE 3COND 24AWG GRAY |
1,265 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.163" (4.14mm) | - | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
78154 SL005MULTI-PAIR 8CON 28AWG SLATE 100' |
3,058 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 28 AWG | 19/40 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.157" (3.99mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|

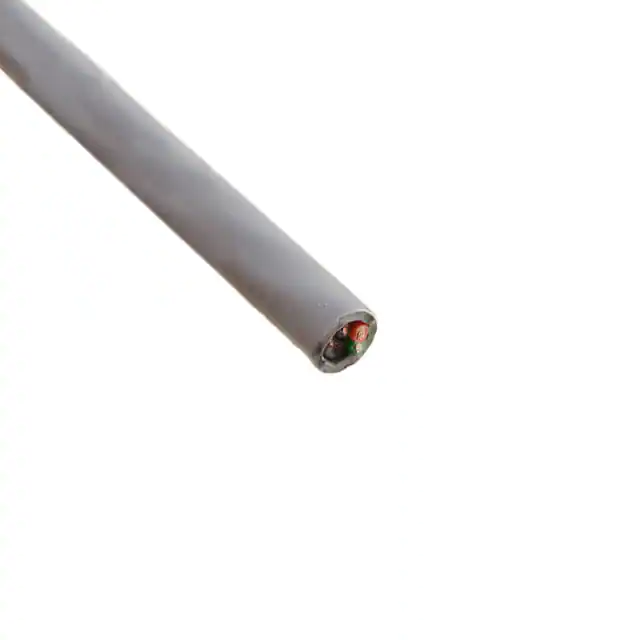

1175C SL002CABLE 5COND 22AWG SLATE 500' |
4,344 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 5 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.200" (5.08mm) | - | 500.0' (152.4m) | Slate | - | - | 150 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
25121 BK005CABLE 2COND 22AWG BLK SHLD 100' |
4,761 |
|
数据手册 |
Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.196" (4.98mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
21458-18-2-0500-0104-1-TSCABLE 2COND 18AWG BLK/RED 500' |
2,242 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 34/0.0071" | Copper, Tinned | Polyphenylene Ether (PPE) | 0.153" (3.89mm) | - | 500.0' (152.4m) | Black, Red | UL Style 21458 | - | 300 V | -10°C ~ 80°C | - | 0.0150" (0.381mm) | - | - | |
|
30-00387CABLE 4COND 22AWG WHITE 1000' |
3,548 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 17/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.191" (4.85mm) | - | 1000.0' (304.8m) | White | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - | |
|
5093C SL005CABLE 3CON 24AWG SLATE SHLD 100' |
3,326 |
|
数据手册 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.167" (4.24mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
C2404A.38.10CABLE 4COND 18AWG GRAY |
3,877 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.258" (6.55mm) | - | 500.0' (152.4m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
3644B/26 100SFMULTI-PAIR 26CON 28AWG BEI 100' |
1,136 |
|
数据手册 |
3644X | Spool | Active | Multi-Pair | 26 (13 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.250" (6.35mm) | Foil, Braid | 100.0' (30.5m) | Beige | - | Splice Free | 150 V | - | Communication, Computer, Control | 0.0260" (0.660mm) | Polyolefin (PO) | - | |
|
78342 SL005CABLE 2CON 20AWG SLATE SHLD 100' |
1,966 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.173" (4.39mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|

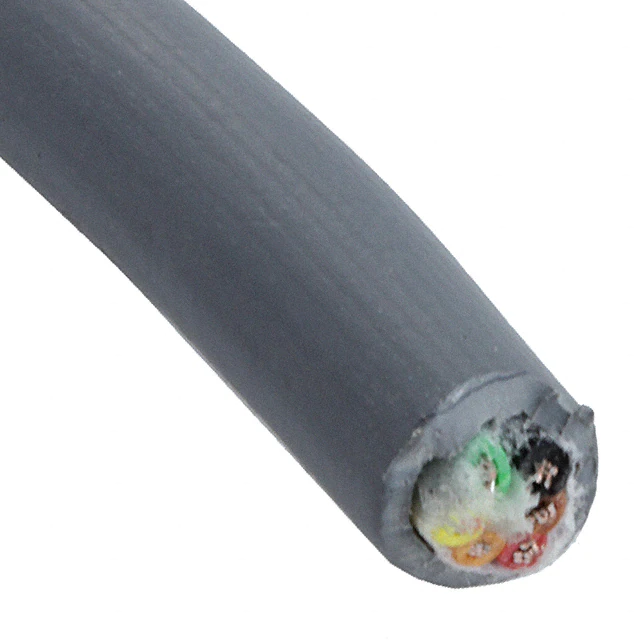

77050 SL005CABLE 6COND 26AWG SLATE 100' |
100 |
|
数据手册 |
EcoCable® | Spool | Active | Multi-Conductor | 6 | 26 AWG | 7/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.186" (4.72mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21915 | Biological Compatibility, Rip Cord | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
30-00368CABLE 3COND 20AWG BLACK 1000' |
4,566 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.195" (4.95mm) | - | 1000.0' (304.8m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - | |
|
78105 SL005MULTI-PAIR 10COND 28AWG 100' |
3,779 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 28 AWG | 19/40 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.171" (4.34mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
M1222 WH005CABLE 2CON 22AWG WHT SHLD 100' |
1,953 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Polytetrafluoroethylene (PTFE) | 0.146" (3.71mm) | Braid | 100.0' (30.5m) | White | - | - | 600 V | -55°C ~ 200°C | - | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - | |
|
8671601CY SL005CABLE 2CON 16AWG SLATE SHLD 100' |
4,405 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 65/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.274" (6.96mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 20234 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - | |
|
6632 WH005CABLE 2COND 22AWG WHITE 100' |
1,378 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (XLPVC), Irradiated | 0.167" (4.24mm) | - | 100.0' (30.5m) | White | UL Style 2576 | - | 300 V | -55°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
25196 BK005CABLE 6COND 22AWG BLK SHLD 100' |
191 |
|
数据手册 |
Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.223" (5.66mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
C0764A.38.10CABLE 8COND 22AWG GRAY SHLD 500' |
1,119 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Foil | 500.0' (152.4m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1951/3T BK003CABLE 3COND 18AWG BLACK 250' |
1,600 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.241" (6.12mm) | - | 250.0' (76.2m) | Black | - | - | 300 V | -30°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
