多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1173C SL005CABLE 3COND 22AWG SLATE 100' |
4,290 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.172" (4.37mm) | - | 100.0' (30.5m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
55129/12 NA199MULTI-PR 24COND 22AWG FEET |
235 |
|
数据手册 |
Xtra-Guard® 5 | Digi-Spool®, Continuous Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.429" (10.90mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Natural | UL Style 20229 | - | 300 V | -80°C ~ 200°C | - | 0.0270" (0.686mm) | Fluorinated Ethylene-Propylene (FEP) | - | |
|

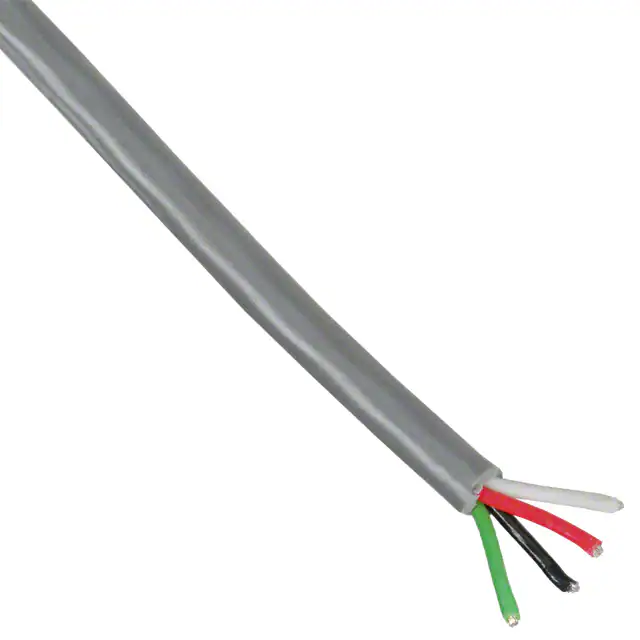

1174C SL005CABLE 4COND 22AWG SLATE 100' |
283 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | - | 100.0' (30.5m) | Slate | - | - | 150 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1897C SL005CABLE 2COND 18AWG SLATE 100' |
2,472 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.198" (5.03mm) | - | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - | |
|

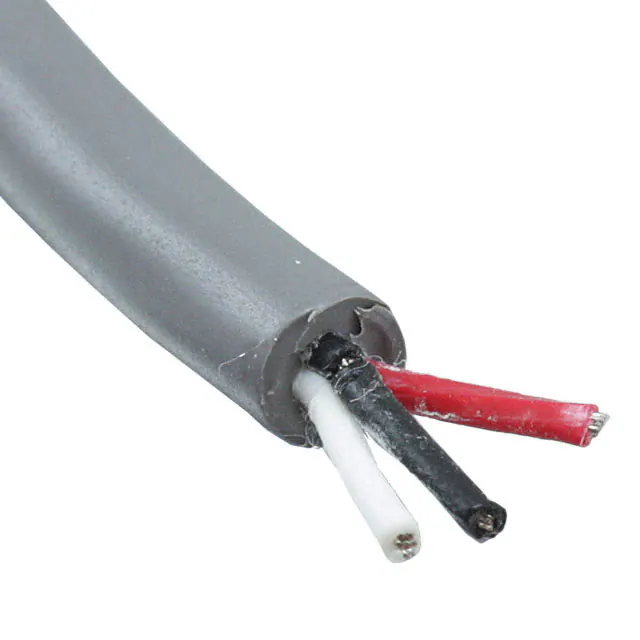

1896C SL005CABLE 3COND 20AWG SLATE 100' |
1,060 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.191" (4.85mm) | - | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - | |
|
8442 060100CABLE SPKR 2COND 22AWG CHRM 100' |
4,826 |
|
数据手册 |
Classics | Spool | Active | Speaker | 2 (1 Pair) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.170" (4.32mm) | - | 100.0' (30.5m) | Chrome | UL Style CMG | - | 300 V | -20°C ~ 60°C | Audio, Control, Instrumentation | 0.0250" (0.635mm) | Poly-Vinyl Chloride (PVC) | - | |
|

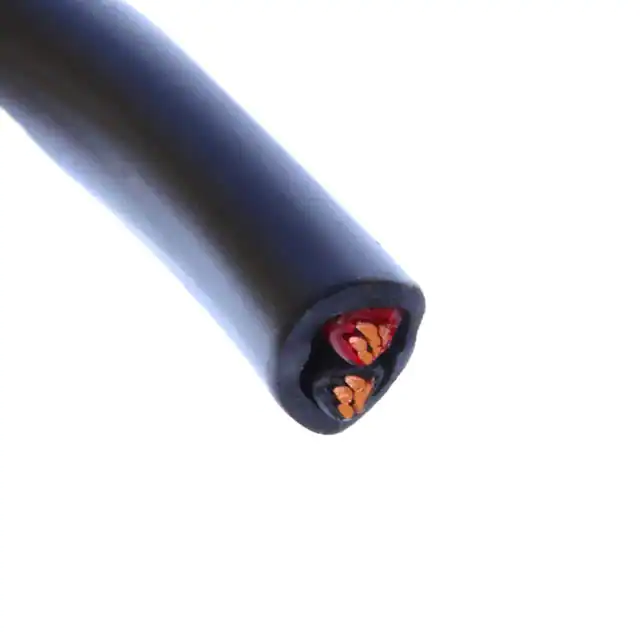

M3845 BK005CABLE 2COND 14AWG BLACK 100' |
1,552 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 7/0.0242" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.320" (8.13mm) | - | 100.0' (30.5m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1896/4C SL005CABLE 4COND 20AWG SLATE 100' |
2,458 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.209" (5.31mm) | - | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - | |
|
5640B2201 NC005CABLE 3COND 22AWG SHLD 100' |
2,894 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 (1 Triad Twisted) | 22 AWG | 7/28 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.201" (5.11mm) | Foil | 100.0' (30.5m) | - | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - | |
|
2466C SL005MULTI-PAIR 4CON 22AWG SLATE 100' |
3,870 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.170" (4.32mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polypropylene (PP) | - | |
|

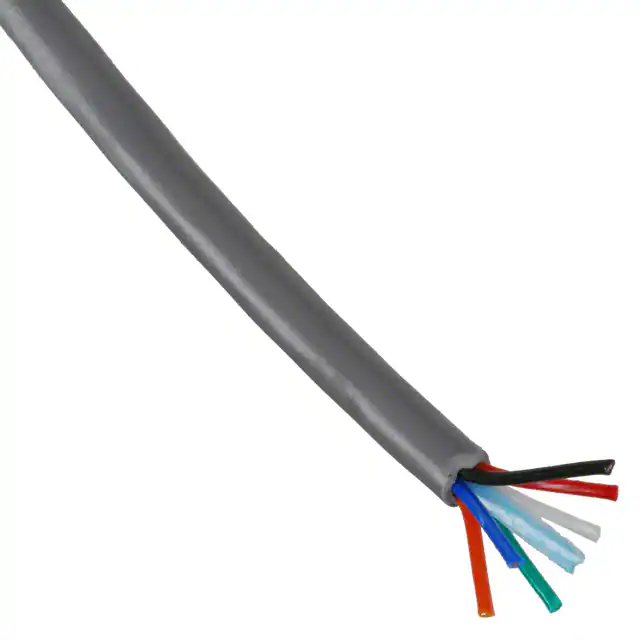

1176C SL005CABLE 6COND 22AWG SLATE 100' |
2,873 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.215" (5.46mm) | - | 100.0' (30.5m) | Slate | - | - | 150 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

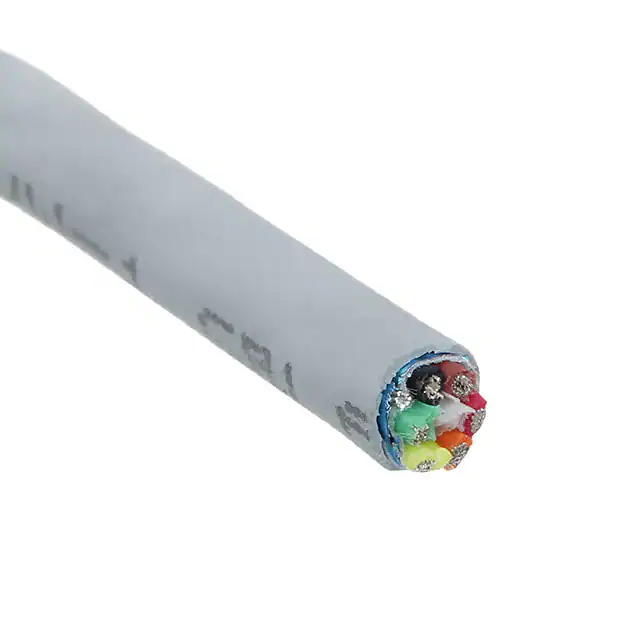

M4636 SL005CABLE 6CON 22AWG SLATE SHLD 100' |
128 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.222" (5.64mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
1896/4L SL005CABLE 4COND 20AWG SLATE 100' |
4,056 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.209" (5.31mm) | - | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - | |
|

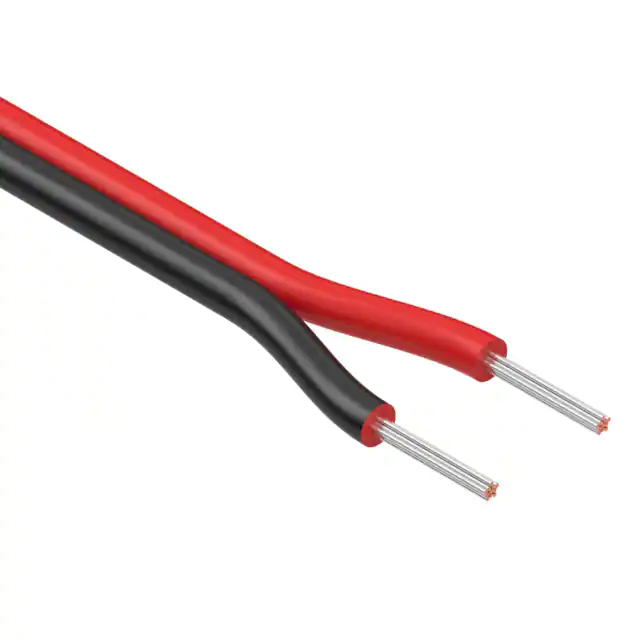

30-00804CABLE 2COND 24AWG BLK/RED 502' |
1,937 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 24 AWG | 11/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.118" (3.00mm) | - | 502.0' (153.0m) | Black, Red | UL Style 2651 | - | 300 V | -10°C ~ 105°C | - | 0.0165" (0.420mm) | - | - | |
|

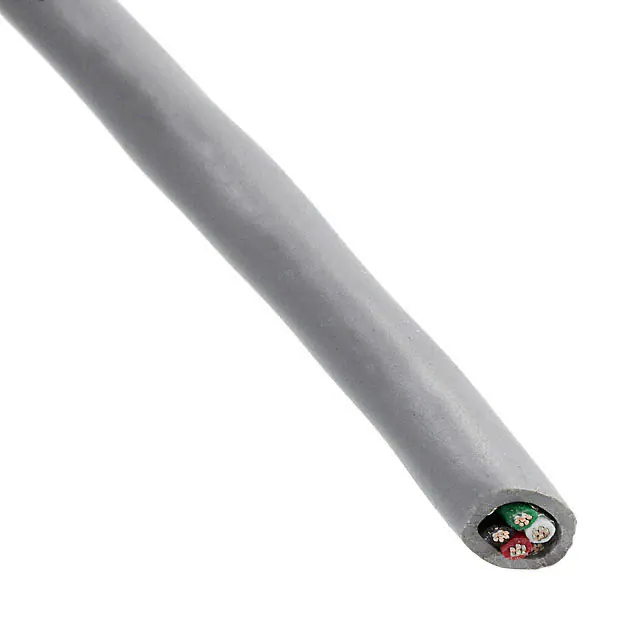

2466L SL005CABLE 4CON 22AWG SLATE SHLD 100' |
1,191 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.161" (4.09mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0300" (0.762mm) | Polypropylene (PP) | - | |
|
8760MN 008100CABLE 2COND 18AWG GRAY SHLD 100' |
4,800 |
|
数据手册 |
SpaceMaker™ | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.169" (4.29mm) | Foil | 100.0' (30.5m) | Gray | - | Drain Wire | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - | |
|

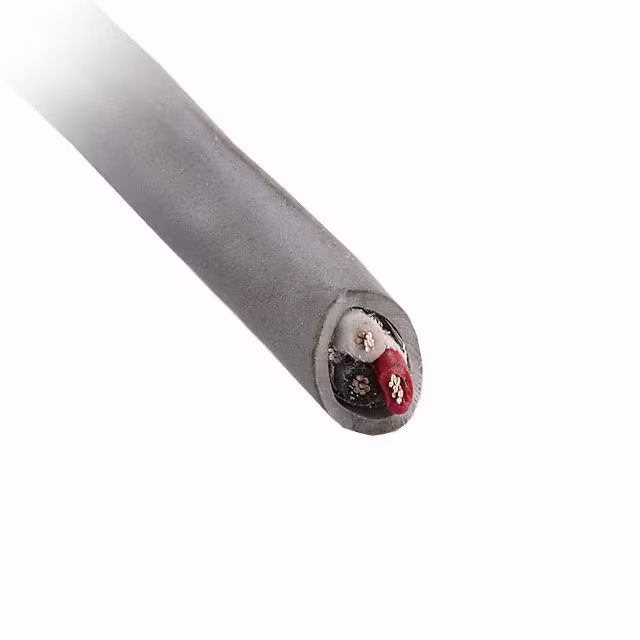

6339 SL005CABLE 3CON 22AWG SLATE SHLD 100' |
1,289 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.198" (5.03mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
2404C SL005CABLE 4CON 22AWG SLATE SHLD 100' |
1,804 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.194" (4.93mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - | |
|

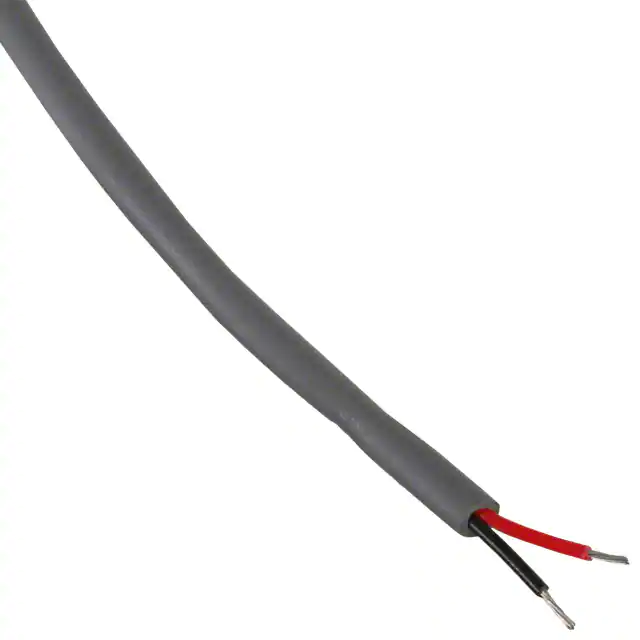

1899C SL005CABLE 2COND 16AWG SLATE 100' |
1,587 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.222" (5.64mm) | - | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - | |
|
21458-24-2-0500-0104-1-TSCABLE 2COND 24AWG BLK/RED 500' |
4,876 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 24 AWG | 11/0.0063" | Copper, Tinned | Polyphenylene Ether (PPE) | 0.114" (2.89mm) | - | 500.0' (152.4m) | Black, Red | UL Style 21458 | - | 300 V | -10°C ~ 80°C | - | 0.0150" (0.381mm) | - | - |
