多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

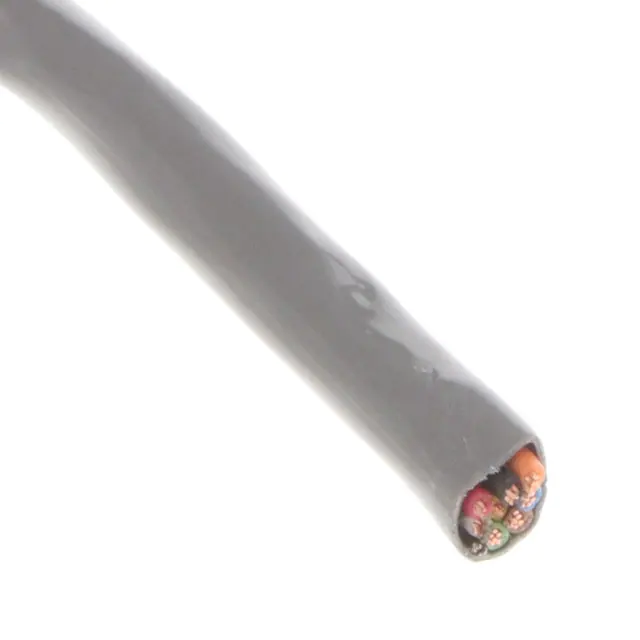

E2008S.41.10CABLE 8COND 22AWG GRAY SHLD |
4,641 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.195" (4.95mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - | |
|

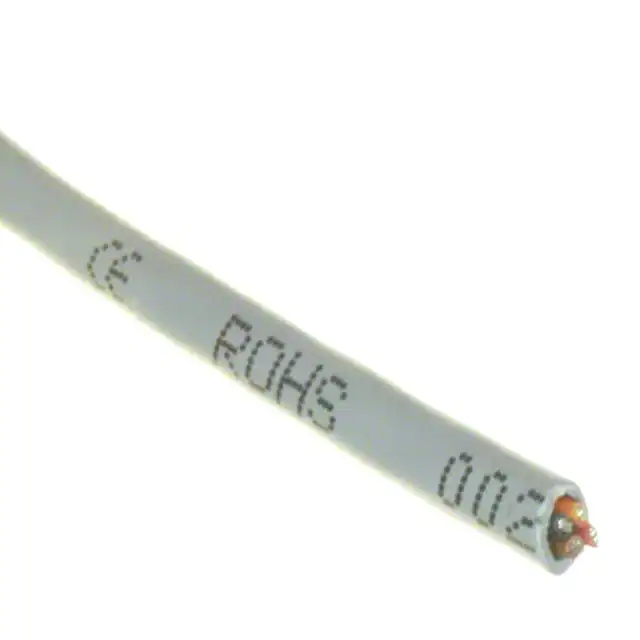

5014C SL005CABLE 4COND 24AWG SLATE 100' |
267 |
|
数据手册 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 4 | 24 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.175" (4.45mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

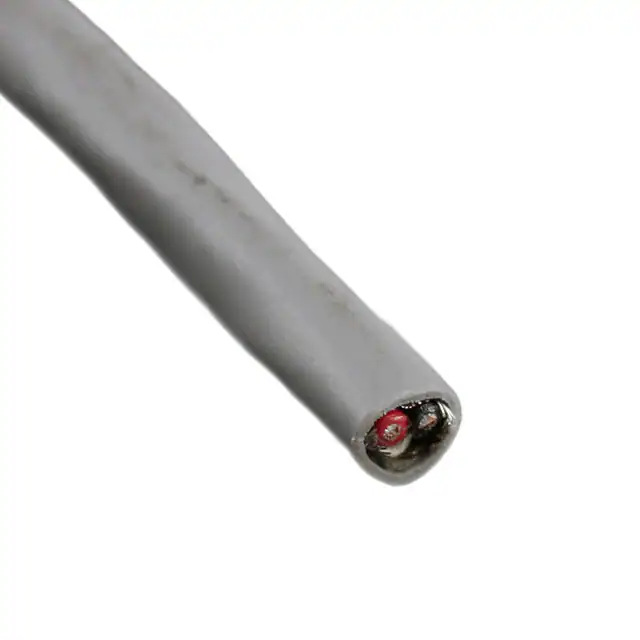

3222 SL005CABLE 3CON 22AWG SLATE SHLD 100' |
1,032 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.184" (4.67mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -55°C ~ 105°C | Communication, Control | 0.0170" (0.432mm) | Poly-Vinyl Chloride (PVC) | - | |
|

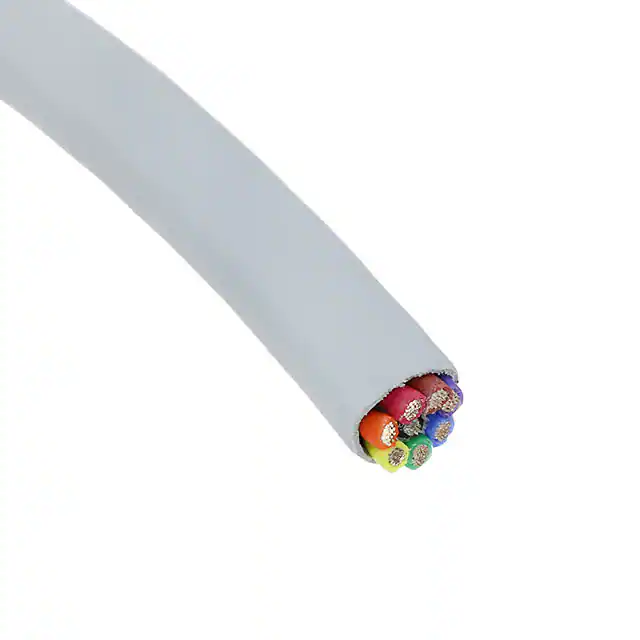

78008 SL005CABLE 8COND 28AWG SLATE 100' |
1,809 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Conductor | 8 | 28 AWG | 19/40 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.134" (3.40mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|

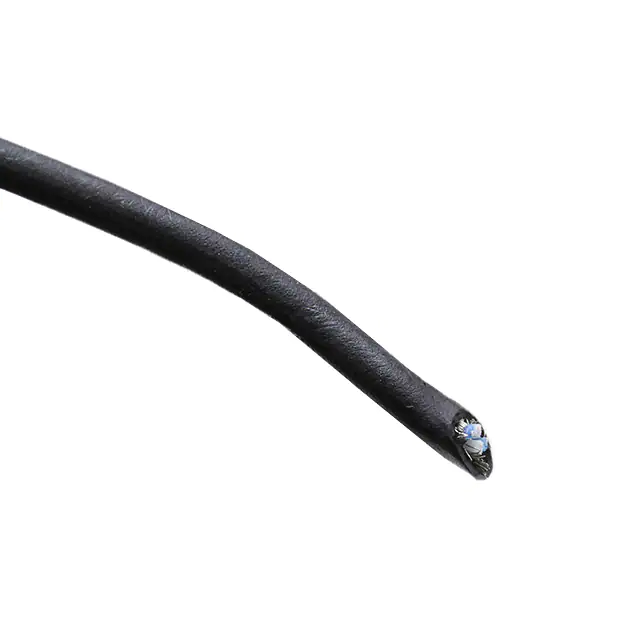

1804A J5C100CABLE 4COND 28AWG BLK SHLD 100' |
119 |
|
数据手册 |
- | Spool | Active | Microphone | 4 (1 Twisted Quad) | 28 AWG | 19/40 | Copper Alloy, Silver Coated | Poly-Vinyl Chloride (PVC) | 0.115" (2.92mm) | Braid | 100.0' (30.5m) | Black | - | - | 100 V | -30°C ~ 60°C | Audio | 0.0140" (0.356mm) | Polypropylene (PP) | - | |
|

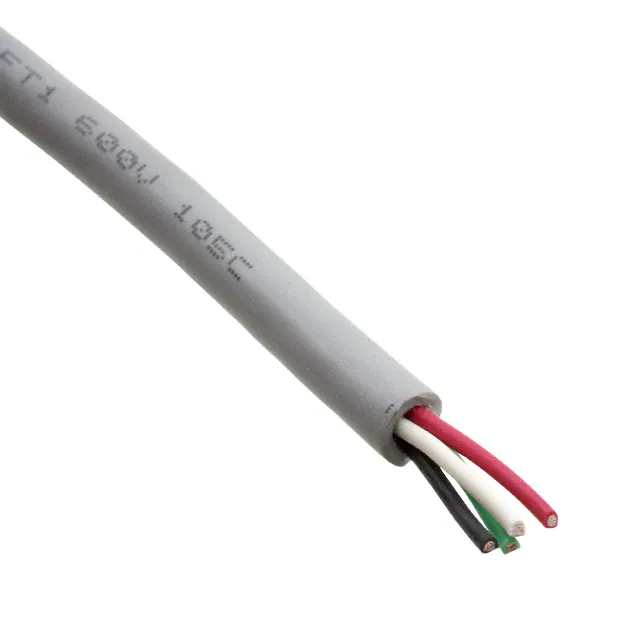

79052 SL005CABLE 4COND 24AWG SLATE 100' |
114 |
|
数据手册 |
EcoFlex® | Bulk | Active | Multi-Conductor | 4 | 24 AWG | 19/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.181" (4.60mm) | - | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
3644B/24 100SFMULTI-PAIR 24CON 28AWG BEI 100' |
114 |
|
数据手册 |
3644X | Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.250" (6.35mm) | Foil, Braid | 100.0' (30.5m) | Beige | - | Splice Free | 150 V | - | Communication, Computer, Control | 0.0260" (0.660mm) | Polyolefin (PO) | - | |
|
78082 SL005MULT-PAIR 4COND 22AWG SLATE 100' |
165 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.185" (4.70mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|

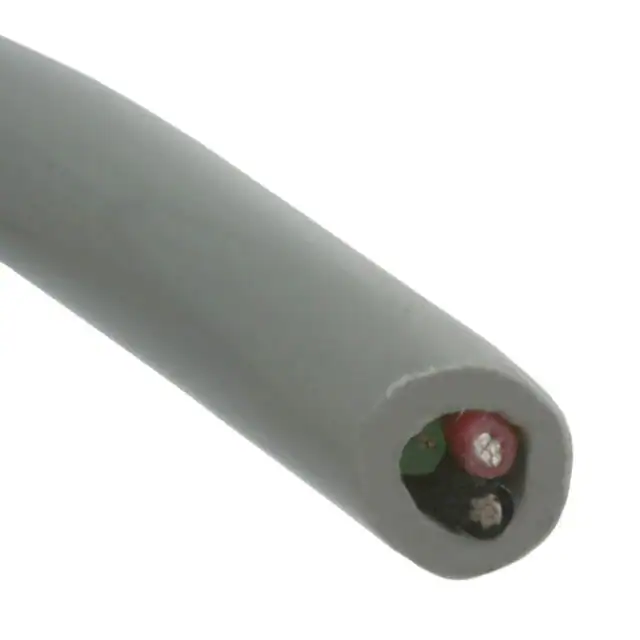

C4062A.41.10CABLE 3COND 22AWG GRAY |
2,792 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.176" (4.47mm) | - | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

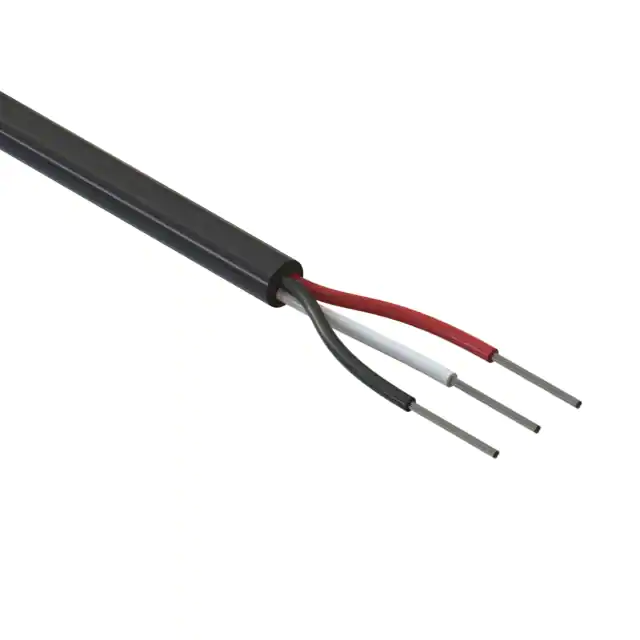

30-00371CABLE 3COND 22AWG BLACK 1000' |
3,829 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 17/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.177" (4.50mm) | - | 1000.0' (304.8m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1298C SL005CABLE 8CON 22AWG SLATE SHLD 100' |
2,666 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.234" (5.94mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
C0744A.38.10CABLE 8COND 24AWG GRAY SHLD |
4,586 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.215" (5.46mm) | Foil | 500.0' (152.4m) | Gray | - | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

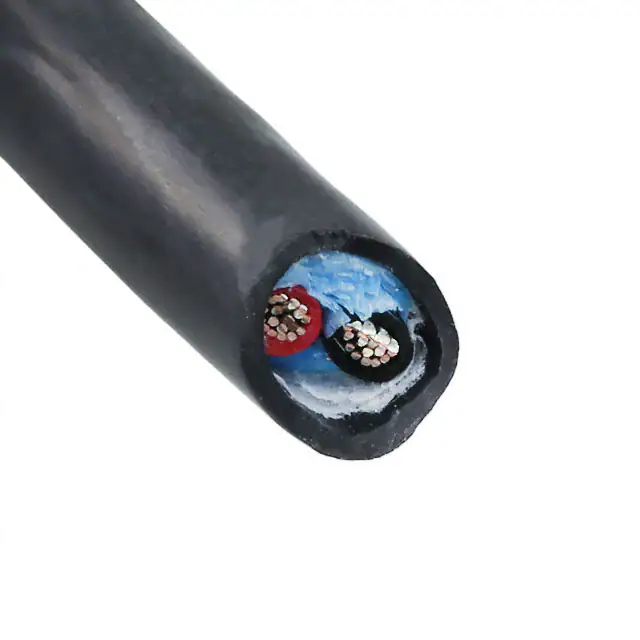

25072 BK005CABLE 2COND 16AWG BLACK 100' |
1,948 |
|
数据手册 |
Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.250" (6.35mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
78134 SL005CABLE 4CON 22AWG SLATE SHLD 100' |
4,557 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Conductor | 4 | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.149" (3.78mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
9540 060100CABLE 10COND 24AWG CHRM SHD 100' |
4,508 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 10 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.244" (6.20mm) | Foil | 100.0' (30.5m) | Chrome | - | Drain Wire | - | -30°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1181/15C SL005CABLE 15COND 22AWG SLATE 100' |
1,757 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.294" (7.47mm) | - | 100.0' (30.5m) | Slate | - | - | 150 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
5092C SL005CABLE 2CON 24AWG SLATE SHLD 100' |
4,755 |
|
数据手册 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.160" (4.06mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

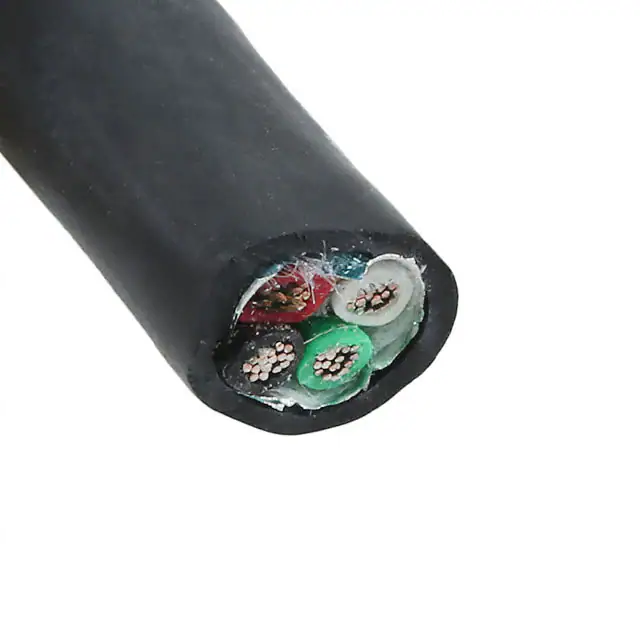

25464 BK005CABLE 4COND 20AWG BLK SHLD 100' |
4,328 |
|
数据手册 |
Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Polyurethane (PU) | 0.242" (6.15mm) | Foil | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
9842 060100MULTI-PAIR 4CON 24AWG CHROM 100' |
119 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.340" (8.64mm) | Foil, Braid | 100.0' (30.5m) | Chrome | - | Drain Wire | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Polyethylene (PE) | - | |
|

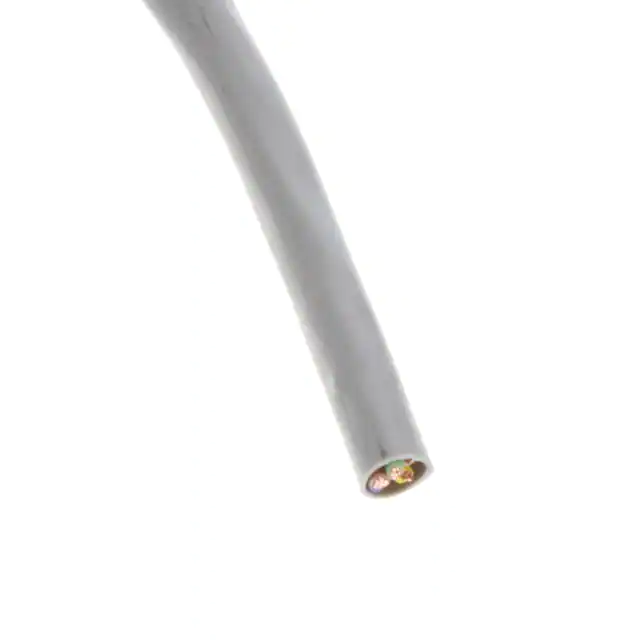

E1008S.30.10CABLE 8COND 22AWG GRAY |
2,243 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.180" (4.57mm) | - | 1000.0' (304.8m) | Gray | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
