多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

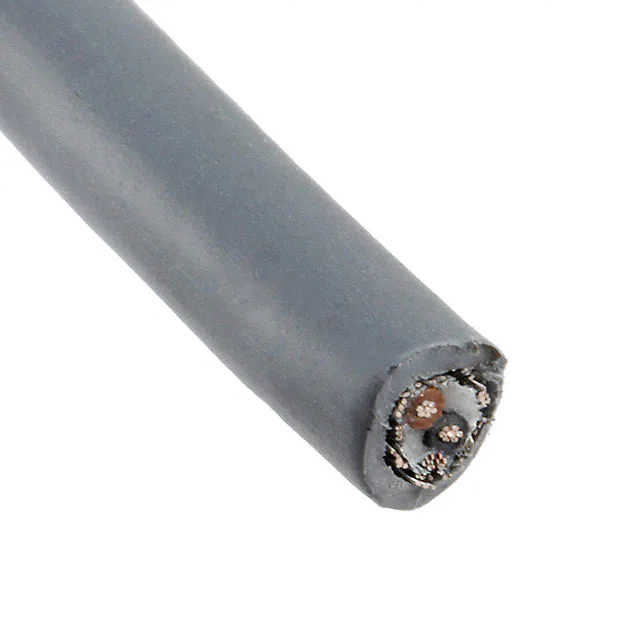

77222 SL005CABLE 2CON 16AWG SLATE SHLD 100' |
2,464 |
|
数据手册 |
EcoCable® | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.254" (6.45mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
1294C SL001CABLE 4COND 22AWG SHLD 1000' |
1,128 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
9543 060100CABLE 25COND 24AWG CHRM SHD 100' |
4,814 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 25 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.339" (8.61mm) | Foil | 100.0' (30.5m) | Chrome | - | Drain Wire | - | -30°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1899C SL001CABLE 2COND 16AWG SLATE 1000' |
4,615 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.222" (5.64mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - | |
|

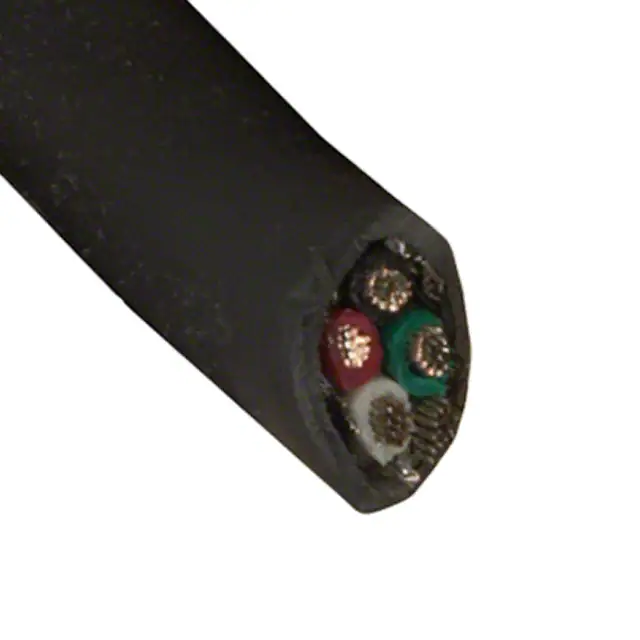

5164C SL005CABLE 4CON 18AWG SLATE SHLD 100' |
2,154 |
|
数据手册 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.287" (7.29mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

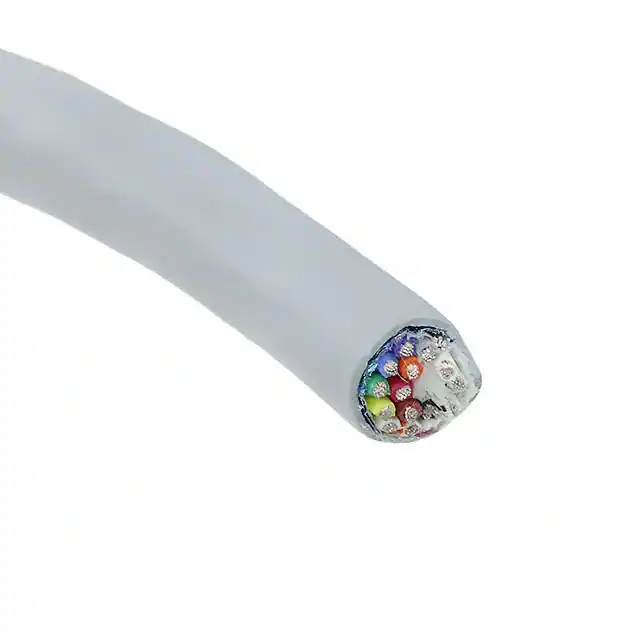

5199/15C SL005CABLE 15COND 22AWG SHLD 100' |
2,094 |
|
数据手册 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.303" (7.70mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

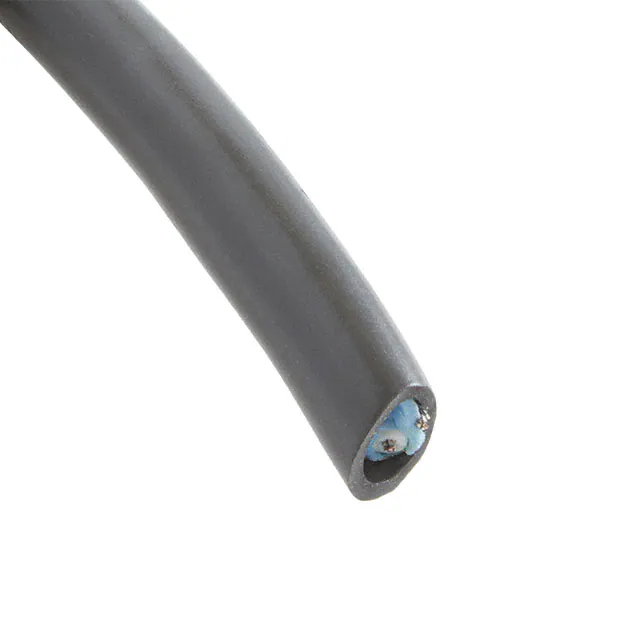

6453 BK001CABLE 2COND 22AWG BLK SHLD 1000' |
2,809 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.284" (7.21mm) | Foil, Braid | 1000.0' (304.8m) | Black | - | Drain Wire | 300 V | -20°C ~ 60°C | - | 0.0420" (1.067mm) | High Density Polyethylene (HDPE) | - | |
|
8723 0601000MULTI-PAIR 4COND 22AWG 1000' |
2,542 |
|
数据手册 |
Classics | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.160" (4.06mm) | Foil | 1000.0' (304.8m) | Chrome | - | Drain Wire | - | -20°C ~ 75°C | - | 0.0200" (0.508mm) | Polypropylene (PP) | - | |
|
19511 B59250CABLE 3COND 14AWG BLACK 250' |
2,522 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Bare | Belflex® | 0.380" (9.65mm) | - | 250.0' (76.2m) | Black | - | - | - | -40°C ~ 105°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - | |
|
8771 0601000CABLE 3COND 22AWG CHRM SHD 1000' |
2,173 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.199" (5.06mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style 2093 | Drain Wire | - | -20°C ~ 60°C | Audio, Control, Instrumentation | 0.0330" (0.838mm) | Polyethylene (PE) | - | |
|
5052C SL001CABLE 2COND 20AWG SLATE 1000' |
3,421 |
|
数据手册 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.208" (5.28mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1298C SL001CABLE 8COND 22AWG SHLD 1000' |
2,725 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.234" (5.94mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

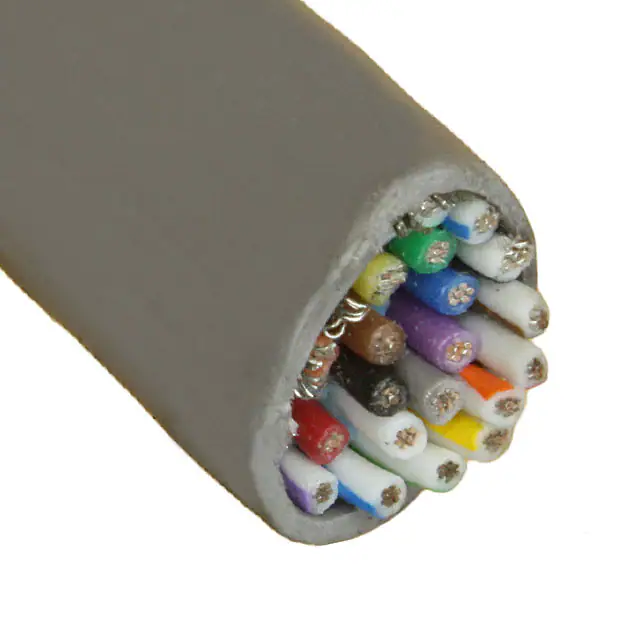

5110/25C SL005CABLE 25COND 22AWG SHLD 100' |
2,163 |
|
数据手册 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 25 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.396" (10.06mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

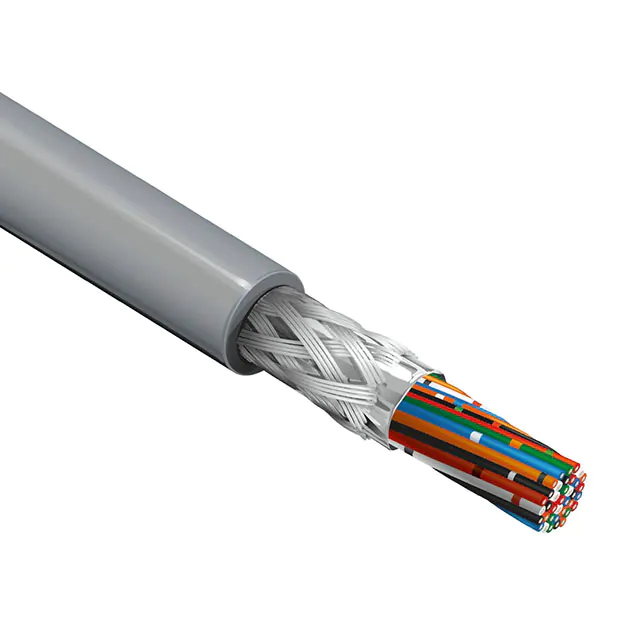

9949 060100CABLE 37COND 22AWG CHRM SHD 100' |
4,647 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 37 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.460" (11.68mm) | Foil, Braid | 100.0' (30.5m) | Chrome | - | - | - | -30°C ~ 80°C | Computer | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - | |
|
E2002S.41.10CABLE 2COND 22AWG GRAY SHLD |
10,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.125" (3.18mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - | |
|

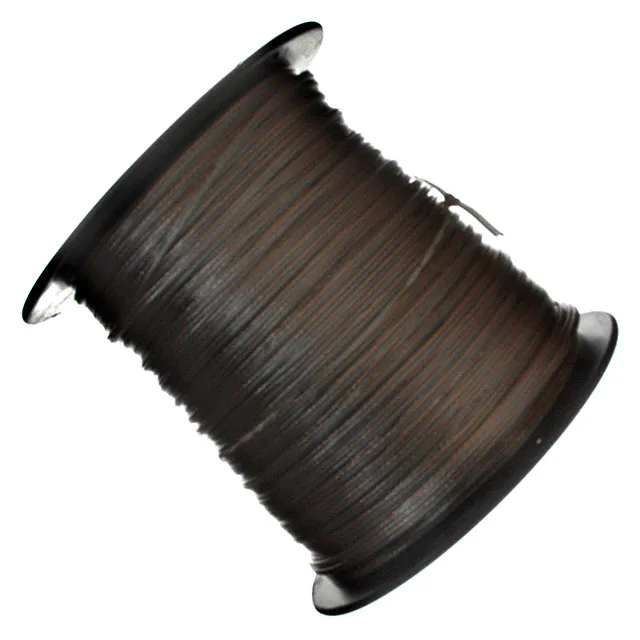

C1362.21.90CABLE SPKR 2COND 22AWG CLEAR |
12,000 |
|
数据手册 |
- | Spool | Active | Speaker | 2 | 22 AWG | 7/30 | Copper, Bare; Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.145" (3.68mm) | - | 1000.0' (304.8m) | Clear | - | - | 120 V | - | Audio-Video, Home | 0.0200" (0.508mm) | - | - | |
|

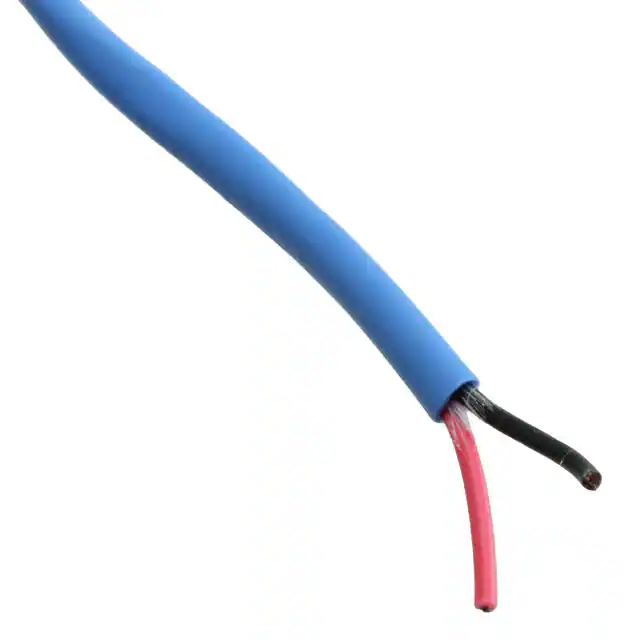

5500UG 006U500CABLE 2COND 22AWG BLUE |
3,500 |
|
数据手册 |
- | Box | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.114" (2.89mm) | - | 500.0' (152.4m) | Blue | - | - | - | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Polypropylene (PP) | - | |
|
E1022S.30.10CABLE 2COND 20AWG GRAY |
30,000 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.134" (3.40mm) | - | 1000.0' (304.8m) | Gray | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0080" (0.203mm) | Poly-Vinyl Chloride (PVC) | - | |
|

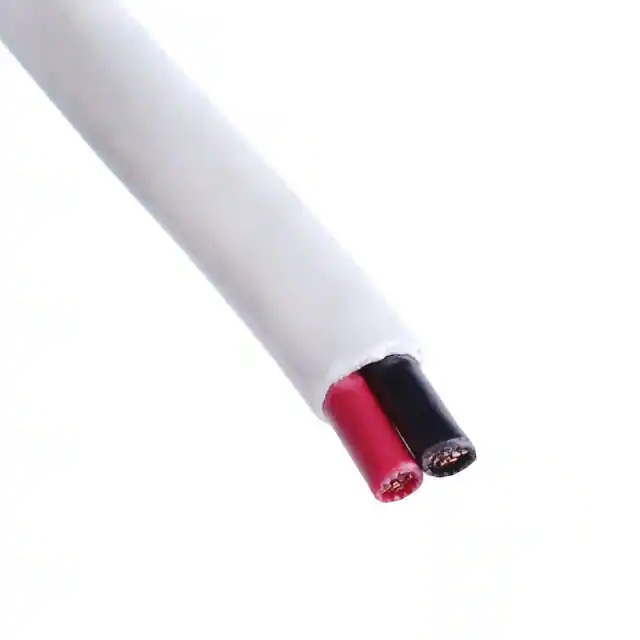

E3032S.41.02CABLE 2COND 18AWG WHITE |
3,000 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.156" (3.96mm) | - | 1000.0' (304.8m) | White | ASTM B-3 | - | 300 V | 0°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - | |
|

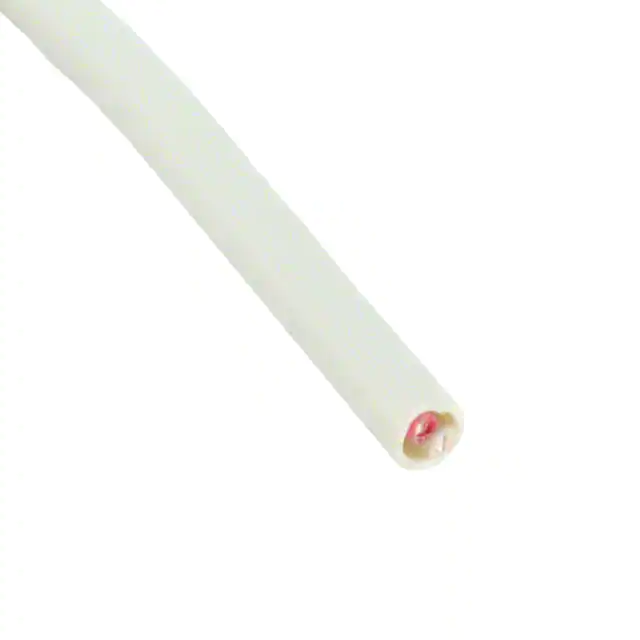

05482.R8.02CABLE 2COND 20AWG WHITE 500' |
2,000 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.126" (3.20mm) | - | 500.0' (152.4m) | White | - | - | 150 V | -20°C ~ 60°C | - | 0.0080" (0.203mm) | - | - |
