多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5502UE 008U500CABLE 4COND 22AWG GRAY |
28,000 |
|
数据手册 |
- | Box | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.141" (3.58mm) | - | 500.0' (152.4m) | Gray | UL Style CMR | Rip Cord | - | -20°C ~ 75°C | Alarm, Security, Sound | 0.0170" (0.432mm) | Polypropylene (PP) | - | |
|
E2022S.41.10CABLE 2CON 20AWG GRAY SHLD |
3,000 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.142" (3.61mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0080" (0.203mm) | Poly-Vinyl Chloride (PVC) | - | |
|
E1006S.41.10CABLE 6COND 22AWG GRAY |
2,002 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.164" (4.17mm) | - | 1000.0' (304.8m) | Gray | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - | |
|

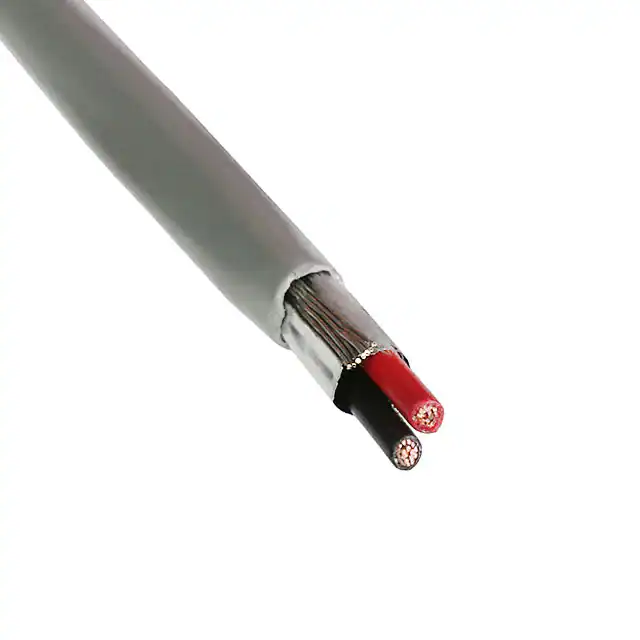

E2032S.41.10CABLE 2CON 18AWG GRAY SHLD |
4,000 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.159" (4.04mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - | |
|
6502FE 877500CABLE 4COND 22AWG NATURAL SHLD |
9,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.147" (3.73mm) | Foil | 500.0' (152.4m) | Natural | UL Style CMP | Drain Wire, Rip Cord | - | 0°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - | |
|

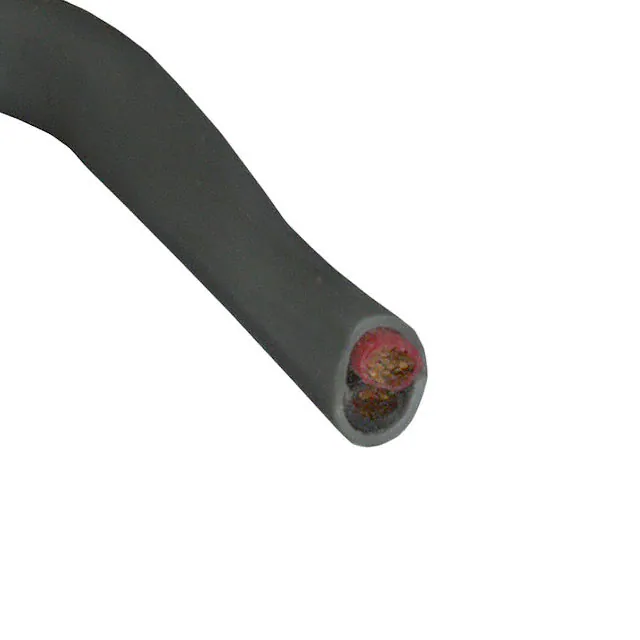

E1042S.41.10CABLE 2COND 16AWG GRAY |
15,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.178" (4.52mm) | - | 1000.0' (304.8m) | Gray | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - | |
|
5504UE 008500CABLE 6COND 22AWG GRAY |
11,500 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.168" (4.27mm) | - | 500.0' (152.4m) | Gray | UL Style CMR | Rip Cord | - | -20°C ~ 75°C | Alarm, Security, Sound | 0.0170" (0.432mm) | Polypropylene (PP) | - | |
|
2725-2828-BE-01000-TCABLE 4COND 28AWG BEIGE SHLD |
4,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 (1 Pair + 2) | 28 AWG | 7/0.0047" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.150" (3.81mm) | Foil, Braid | 1000.0' (304.8m) | Beige | UL Style 2725 | Drain Wire | 30 V | 80°C | USB 2.0 | 0.0268" (0.681mm) | High Density Polyethylene (HDPE), Poly-Vinyl Chloride (PVC) | - | |
|

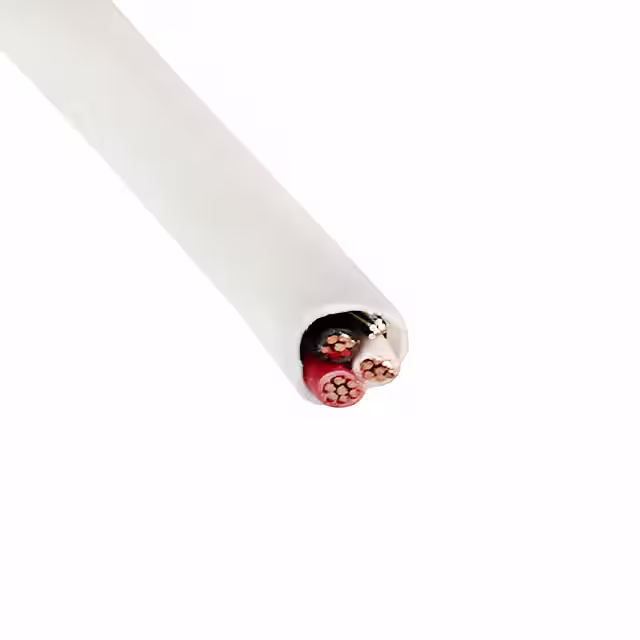

E2203S.41.02CABLE 3COND 18AWG WHITE SHLD |
27,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 7/26 | Copper, Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.169" (4.29mm) | Foil | 1000.0' (304.8m) | White | - | Drain Wire | 300 V | 0°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - | |
|

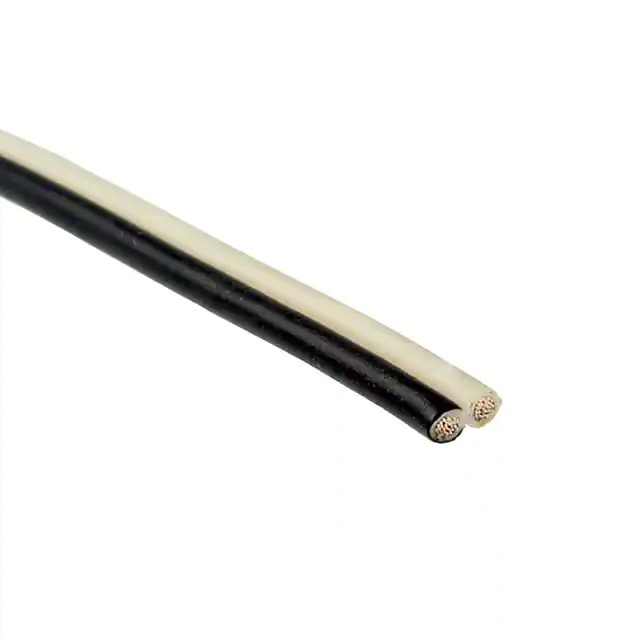

21458-22-2-0500-0102-1-TSCABLE 2COND 22AWG BLK/WHITE |
6,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 17/0.0063" | Copper, Tinned | Polyphenylene Ether (PPE) | 0.126" (3.20mm) | - | 500.0' (152.4m) | Black, White | UL Style 21458 | - | 300 V | -10°C ~ 80°C | - | 0.0150" (0.381mm) | - | - | |
|

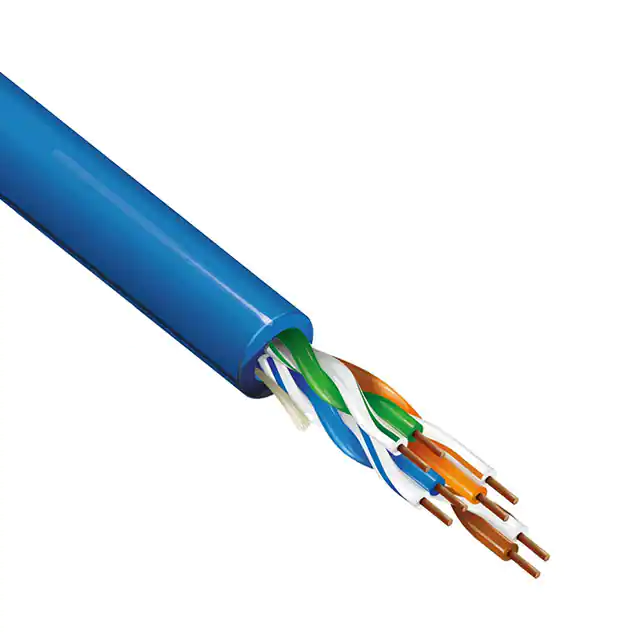

1583A 006U1000CABLE CAT5E 8COND 24AWG BLUE |
2,000 |
|
数据手册 |
- | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.190" (4.83mm) | - | 1000.0' (304.8m) | Blue | UL Style CMR | Rip Cord | - | -20°C ~ 60°C | - | - | Polyolefin (PO) | - | |
|

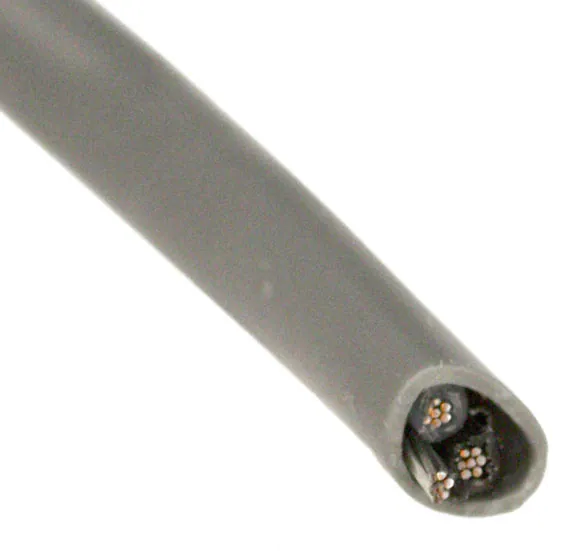

C2513A.41.10CABLE 2CON 24AWG GRAY SHLD |
6,000 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 2 | 24 AWG | 7/32 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.167" (4.24mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0260" (0.660mm) | Polyethylene (PE) | - | |
|
1353A 0101000CABLE 2COND 24AWG BLACK |
27,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 24 AWG | 7/32 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.126" (3.20mm) | - | 1000.0' (304.8m) | Black | - | - | - | -20°C ~ 60°C | - | 0.0220" (0.559mm) | Polyolefin (PO) | - | |
|
|
C2514A.41.10CABLE 2COND 22AWG GRAY SHLD |
7,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.167" (4.24mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - | |
|
5136100CABLE CAT5E 8CON 24AWG BLK |
2,000 |
|
数据手册 |
GenSPEED® 5000 | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Polyethylene (PE) | 0.230" (5.84mm) | - | 1000.0' (304.8m) | Black | - | - | - | -45°C ~ 80°C | - | - | Polyolefin (PO) | - | |
|
|
1353A 010500CABLE 2COND 24AWG BLACK |
2,500 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 24 AWG | 7/32 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.126" (3.20mm) | - | 500.0' (152.4m) | Black | - | - | - | -20°C ~ 60°C | - | 0.0220" (0.559mm) | Polyolefin (PO) | - | |
|

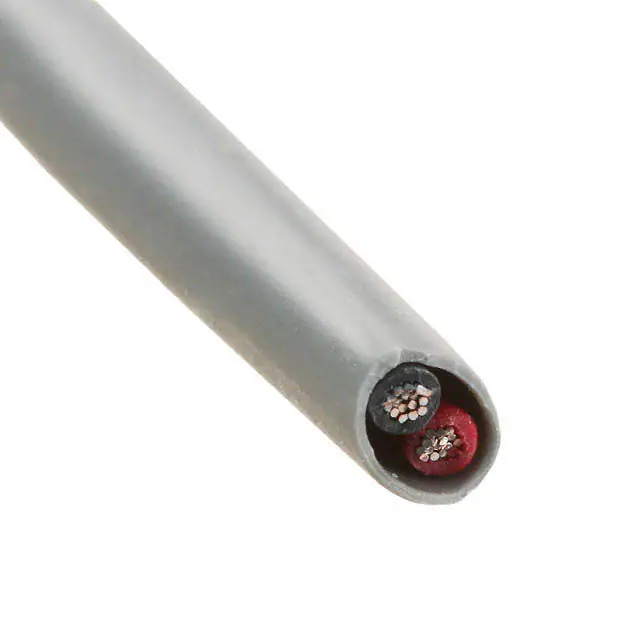

C6351A.41.10CABLE 2COND 20AWG GRAY |
4,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.192" (4.88mm) | - | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0250" (0.635mm) | Poly-Vinyl Chloride (PVC) | - | |
|

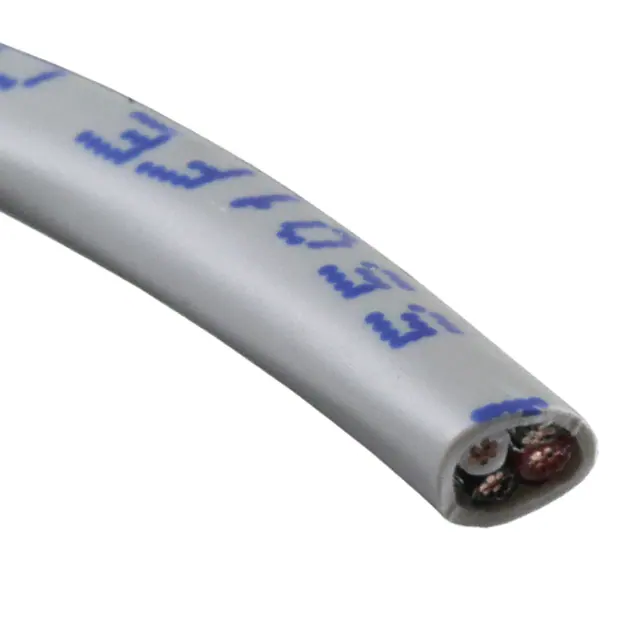

5501FE 008500CABLE 3COND 22AWG GRAY SHLD |
16,500 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.133" (3.38mm) | Foil | 500.0' (152.4m) | Gray | - | Drain Wire, Rip Cord | - | -20°C ~ 75°C | Commercial Audio | 0.0170" (0.432mm) | Polypropylene (PP) | - | |
|

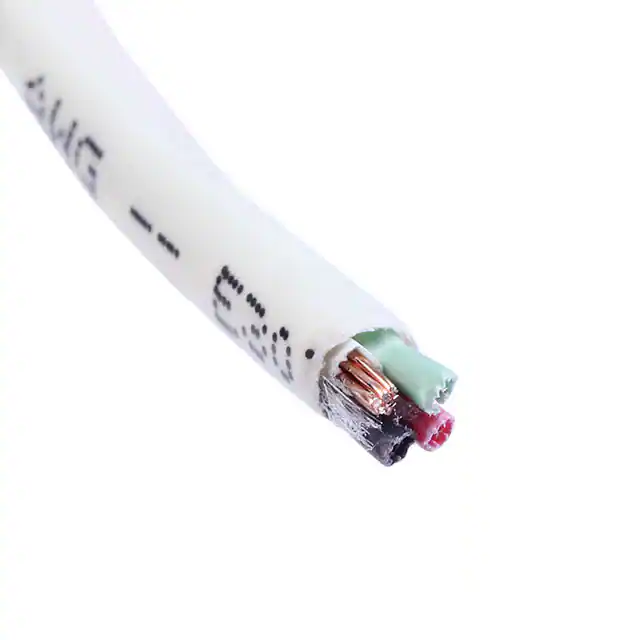

E3034S.41.02CABLE 4COND 18AWG WHITE |
6,000 |
|
数据手册 |
- | Bulk | Active | Multi-Conductor | 4 | 18 AWG | 7/26 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.187" (4.75mm) | - | 1000.0' (304.8m) | White | ASTM B-3 | - | 300 V | 0°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
5300U1 0101000CABLE 2COND 18AWG BLACK |
5,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.215" (5.46mm) | - | 1000.0' (304.8m) | Black | - | Rip Cord | 300 V | -20°C ~ 105°C | Security, Sound | 0.0250" (0.635mm) | Poly-Vinyl Chloride (PVC) | - |
