固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

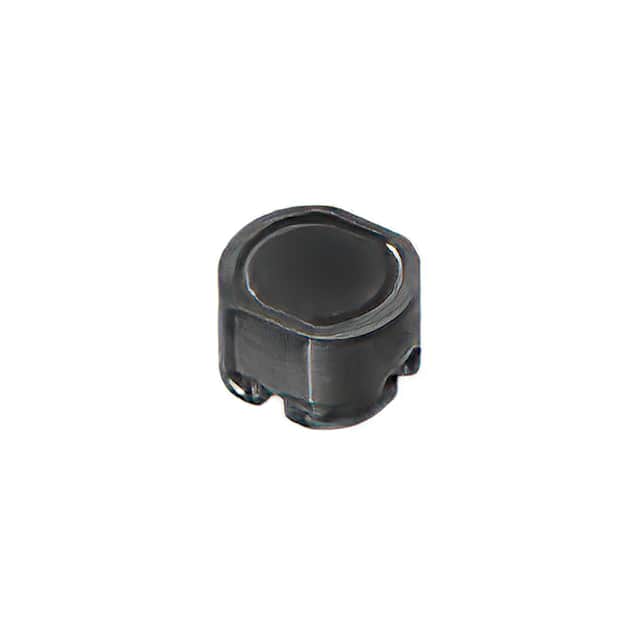

784787047WE-PD2SA SMT SHIELDED POWER INDU Würth Elektronik |
3,691 |
|
数据手册 |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±25% | 3.3 A | 3.6A | Shielded | 29mOhm Max | - | 42MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787330WE-PD2SA SMT SHIELDED POWER INDU Würth Elektronik |
2,609 |
|
数据手册 |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±25% | 1.48 A | 1.3A | Shielded | 161mOhm Max | - | 10MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

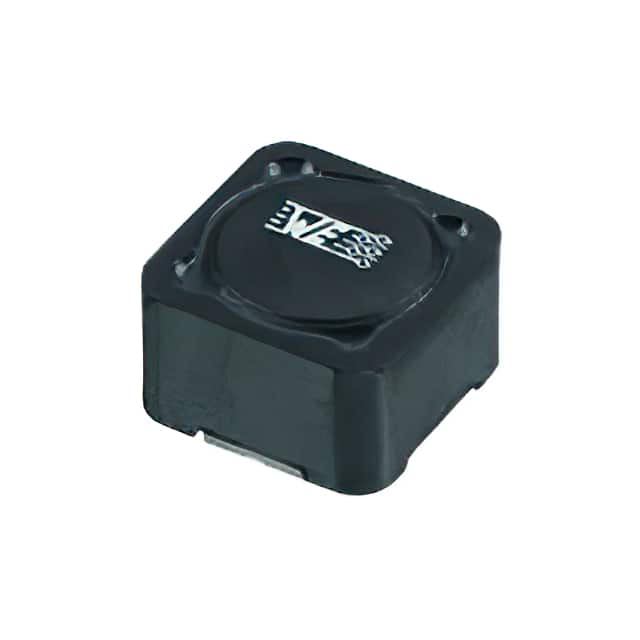

7447707151WE-PD PERFORMANCE SMT SHIELDED P Würth Elektronik |
4,906 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.65 A | 2.8A | Shielded | 190mOhm Max | - | 3.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7447707015WE-PD PERFORMANCE SMT SHIELDED P Würth Elektronik |
4,728 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 12 A | 24A | Shielded | 5.5mOhm Max | - | 49.2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
7447797250FIXED IND 2.5UH 8.4A 10.2MOHM SM Würth Elektronik |
4,515 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.5 µH | ±20% | 8.4 A | 10.5A | Shielded | 10.2mOhm Max | - | 61MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
7447779247WFIXED IND 470UH 290MA 3.01OHM SM Würth Elektronik |
2,296 |
|
数据手册 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 290 mA | 290mA | Shielded | 3.01Ohm Max | - | 3.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744778920WFIXED IND 100UH 620MA 790MOHM SM Würth Elektronik |
4,937 |
|
数据手册 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 620 mA | 760mA | Shielded | 790mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
744777930WFIXED IND 1MH 180MA 6 OHM SMD Würth Elektronik |
4,794 |
|
数据手册 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 180 mA | 250mA | Shielded | 6Ohm Max | - | 2.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447789247WFIXED IND 470UH 270MA 4.18OHM SM Würth Elektronik |
4,162 |
|
数据手册 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 270 mA | 310mA | Shielded | 4.18Ohm Max | - | 3.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
744778910WFIXED IND 10UH 1.7A 84 MOHM SMD Würth Elektronik |
1,427 |
|
数据手册 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | 2.34A | Shielded | 84mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
