固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

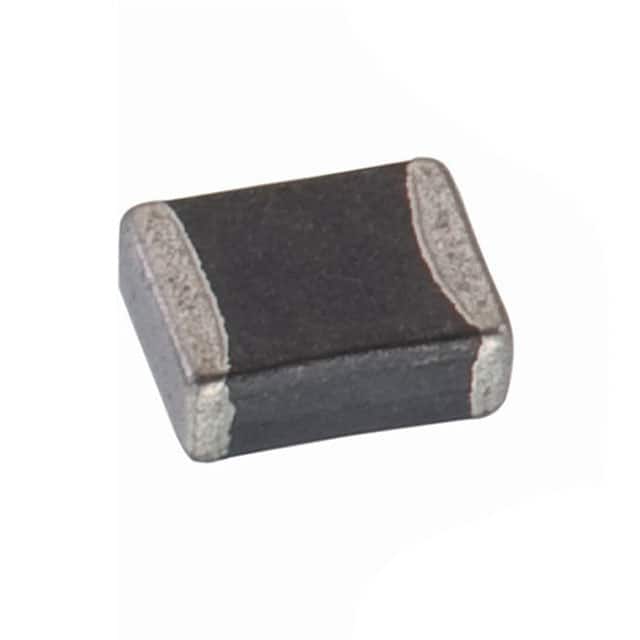

74479977147FIXED IND 470NH 2.2A 65 MOHM SMD Würth Elektronik |
4,328 |
|
数据手册 |
WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 470 nH | ±20% | 2.2 A | 2.4A | Shielded | 65mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.024" (0.60mm) |
|

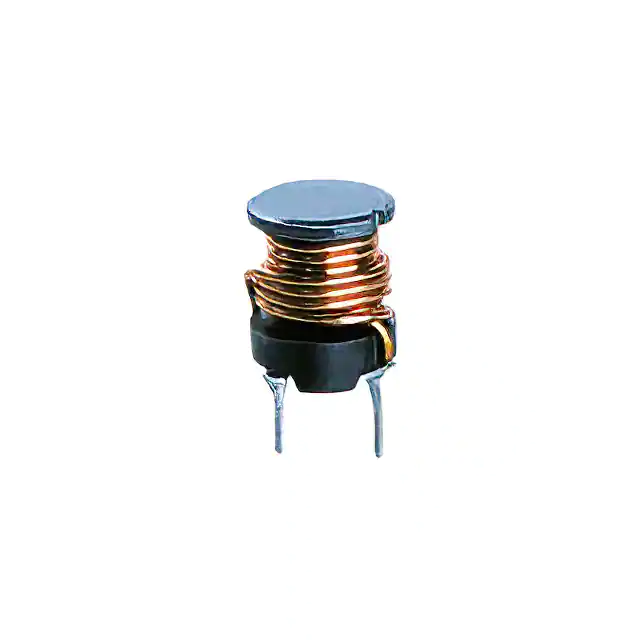

7447720332FIXED IND 3.3MH 240MA 6.7 OHM TH Würth Elektronik |
2,396 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 3.3 mH | ±5% | 240 mA | 290mA | Unshielded | 6.7Ohm Max | - | 980kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

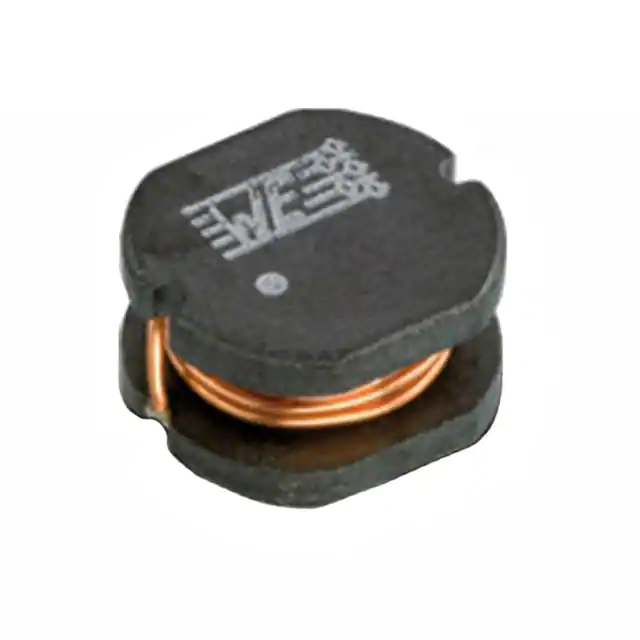

7447732015FIXED IND 1.5UH 2.08A 70MOHM SMD Würth Elektronik |
4,122 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 2.08 A | 3.05A | Unshielded | 70mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|
|
7447732033FIXED IND 3.3UH 1.39A 120MOHM SM Würth Elektronik |
4,701 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 1.39 A | 2.09A | Unshielded | 120mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|
|
7447732210FIXED IND 100UH 240MA 2.8OHM SMD Würth Elektronik |
2,139 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 240 mA | 410mA | Unshielded | 2.8Ohm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
.jpg)
|
74479787147AFIXED IND 470NH 1.8A 40 MOHM SMD Würth Elektronik |
3,963 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 1.8 A | 950mA | Shielded | 40mOhm | 15 @ 1MHz | 110MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

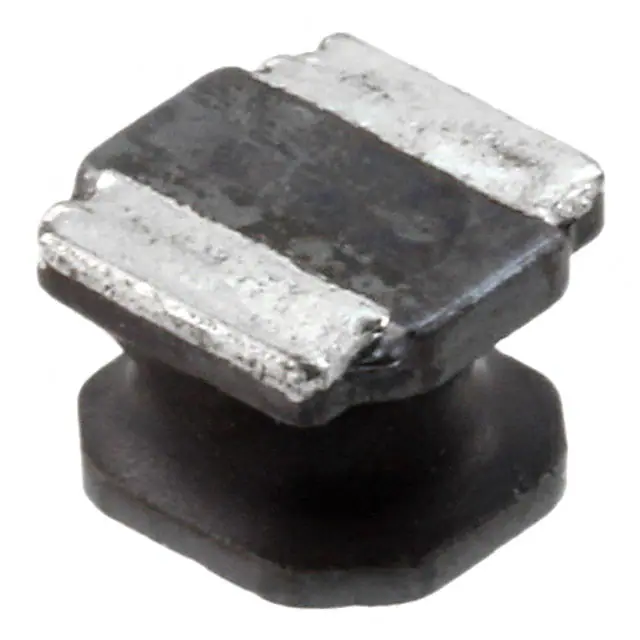

74404054681FIXED IND 680UH 250MA 3.98OHM SM Würth Elektronik |
3,665 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 250 mA | 300mA | Shielded | 3.98Ohm | - | 2.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|

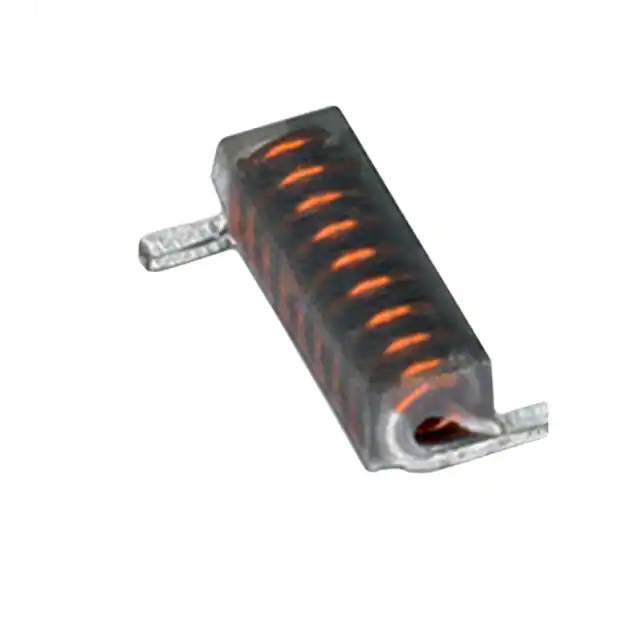

744918242FIXED IND 422NH 2.5A 60 MOHM SMD Würth Elektronik |
2,353 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 422 nH | ±5% | 2.5 A | - | Unshielded | 60mOhm Max | 100 @ 50MHz | 540MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
|
744918211FIXED IND 111NH 3.5A 15 MOHM SMD Würth Elektronik |
3,885 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 111 nH | ±5% | 3.5 A | - | Unshielded | 15mOhm Max | 100 @ 50MHz | 1.02GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
74404052082FIXED IND 8.2UH 1.7A 96.8MOHM SM Würth Elektronik |
2,637 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 1.7 A | 2.1A | Shielded | 96.8mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
