固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

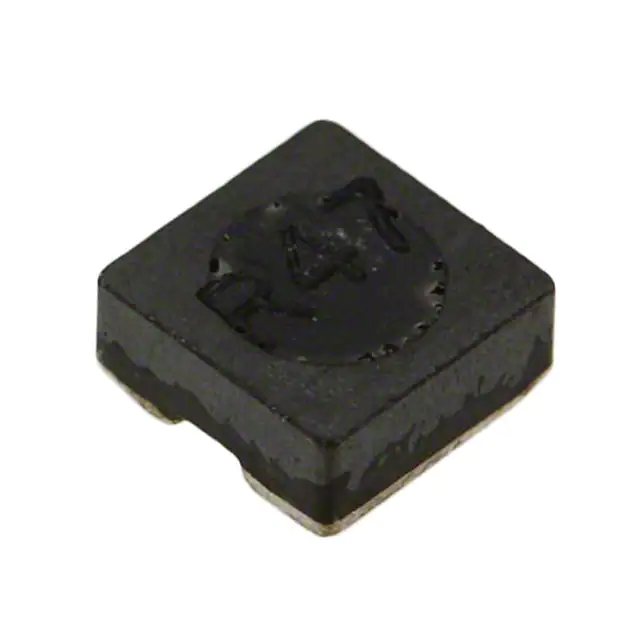

7440310047FIXED IND 470NH 3A 22 MOHM SMD Würth Elektronik |
1,675 |
|
数据手册 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±35% | 3 A | 2A | Shielded | 22mOhm Max | - | 208MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3816 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
74479787233AFIXED IND 3.3UH 1.6A 100MOHM SMD Würth Elektronik |
4,083 |
|
数据手册 |
WE-PMI | Nonstandard | Tape & Reel (TR) | Last Time Buy | Multilayer | - | 3.3 µH | ±20% | 1.6 A | 400mA | Unshielded | 100mOhm | 25 @ 1MHz | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|
74479889210FIXED IND 1UH 2A 106.25MOHM SMD Würth Elektronik |
4,085 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 2 A | - | Shielded | 106.25mOhm Max | 15 @ 1MHz | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
74477450012FIXED IND 120NH 10A 4 MOHM SMD Würth Elektronik |
3,794 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±20% | 10 A | 14A | Unshielded | 4mOhm Max | - | 250MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
|
7447745017FIXED IND 1.7UH 4A 27 MOHM SMD Würth Elektronik |
4,827 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.7 µH | ±20% | 4 A | 3.6A | Unshielded | 27mOhm Max | - | 92MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
7447745039FIXED IND 3.9UH 2.8A 54 MOHM SMD Würth Elektronik |
3,756 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 2.8 A | 2.6A | Unshielded | 54mOhm Max | - | 48MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
|
7447745076FIXED IND 7.6UH 1.9A 105MOHM SMD Würth Elektronik |
3,296 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.6 µH | ±20% | 1.9 A | 1.8A | Unshielded | 105mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
7447785127FIXED IND 27UH 900MA 360MOHM SMD Würth Elektronik |
2,794 |
|
数据手册 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±25% | 900 mA | 1A | Shielded | 360mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.130" (3.30mm) |
|
831531000FIXED IND 1UH 12A 8 MOHM SMD Würth Elektronik |
2,293 |
|
数据手册 |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 1 µH | ±20% | 12 A | 18A | Shielded | 8mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - |
|
|
831534700FIXED IND 4.7UH 5.5A 41 MOHM SMD Würth Elektronik |
4,106 |
|
数据手册 |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 5.5 A | 8A | Shielded | 41mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - |
