固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74479976215FIXED IND 1.5UH 1.6A 125MOHM SMD Würth Elektronik |
1,527 |
|
数据手册 |
WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 µH | ±20% | 1.6 A | 1.9A | Shielded | 125mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479977124FIXED IND 240NH 2.4A 43 MOHM SMD Würth Elektronik |
2,325 |
|
数据手册 |
WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 240 nH | ±20% | 2.4 A | 3.5A | Shielded | 43mOhm Max | - | 36MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.024" (0.60mm) |
|
74479776233AFIXED IND 3.3UH 1.25A 150MOHM SM Würth Elektronik |
2,045 |
|
数据手册 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.3 µH | ±20% | 1.25 A | 330mA | Shielded | 150mOhm Max | 25 @ 1MHz | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479976133FIXED IND 330NH 3.4A 23 MOHM SMD Würth Elektronik |
2,102 |
|
数据手册 |
WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 330 nH | ±20% | 3.4 A | 3.7A | Shielded | 23mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479977156FIXED IND 560NH 2.1A 80 MOHM SMD Würth Elektronik |
2,789 |
|
数据手册 |
WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 560 nH | ±20% | 2.1 A | 2.3A | Shielded | 80mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.024" (0.60mm) |
|
|
74479977182FIXED IND 820NH 2A 112 MOHM SMD Würth Elektronik |
2,638 |
|
数据手册 |
WE-PMMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 820 nH | ±20% | 2 A | 2A | Shielded | 112mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.024" (0.60mm) |
|

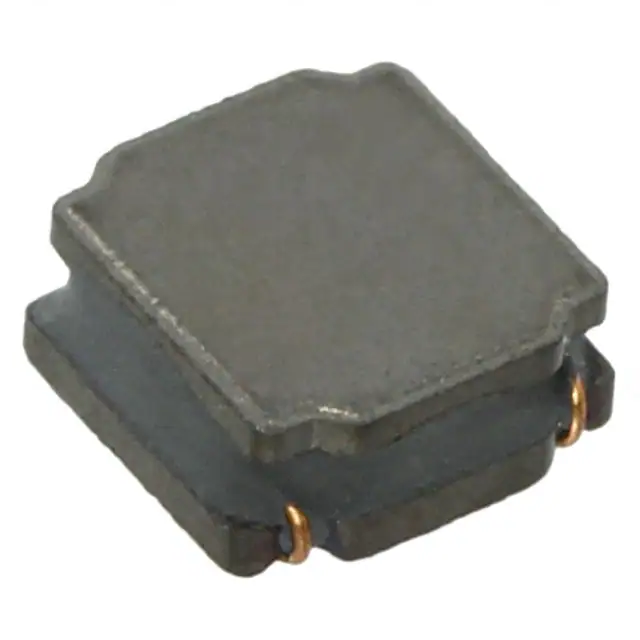

74405031010FIXED IND 1UH 2.4A 54 MOHM SMD Würth Elektronik |
1,498 |
|
数据手册 |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.4 A | 5.4A | Shielded | 54mOhm Max | - | 66MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3012 | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
7447797300FIXED IND 2.5UH 8.4A 10.2MOHM SM Würth Elektronik |
4,724 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.5 µH | ±20% | 8.4 A | 10.5A | Shielded | 10.2mOhm Max | - | 61MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
7447720820WE-TI RADIAL LEADED WIRE WOUND I Würth Elektronik |
3,113 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 82 µH | ±10% | 1.6 A | 1.7A | Unshielded | 190mOhm Max | - | 6.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
744742103WE-TI RADIAL LEADED WIRE WOUND I Würth Elektronik |
4,832 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Ferrite | 10 mH | ±5% | 150 mA | 130mA | Unshielded | 25Ohm Max | - | 430kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.315" Dia (8.00mm) | 0.394" (10.00mm) |
