固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447629033FIXED IND 3.3UH 600MA 750MOHM SM Würth Elektronik |
1,588 |
|
数据手册 |
WE-GFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 600 mA | - | Unshielded | 780mOhm Max | 20 @ 7.96MHz | 84MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|

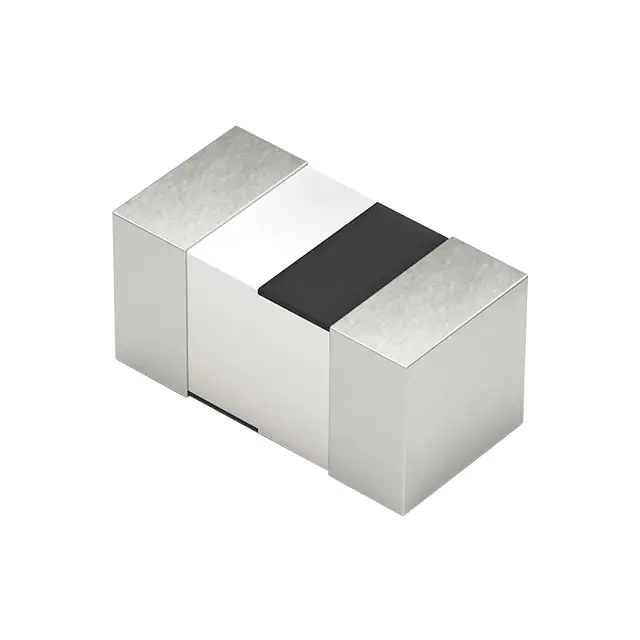

744786033FIXED IND 3.9NH 600MA 250MOHM SM Würth Elektronik |
4,720 |
|
数据手册 |
WE-MK | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 600 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 6.3GHz | - | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
74479876124CFIXED IND 240NH 3.2A 26 MOHM SMD Würth Elektronik |
1,378 |
|
数据手册 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 240 nH | ±20% | 3.2 A | 3.7A | Shielded | 26mOhm | 12 @ 1MHz | 160MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479876147CFIXED IND 470NH 2.6A 44 MOHM SMD Würth Elektronik |
3,782 |
|
数据手册 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 2.6 A | 2.6A | Shielded | 44mOhm | 13 @ 1MHz | 110MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479876168CFIXED IND 680NH 1.8A 60 MOHM SMD Würth Elektronik |
1,777 |
|
数据手册 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 680 nH | ±20% | 1.8 A | 1.7A | Shielded | 60mOhm | 18 @ 1MHz | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479876215CFIXED IND 1.5UH 1.5A 115MOHM SMD Würth Elektronik |
4,540 |
|
数据手册 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 µH | ±20% | 1.5 A | 1.5A | Shielded | 115mOhm | 15 @ 1MHz | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
74479763147AFIXED IND 470NH 1.5A 112.5 MOHM Würth Elektronik |
1,266 |
|
数据手册 |
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 470 nH | ±20% | 1.5 A | 1.5A | Unshielded | 112.5mOhm Max | 10 @ 1MHz | 190MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
.jpg)
|
74479887222CFIXED IND 2.2UH 1.6A 110MOHM SMD Würth Elektronik |
3,459 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.6 A | 1.5A | Shielded | 110mOhm | 20 @ 1MHz | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74479887210CFIXED IND 1UH 2.5A 55 MOHM SMD Würth Elektronik |
3,797 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 2.5 A | 1.9A | Shielded | 55mOhm | 17 @ 1MHz | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74479887124CFIXED IND 240NH 3.8A 24 MOHM SMD Würth Elektronik |
2,544 |
|
数据手册 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 240 nH | ±20% | 3.8 A | 5A | Shielded | 24mOhm | 15 @ 1MHz | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
