固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744771247WFIXED IND 470UH 640MA 770MOHM SM Würth Elektronik |
3,436 |
|
数据手册 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 640 mA | 800mA | Shielded | 770mOhm Max | - | 2.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.256" (6.50mm) |
|
|
74477110WFIXED IND 10UH 5A 26 MOHM SMD Würth Elektronik |
4,259 |
|
数据手册 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5 A | 5.5A | Shielded | 26mOhm Max | - | 21.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.256" (6.50mm) |
|
|
744771127WFIXED IND 27UH 2.8A 60 MOHM SMD Würth Elektronik |
1,987 |
|
数据手册 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.8 A | 3.2A | Shielded | 60mOhm Max | - | 11.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.256" (6.50mm) |
|
|
744771147WFIXED IND 47UH 2.2A 84 MOHM SMD Würth Elektronik |
4,159 |
|
数据手册 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.2 A | 2.6A | Shielded | 84mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.256" (6.50mm) |
|

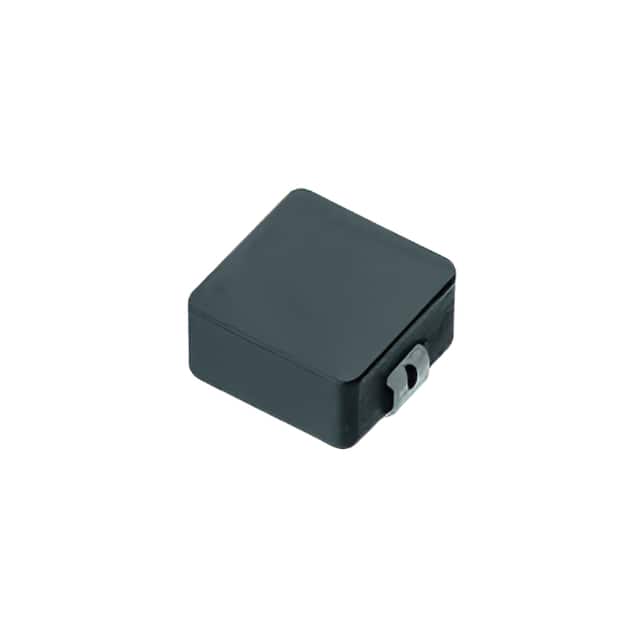

744373680068FIXED IND 680NH 16A 0.0027OHM SM Würth Elektronik |
4,249 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 680 nH | ±20% | 16 A | 58.3A | Shielded | 2.7mOhm Max | - | 53MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
7447798301FIXED IND 27UH 4.3A 42.5MOHM SMD Würth Elektronik |
3,240 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 27 µH | ±20% | 4.3 A | 3.1A | Shielded | 42.5mOhm Max | - | 15MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
784774003FIXED IND 330NH 10.8A 8 MOHM SMD Würth Elektronik |
2,120 |
|
数据手册 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 10.8 A | 15.3A | Unshielded | 8mOhm Max | - | 295MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
7447471010WE-TIS SHIELDED RADIAL LEADED WI Würth Elektronik |
1,816 |
|
数据手册 |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1 µH | ±20% | 10.5 A | 22A | Shielded | 8mOhm Max | - | 155MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|

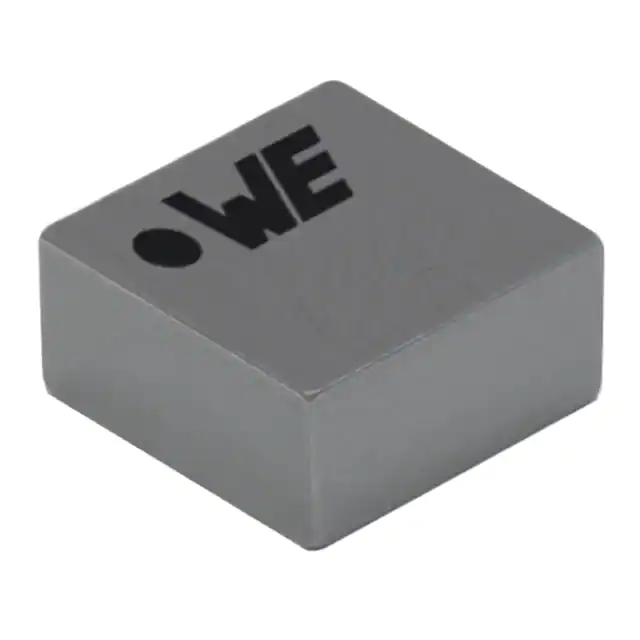

744383560033HTFIXED IND 330NH 9.9A 7.5MOHM SMD Würth Elektronik |
3,488 |
|
数据手册 |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 330 nH | ±30% | 9.9 A | 11A | Shielded | 7.5mOhm Max | - | 98MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
78477010FIXED IND 1UH 8.3A 9 MOHM SMD Würth Elektronik |
3,411 |
|
数据手册 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1 µH | ±20% | 8.3 A | 22A | Shielded | 9mOhm Max | - | 144.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
